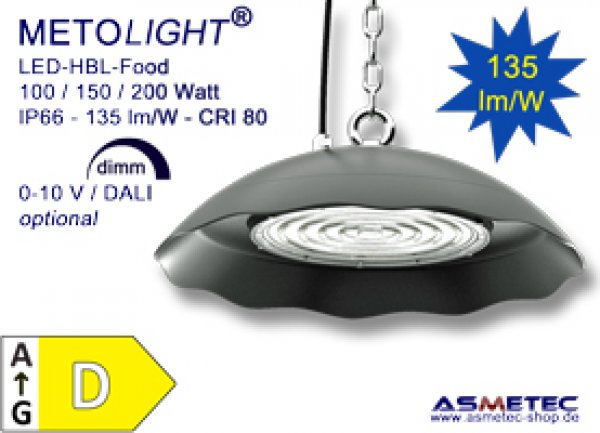

METOLIGHT HBL-UFO-Food-150-NW90, 150 Watt, nature white, 90° beam
Compact Hibay-Light, IP66, Beam Angle 90°, 20000 lm,
The new design of our high bay light series UFO-Food combines highly efficient Philips SMD LEDs 135 lm/W, Meanwell LED driver, IP protection class IP66 (dust-proof, hose-proof) in a very compact cast aluminum housing with exchangeable PMMA Fresnel lens. The beam angle can be changed simply by changing the lens, which is available in 60 / 90 (Standard) / 120 degree light beam. The new-style Fresnel Lens can flexibly cover any quantity of LEDs, suitable for diverse PCB board layout, so as to achieve higher lumen output and meet different customers’ requirements, but ordinary lens has no such flexibility.
This highbay liuminaire is designed to be used for super high safety performance without glass and exposed screws, which avoids dropping glass fragments or screws into food or machinery. Smooth body with seamless design would greatly diminish dust and water accumulation, as well, makes cleaning work easily. IP 66 waterproof, corrosion-resistant and antiaging. It’s a perfect solution for food-processing application to be hosed down frequently for cleaning
The light beam is approximately 90° ideal for mounting heights of 3-6 m. This Luminaire can replace a 300W HQI lamp in many cases.
The newly developed Meanwell LED driver corresponds to the IP class IP66, is at power factor Pf> 0.93 and belongs to the best power supplies available. It is easy to replace in case of damage. The LED-PCB can be easily replaced by an electrical technician.

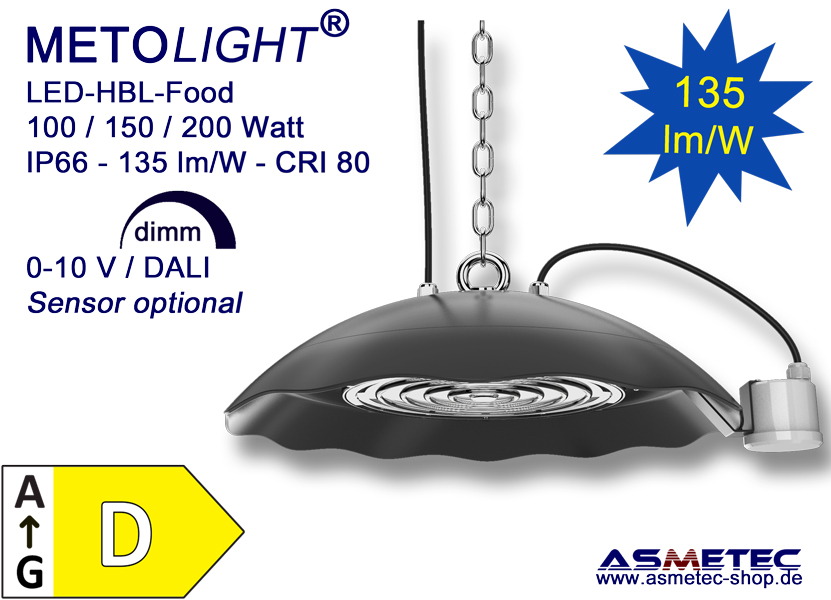

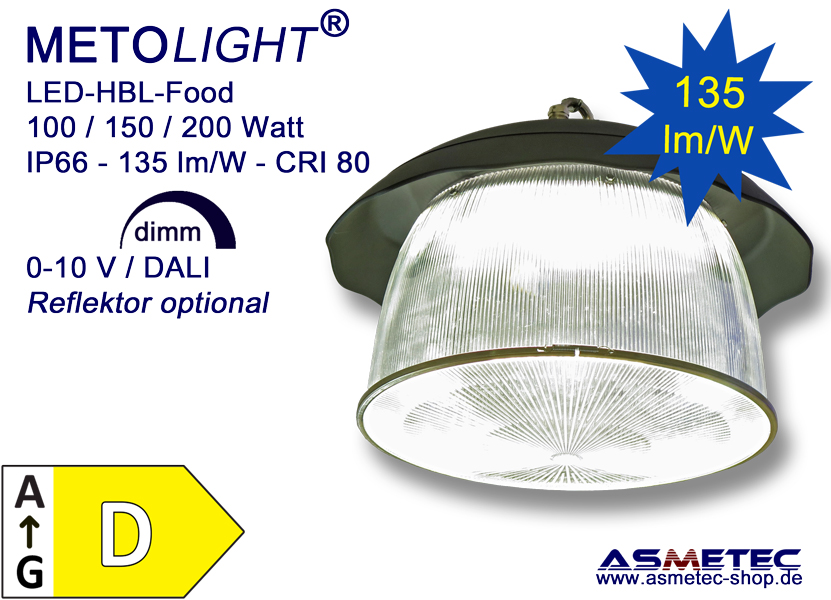

Installation is simple with steel rope or chain with carabiner for hooking into the supplied eyebolt. Optionally, this luminaire can be delivered with a transparent PMMA reflector to increase the amount of indirect light - commonly used in supermarket lighting. Also a motion sensor can be attached. Finally the driver is also available for 0-10V / DALI dimming.
Applications:
Lighting in warehouses, food packing, medical packing, assembly halls, work areas, sales halls, supermarkets, shopping malls, sports halls
Dimensions:

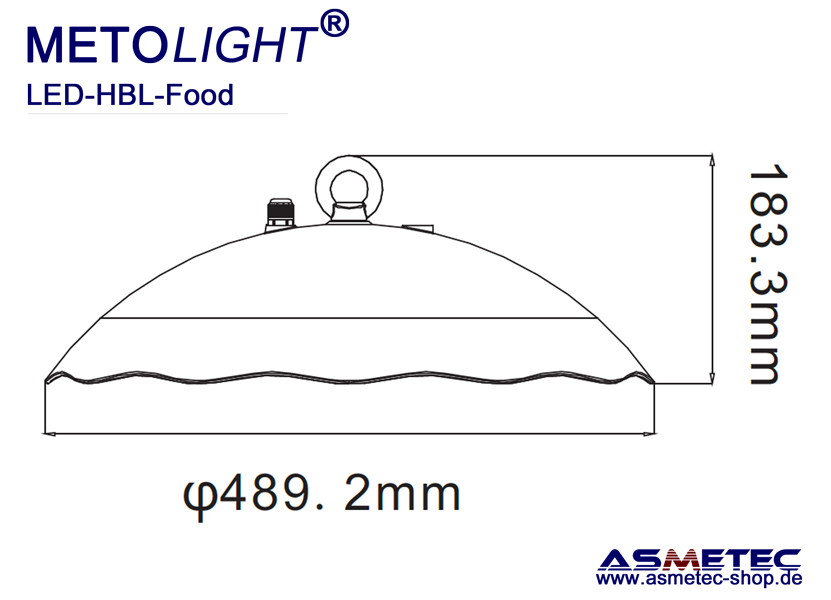

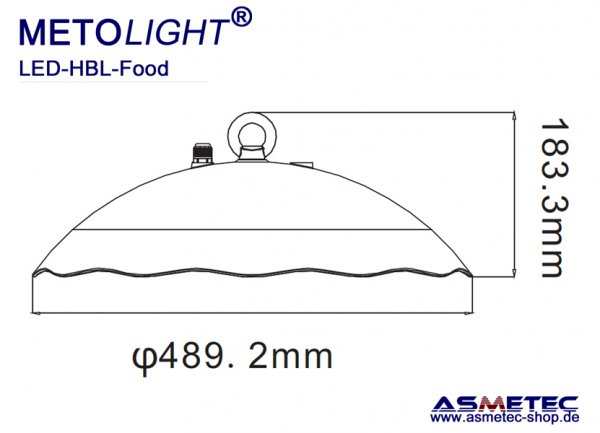

Diameter: 489 mm, height 183 mm (incl. hook)
Weight approx 5,5 kg
Main Technical Data:
Voltage range: 180-255 VAC
Power consumption: 152 W
Energy Class D
Light color: 3800-4500K (optional 5800-6500K or 3000-3500K)
CRI Ra> 80
Luminous flux> 20000lm
Nominal service life: 30,000 hours
We offer 5 years limited warranty (see warranty conditions).
Special versions (other CCT, beam angle, wall bracket, frosted glass etc) are available upon request ad additional charge. please contact us for more details.
| Beschreibung | Daten / Data | Description |
| Markenname | METOLIGHT | Brand name |
| Modell | LED-HBL-UFO-Food-150-NW90 | Model |
| EAN-Nummer | EAN 4251192835635 | EAN-code |
| Betriebsspannung | 180 - 255 V AC / 50/60 Hz | Input Voltage |
| Gesamtleistung | 155 Watt | Input Power |
| Leistungsfaktor | Pf > 0,95 | Power factor |
| El. Schutzklasse | I | El. Protection Class |
| IP Schutzart | IP66 | IP Class |
| Dimmbar? | nein / no | Dimmable? |
| Lichtquelle | LED-SMD 3030 Philips Lumileds | Light Source |
| Energieklasse | D | Energy Class |
| auf einer Skala von A (sehr effizient) bis G (wenig effizient) / on scale of A (high efficient) to G (less efficient) | ||
| EEI-Faktor | 0,12 | EEI-Factor |
| Photobiolog. Klasse | 1 | Photobiolog. Class |
| Lichtwinkel | 90° | Beam Angle |
| Lichteffizienz | 135 lm/W | Light Efficacy |
| Warmweiss | 2800 - 3500K - 18500 lm | Warm White |
| Neutralweiss | 3800 - 4500K - 20000 lm | Nature White |
| Kaltweiß | 5800 - 6500K - 21000 lm | Cold White |
| CRI | Ra > 80 | CRI |
| LED-Lebensdauer | 50.000 h | LED-Life |
| Schaltzyklen (ein/aus) | > 120.000 | Switch Cycles (on/off) |
| Betriebsbereich | -10 ~ + 50°C - 10-90%rH | Environment |
| Abmessungen | 489 mm Durchmesser /Diameter x 184 mm Höhe / Height | Sizes |
| Gehäuse | Alu-Guss, PMMA / cast aluminium, PMMA | Housing |
| Gewicht | 5,5 kg | Weight |
| Weitere Infos | Bitte lesen Sie das technische Datenblatt - Please read the technical data sheet | More information |
| Entspricht | CE, RoHS, 98/11/EC | Complies |
| Normen | EN 50581:2012, EN55015:2013, EN60598-1:2015, EN60598-2-2:2012, EN60968:1990, EN60969, EN61000-3-2:2014, EN61000-3-3:2013, EN 61547:2013, EN61000-4-6:2014, EMC 2014/30/EU, RoHS 2011/65/EU | Standards |
| Hinweise | Notes |
| Verwendungszweck | Application |
| LED-Leuchte für allg. Beleuchtungsaufgaben im industriellen oder gewerblichen Bereich mit fester Installation. | LED-luminaire for common lighting applicaions in industrial and commercial areas with fixed installation. |
| Besonderheiten | Specials |
| Kompaktes Alu-Gußgehäuse mit LED-SMD mit hoher Effizienz und Farbwiedergabetreue, IP65, gekapseltes Netzteil, kurzschlußfest mit Übertemperatursicherung, getemperte Glasfront | Compact cast aluminium housing with LED-SMD, high effficacy and CCT, IP65, encapsuled driver, short break protected and over temperature protected, tempered glass front |
| Installation | Installation |
| Montage über Stahlseil oder Kette mit Karabiner, elektrischer Anschluß über 3 x 1,5 mm², Schutzerdung. Betrieb an Sensoren möglich, nicht jedoch an Dimmern. Elektroinstallation nur durch Elektrofachkraft. Allg. Sicherheitsvorschriften beim Umgang mit Elektrizität beachten. Anschluß nur an spannungsfrei geschalteter Zuleitung vornehmen. | Mounting via steel rope or chain and carabiner hook, electrical connnection by 3 x 1,5 sqmm cable, earthed. Can be connected to sensor switches but to to dimmers. Electrical installation only by electrician, watching common rules when handling with electricity. Connection only while line is powered off |
| Hinweise | Notes |
| Wie bei allen LED-Leuchtmitteln ist auf ausreichende Luftzirkulation zu achten, damit die LED-Lampe nicht überhitzt. Die Gesamtenergieeffizienz und Lichtverteilung dieses LED-Leuchtmittels wird von der Bauart der Lichtanlage bestimmt, in der es verwendet wird. Messdaten unterliegen üblichen Toleranzen. Daten gem. Asmetec-Labor bzw. nach Werksangaben sowie. EU 874/2012, 2010//30/EU, 2011/65/EU | As with all LED-Lights take care for sufficient air ventilation to prevent LED overheating. The total efficiency and light distribution of this LED depends on the structure of the luminaire where it is used in. Technical data subject common tolerances. Measure data acc. Asmetec Test lab or original manufacturer data and acc. EU 874/2012, 2010//30/EU, 2011/65/EU |
| Entsorgung | Waste Treatment |
| LED-Leuchten enthalten Wertstoffe. Bitte geben Sie die Lampen nach Gebrauch beim Wertstoffhof ab oder senden Sie sie an Asmetec zum Recycling zurück. | LED-luminaires contain valuable raw materials. Please dispose them after use at the Local Court of Value Materials or return them for free disposal to Asmetec. |
| Prüfberichte | Test Reports |
| Individuelle Prüfberichte zu colorimetrischen, photometrischen und elektrischen, elektromagnetischen Daten erstellen wir auf Wunsch im eigenen Labor. | Individual test reports for colorimetric, photometric, electrical and electromagnetical data upon request made in own lab. |
| Technische Daten | Technical Data |
| Technische Daten können ohne Vorankündigung geändert werden, wenn sie zur Produktverbesserung dienen. Bitte beachten Sie unsere technischen Datenblätter zu den einzelnen Produkten. | Technical data are subject to change without prior notice to improve the product. Please note our technical data sheets provided for each product. |
| Lichttechnische Daten | Light technical Data |
| Aktuelle lichttechnische Daten aus der Messung im Spektrometer sowie Lichtverteilungskurven aus der Messung im Goniophotometer zur Verwendung in Lichtberechnungsprogrammen wie Dialux, Relux oder anderen senden wir Ihnen auf Anfrage gerne zu | latest light test reports measured in our spectrometer and light distribution curves measured in our goniophotometer to be used in light calculation programs such as Dialux, Relux and others are available upon request |
