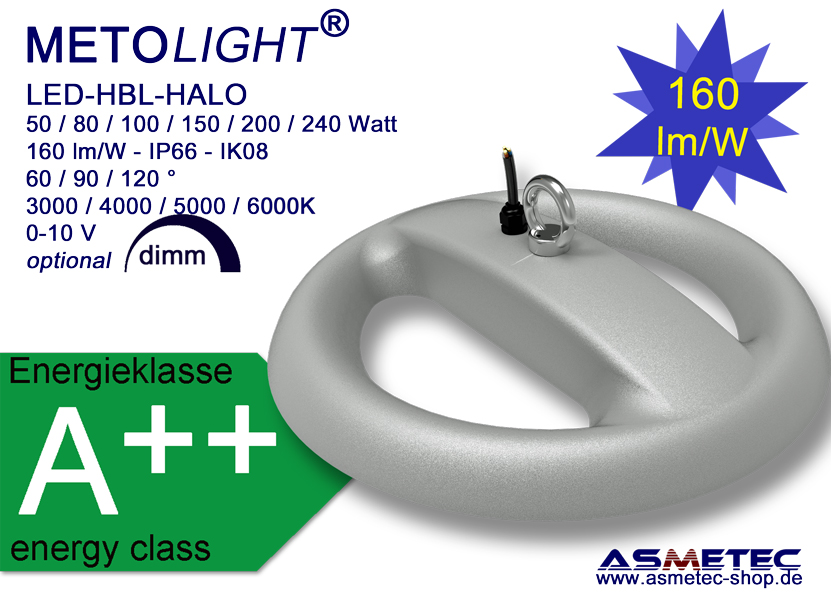

METOLIGHT Highbay Light HBL-Halo-150-CW-120, 150 Watt, cold white, 160 lm/W
Compact Hibay-Light, IP66, Beam Angle 120°, 24000 lm

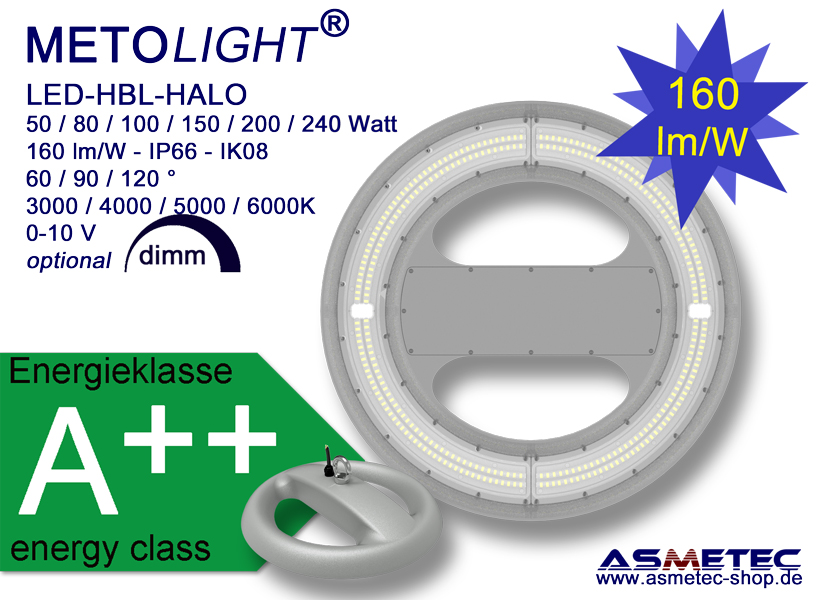

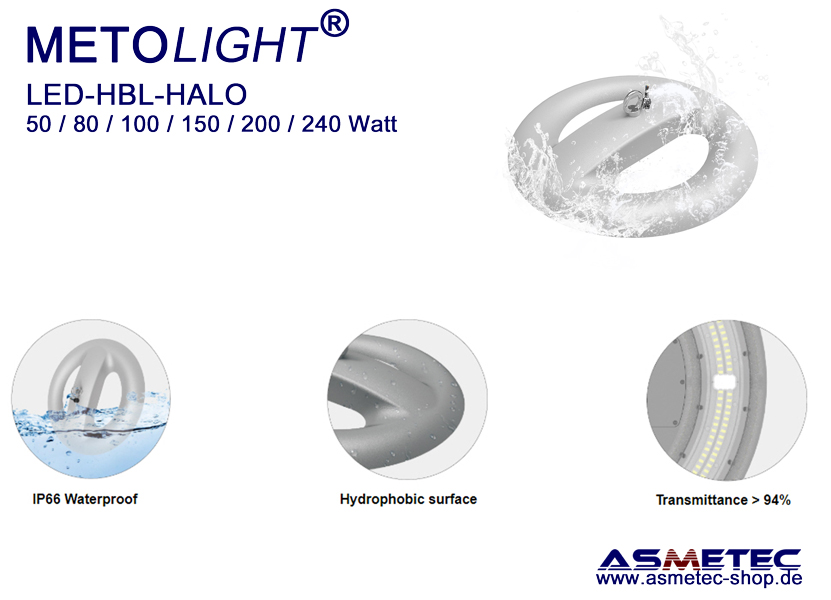

The new design of our high bay light series HBL-Halo combines highly efficient Philips SMD LEDs with 160 lm/W, CRI Ra>80, Meanwell LED driver, IP protection class IP66 (dust-proof, hose-proof) in a very compact cast aluminum housing with tempered front glass protection.
The light beam is approximately 120° ideal for mounting heights of 4-8 m. Optionally luminaire can be supllied with narrower light beams (60 ° / 90 °), which can be useful when mounting above 8 m since the emitted light then on a lower surface is much brighter. The narrower light beam can be achieved through mounted LED lenses, rather than by additional reflectors, which would significantly increase the overall height of this compact luminaires.
The clear front glass can be replaced by a hardened frosted glass so this hibay luminaire is ideal for lighting in shopping malls, supermarkets etc. The Philips SMD 3030 have an efficiency of about 160 lm / W and thus the energy class corresponds to A++ (new energy class from 2021 is class A)

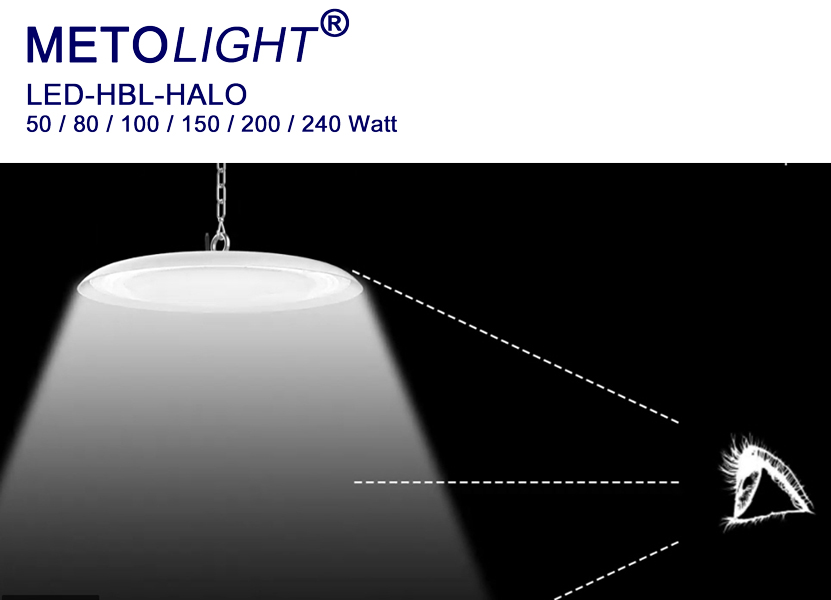

The brightness perceived by the human eye brightness is about 36,000 PLM (Pupil Lumen). This Luminaire is brighter than a 400W HQI.
The newly developed Meanwell LED driver corresponds to the IP class IP66, is at power factor Pf> 0.97 and belongs to the best power supplies available. It is easy to replace in case of damage. The LED-PCB can be easily replaced by Asmetec.

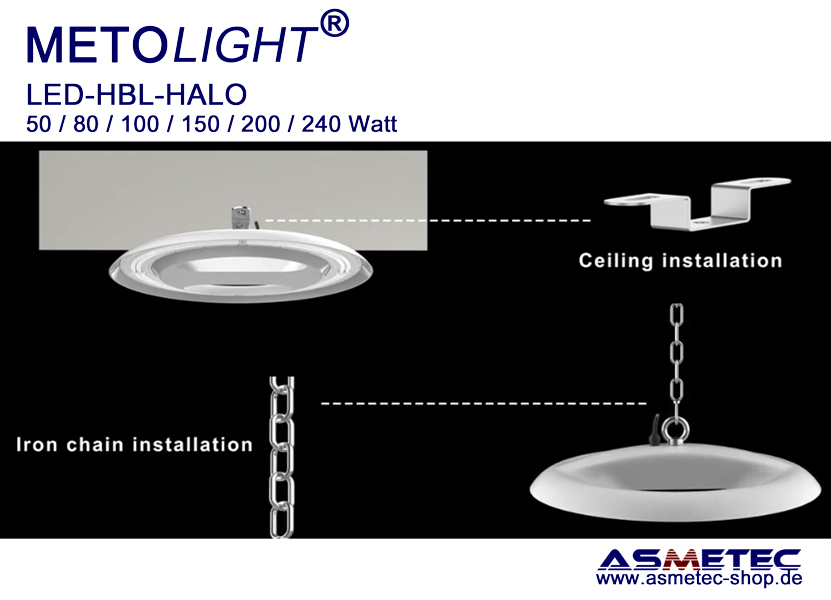

Installation is simple with steel rope or chain with carabiner for hooking into the supplied eyebolt. Optionally, this luminaire can be delivered with mounting brackets as well, which offers a direct ceiling or wall mounting with fixed adjustable angles. This type of mounting is ideal, for example, in sports halls.
Variations:
The highbay luminaire is available in these versions:
Power: 50 / 80 / 100 / 150 / 200 / 240 Watt
Light colour: 3000K / 4000K / 5000K / 6000K
Beam angle:60° / 90° / 120°
If interested in this luminaire: please ask for our detailed data sheet and our project offer by email
Data sheet METOLIGHT HBL-Halo
Applications:
Lighting in warehouses, assembly halls, work areas, covered loading ramps
Sales halls, supermarkets, shopping malls, sports halls
Dimensions:
Diameter: 380 mm, height 120 mm (without hook)
Weight approx 6.5 kg
Main Technical Data:
Voltage range: 180-255 VAC
Power consumption: 155 W
Energy Class A++
Light color: 6000-6500K (optional 4000-4500K or 3000-3500K)
CRI Ra> 80
Luminous flux> 24000lm (cool white)
Nominal service life: 30,000 hours
Warranty:
We offer a 3 years limited warranty on this highbay light. (see warranty conditions)
