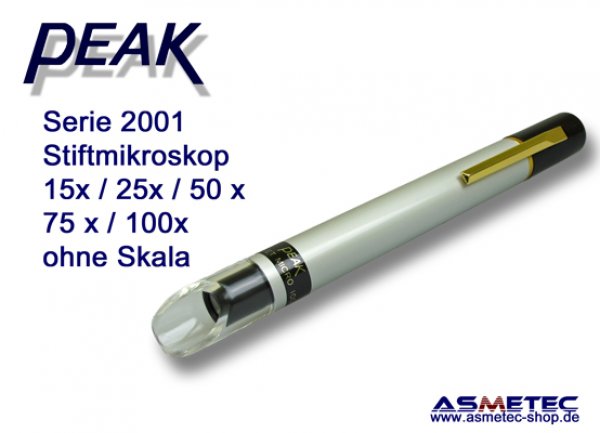

PEAK-Optics 2001-100, Pen microscope 100x
PEAK 2001-100 Pocket Microscope, 100x
pen microscope, high resolution
The PEAK 2001 series is available with magnification factors of 15x, 25x, 50x, 75x and 100x.

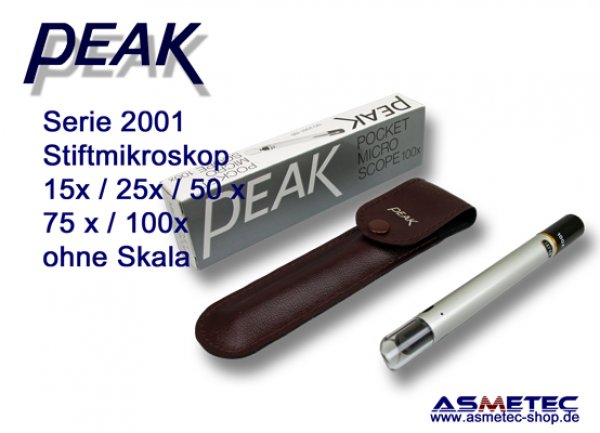

The microscope can be focussed by setting it down on the screw-on acrylic tip. Pivoting around the set-down point focuses the measuring point. Representation in ocular is a mirror image. The diameter of only 12.4 millimetres allows inspection at points where other microscopes have no chance. The high luminosity lenses require no further illumination. Synthetic leather case included.
Accessories and spare parts:
Spare parts for microscopes you can find here:
USB-camera 1008XS is available to turn this microscope into a video microscope.
Magnification: 100x
Field of view: 0,84 mm
Focus: via set point angle
Scale: none
Optic: aplanat, distortion free
Sizes: 12,4 x 124 mm (diameter x length)
Weight: 12 Gramm
Technical Data
| Beschreibung | Daten / Data | Description |
| Markenname | PEAK | Brand name |
| Modell | 2001-100 | Model |
| Vergrößerung | 100x | Magnification |
| Fokussierbar | über Aufsetzwinkel - via set point angle | Focussable |
| Linsenart | Glas | Lens type |
| Sichtfeld | 0,084 mm | Field of view |
| verzeichnungsfrei - distortion free | ||
| Skala | nein - no | Scale |
| Lupenkörper | Aluminium | Lupe Body |
| Abmessung | 12,4 x 124 mm | Sizes |
| Gewicht | 12 gr | Weight |
| Toleranz techn. Daten | +/- 10% | Tolerance techn. Data |
| Skalen | - | Scales |
| Hinweis | Mit Mikroskopen niemals in das Sonnenlicht blicken, Gefahr der Augenverletzung, Mikroskope nicht unbeaufsichtigt im Tageslicht liegen lassen, Brandgefahr - Do not look into sun with magnifier - eyes may be injured, don't leave magnifier unattended in daylight - risk of catching fire | Notes |
