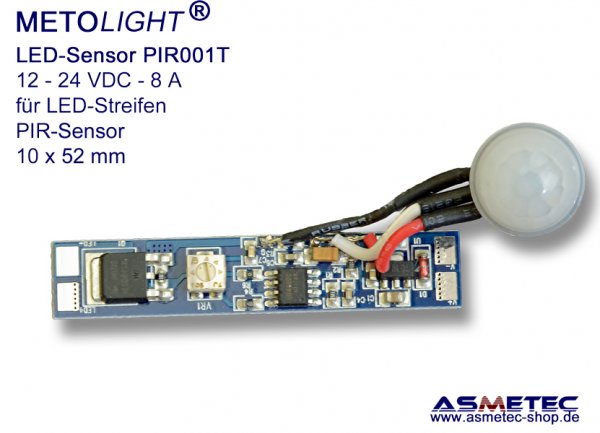

METOLIGHT PIR001T - Motion Switch, 12-24 VDC, 8 A, for LED-Strips, adjustable
METOLIGHT PIR001T - Motion Switch - Sensor
for installation in aluminium profiles for LED-strips 12/24 VDC - 8A, max. 192 Watts
Newly developed PIR sensor for switching LED strips. The integrated PIR motion sensor detects ambient heat differences of up to approx. 2 m and switches on the connected LED strips. A small rotary switch can be used to set the switch-off time after motion detection between 6 seconds and approx. 70 seconds. The small printed circuit board can be accommodated in all common aluminum profiles for LED strips with at least 10 mm clear width. The PIR sensor is guided from the inside to the outside via a hole in the cover profile of the aluminum profile and is used for example. fixed with glue.Advantages:
- Automatic switching during motion detection
- Infrared motion detection
- Range approx. 2 m
- Compact dimensions 10 x 57 mm
- Input voltage 12 VDC - 24 VDC
- For LED strips / LED lamps 12 VDC or 24 VDC
- Installation inside the LED Aluminium profile
- Maximum switching current: 8A
- Maximum load at 12 VDC: 96 watts
- Maximum load at 24 VDC: 192 watts
- Decay time: adjustablke 6 - 70 sec
- Detection angle: 150 ° (wall mounting) / 360 ° (ceiling mounting)
- Detection range: 2 m max.
- Mounting height: 3 m max
- Motion detection: 0.5 ~ 3 m / s
- Dimensions: 10 x 57 mm (D x H)
