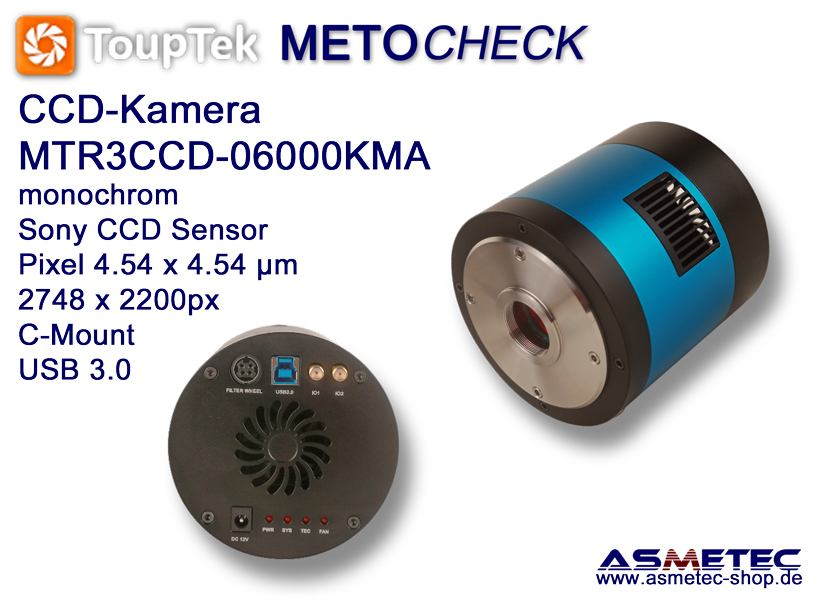

USB-Camera Touptek MTR3CCD-06000KMA, USB 3.0, 6 Mp, CCD sensor, monochrome
Touptek-MTR3CCD-06000KMA, USB 3.0, 6 Mp, CCD sensor, monochrome
METOCHECK edition with tightest tolerances, comes with Asmetec accessories
OEM-No. ToupCam MTR3CCD06000KMA
The Touptek USB camera with C-mount thread (ISO 10935: 1996) is a simple and high-quality method to upgrade microscopes and telescopes into digital systems. The USB camera replaces or supplements the standard eyepiece of a microscope. The supplied software with a English user interface enables measurements (lengths, areas, angles, circles, etc.) and image comments, single images and film recordings - ideal for quality control and assurance, use as teaching aids, for demonstration purposes and presentations, school, hobby and job.
The integrated Sony CCD sensor ICX694ALG-M - 1" (12.48 x 9.99 mm) with greatly improved image geometry, contrast and sensitivity shows even edge areas absolutely sharp with a pixel size of 4.54 µm x 4.54 µm. Data transfer via USB 3.0.MTR3CCD camera adopts Sony Exview HAD CCD II sensor as the image-picking device with two-stage peltier cooling sensor chip to -40 degree below ambient temperature. This will greatly increase the signal to noise ratio and decrease the image noise. Smart structure is designed to assure the heat radiation efficiency and avoid the moisture problem. Electric fan is used to increase the heat radiation spee;
Windows (from XP), Linux, Android and MacOS are suitable as operating systems for the supplied software. The camera is supplied with energy via the supplied 12 V power adapter.
Optionally, a plurality of adapters for brands microscopes (for example, Nikon, Olympus, Leica, Huvitz etc.) is available, including those for eyepiece 23.2 mm. Hereby, this camera can also be used instead of the eyepiece in small microscopes such as Peak can be used 2034/2054/2064 or METOCHECK YM7504 Series.
Camera adapters you can find here We recommend adapter 1.0x
Benefits:
- Standard C-Mount camera with SONY ExView HAD CCD II sensors from 1.4M to 12M
- Two-stage TE-cooling with controllable electric fan
- Sensor chip cooling up to 40°C below ambient temperature
- Working temperature can be regulated to specified temperature in 5 minutes
- Smart structure to assure the heat radiation efficiency and avoid the moisture problem
- IR-CUT/AR coated windows
- Up to 1-hour long time exposure
- USB3.0 5Gbit/second interface ensuring high speed data transmission
- Ultra-Fine TM color engine with perfect color reproduction capability
- With advanced video & image processing application ToupView
- Support both video and trigger modes
- Providing Windows/Linux/Mac OS multiple platforms SDK
- Native C/C++, C#/VB.NET, DirectShow, Twain control
The complete carefree package - only available at Asmetec:
Each camera ist tested prior shipping inhouse at Asmetec.
Detailed installation guide
Detailed manual how to use the software
free after sale service
Main technical data:
Sensor: Sony ICX694ALG-M, CCD, 1"
USB-Port 3.0
G-Sensivity: 1000 mV - 1/30 s
Dark signal: 8 mV - 1/30 s
FPS resolution: 7,5 fps - 2748 x 2200, 14 fps - 2748 x 1092
Exposure: 0.06 ms ~ 1 h
Pixel size: 4.54 x 4.54 µm
Binning: 1x1, 2x2
Power supply: 12V / 3 A
PC-System: Windows/Linux/Mac OS multiple platforms SDK

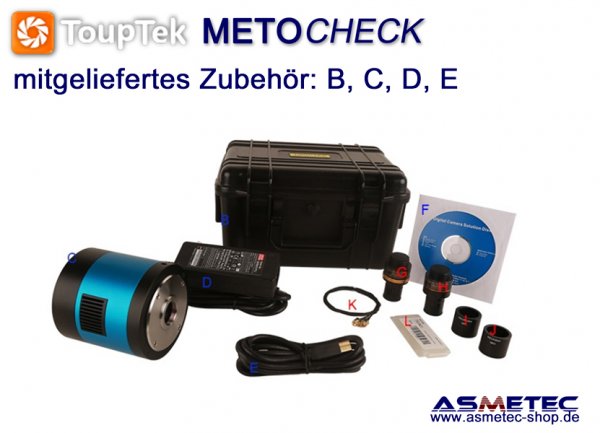

Scope of delivery:
USB-Camera with C-Mount
Power adapter 12 VDC
USB-cable
Software on CD
Technical Data
| Beschreibung | Daten / Data | Description |
| Markenname | Touptek | Brand name |
| Modell | MTR3CCD-06000KMA, monochrom | Model |
| Gewinde | C-Mount | Thread |
| USB | USB 3.0 | USB |
| Pixel | 2748 x 2200 | Pixel |
| Pixelgröße | 4.54 x 4.54 µm | Pixel size |
| Sensor | Sony CCD ICX694ALG-M | Sensor |
| Sensor Größe | 1" - 12.48 x 9.99 mm | Sensor size |
| G-Empfindlichkeit | 1000mv with 1/30s | G-Sensivity |
| Dunkelsignal | 8 mv with 1/30s | Dark signal |
| FPS | 7.5 - 2748x2200 / 14 - 2748x1092 | FPS |
| Binning | 1x1, 2x2 | Binning |
| Belichtung | 0.06 ms ~ 1 h | Exposure |
| Spekralbereich | 380 - 650 nm (mit IR-Filter) | Spectral range |
| Weißabgleich | ROI / Manuell / Temt-Tint | Whie balance |
| Capture | Native C/C++, C#, Directshow, Twain, Labview | Capture |
| Aufnahme | Einzelbild, Film - still picture, movie | Recording |
| Kühlung | Umgebungsluft | Cooling |
| Betriebsbereich | -10~+50°C, 30-80% rH | Operating environment |
| Lagerbereich | -20~+60°C, 10-60% rH | Storage |
| Spannungsversorgung | 12VDC via power adapter | Power supply |

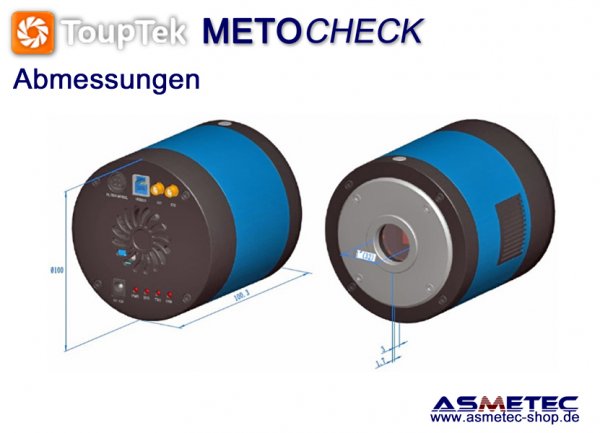

| Abmessungen | 100 mm Durchmesser/diameter x 100 mm hoch / height | Sizes |
| Betriebssystem | Microsoft Windows ab XP ~ Win10, (Mac OS X), Linux, Android | Operating system |
| PC-Anforderungen | CPU > 2.8 GHz, USB 2.0, Monitor > 17", CD-Rom | PC-Requirement |
| Toleranz techn. Daten | +/- 10% | Tolerance techn. Data |
| Vergrößerung | Elektronische Vergrößerung = Pixels des Monitors/ Pixel des Sensors, Optische Vergrößerung = Objektivvergrößerung x Reduktionslinse, Systemvergrößerung = elektronische x optische Vergrößerung - Electronic magnification= pixels of full screen monitor/ pixel of sensor, Optical magnification= objective magnification x reduction lens magnificaion, system magnification = elextronic x optical maginification | Magnification |
| Hinweis | Die tatsächliche Vergrößerung ist abhängig von vorhandenen Objektiven, Adaptern, Abständen und der Monitorgröße - The magnification is determined by used objectives, adapters, distances and monitor size. | Notes |
| Technische Daten | basieren auf Herstellerangaben, können ohne Voranzeige geändert werden, Irrtum vorbehalten - based on manufacturers data, may be changed without prior notice, Errors and omissions excepted | Technical data |
