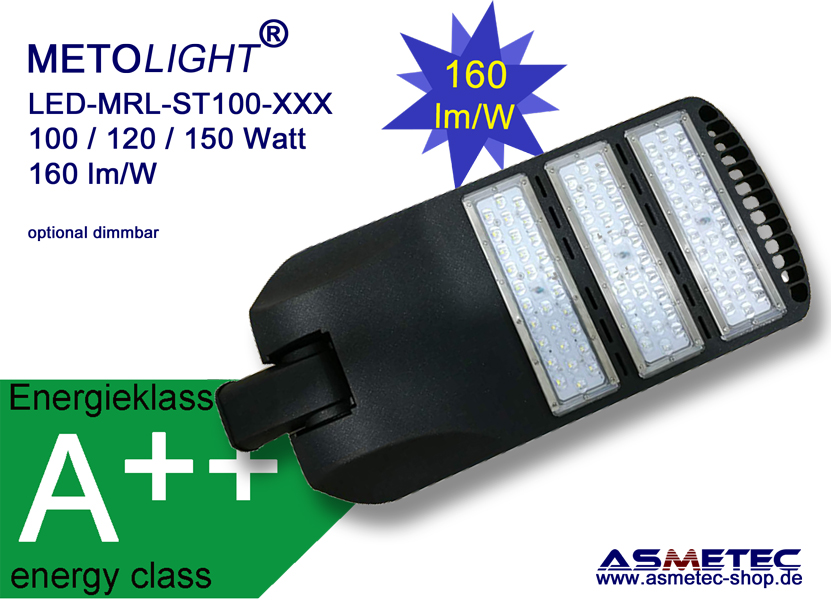

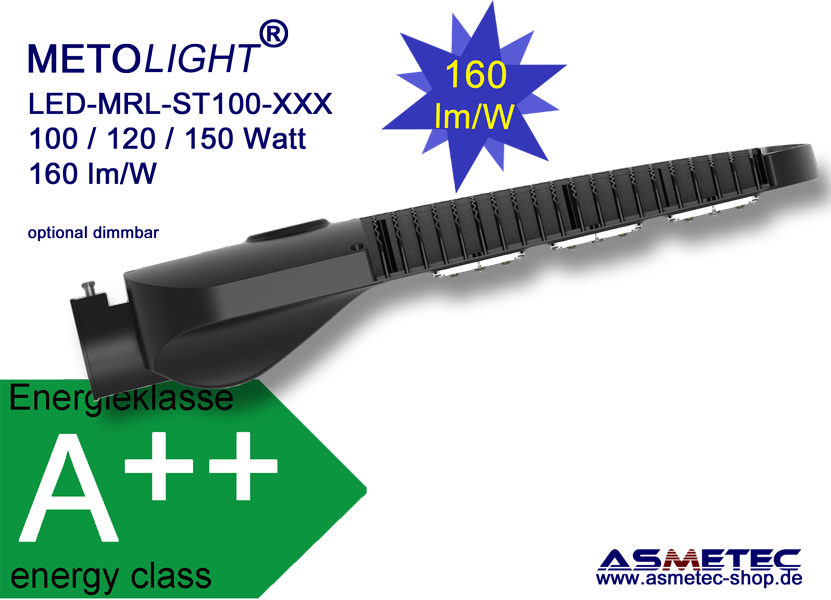

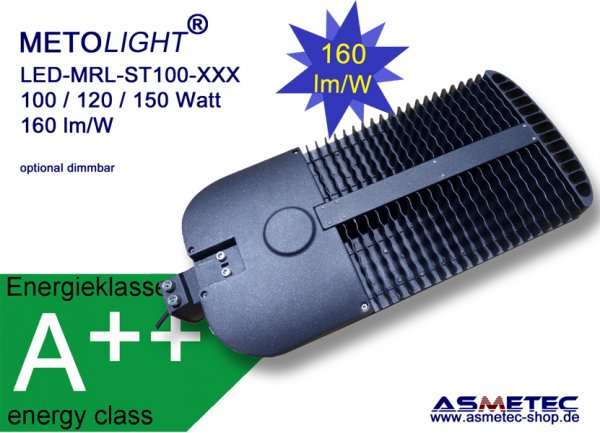

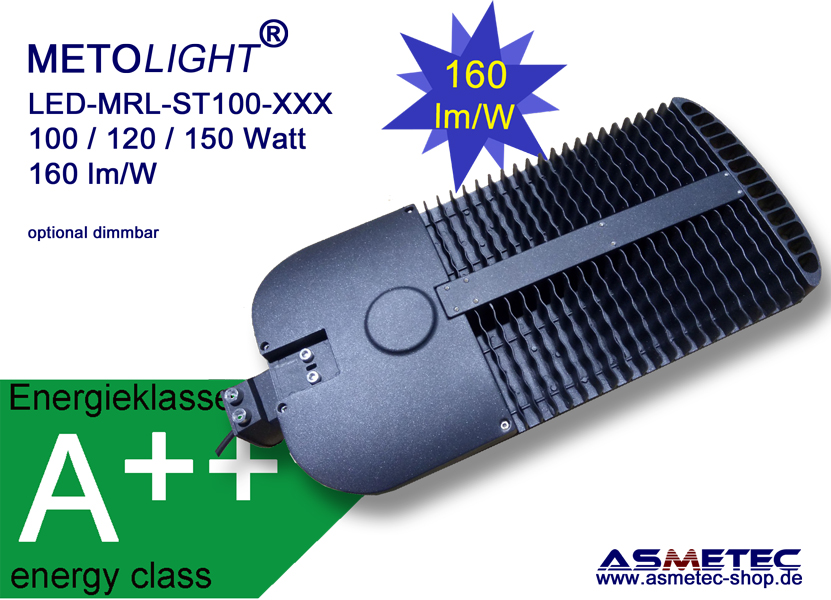

METOLIGHT LED Street Light MRL-ST-10150, 150 Watt, IP65, 24000 lm, nature white
HiPower LED Street Light head with Philips Luxeon High efficacy SMD 160 lm/W, light beam 65 x 150°
This LED luminaire is an ideal replacement for HQI / HQL lighting fixtures in the area of street or place lighting. The luminaire heads are simply attached to existing pole brackets with a diameter of 63 mm. For other brackets, we supply matching adapters.
The modular street light is equipped with highly efficient Luxeon LEDs with 160 lm/W at CRI Ra> 70. Optionally available with CRI Ra> 80. The integrated power supply of Meanwell (HLG series) is extremely robust and can be operated in the wide voltage range of 100-277 VAC. Integrated protection circuits against overvoltage, overtemperature, overload ensure trouble-free operation for years.
The very compact housing with the dimensions 642 x 290 x 120 mm made of die-cast aluminum is black powder-coated, on request other RAL colors are possible.
The light color is naturel white, 4000K, (standard) but this light is also available in warm white (3000K) and cold white (6000K). The electrical connection is directly to 230 VAC 50 / 60Hz. Existing ballasts must be removed. Optionally this street light can be equipped with a smart daylight sensor.
The LED light attracts insects much less than UV-emitting high-pressure lamps. Compared to high-pressure lamps, METOLIGHT MRL luminaires save up to 70% of energy and provide a true-to-light, flicker-free light, which is also free of UV radiation (unlike mercury vapor lamps).
The typical life time (L70B10-Life) is 50,000 operating hours.
The luminaire corresponds to LM80, CE, UL.
This light can also be supplied with daylight and motion sensors as well as in various housing colors.
Technical specifications:
Power consumption: 150 watts
Input voltage 230 V AC 50/60 HZ (maximum range 100-277 VAC)
Protection class I, IK08, IP65
Luminous flux 24000 lm (6000K)
Efficiency: 160 lm / W CRI Ra> 70

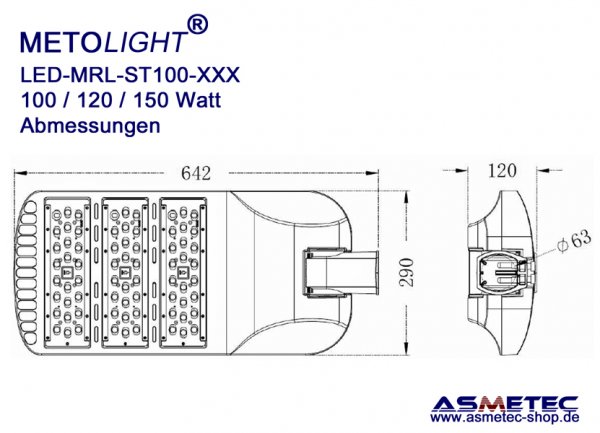

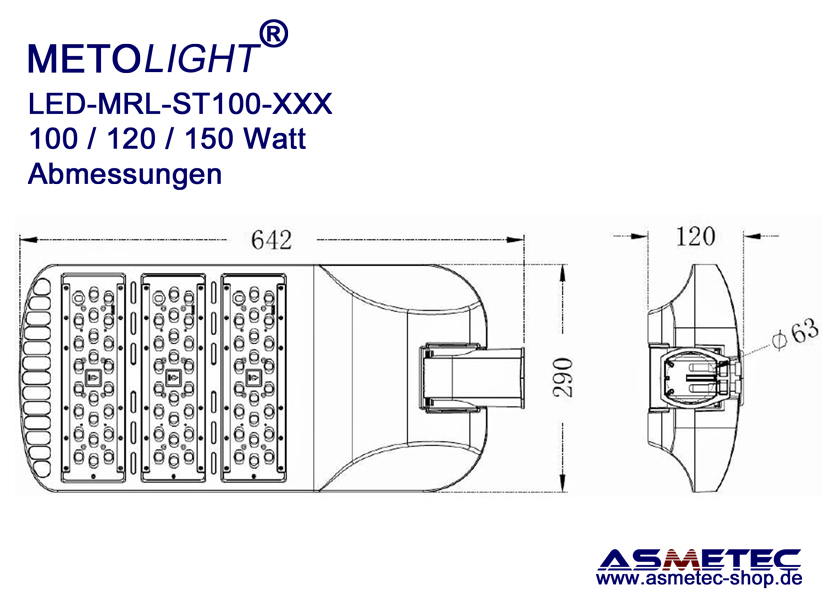

Dimensions: 642 x 290 x 120 mm
Weight 6,8 kg
Bracket size 63 mm
Same lamp body shape is also available as street lamp and cable-pendand lamp
Applications:
Replacement of old MH-lantern tops
Car Park Lighting
Street lighting
Garden Lighting
Please ask for detailed technical data sheets, IES-files and special project price simply by email to info@asmetec.de
| Beschreibung | Daten / Data | Description |
| Markenname | METOLIGHT | Brand name |
| Modell | LED-MRL-ST10150 | Model |
| Betriebsspannung | 100 - 277 V AC / 50/60 Hz | Input Voltage |
| Gesamtleistung | 150 Watt | Input Power |
| Leistungsfaktor | Pf > 0,98 | Power factor |
| Dimmbar? | optional | Dimmable? |
| Lichtquelle | LED-SMD 5050 Philips Luxeon | Light Source |
| Energieklasse | C | Energy Class |
| auf einer Skala von A (sehr effizient) bis G (wenig effizient) / on scale of A (high efficient) to G (less efficient) | ||
| Photobiolog. Klasse | 1 | Photobiolog. Class |
| Lichtwinkel | 65 x 150° | Beam Angle |
| Lichteffizienz | 160 lm/W | Light Efficacy |
| Warmweiss | 2700 - 3300K - 21000 lm - CRI Ra >70 | Warm White |
| Neutralweiß | 3800 - 4300K - 24000 lm - CRI Ra >70 | Nature White |
| Kaltweiß | 5800 - 6500K - 24000 lm - CRI Ra >70 | Cold White |
| LED-Lebensdauer | L70B10 - 50.000 h | LED-Life |
| Schaltzyklen (ein/aus) | > 120.000 | Switch Cycles (on/off) |
| Gehäuse | Alu Druckguss, schwarz / Cast aluminium, black | Housing |
| IP-Klasse | IP65 | IP-Class |
| Abmessungen | 642 x 290 x 120 mm | Sizes |
| Gewicht | 6800 g | Weight |
| Normen | EN55015:2013, EN60598-1:2009, EN60598-2-2:2012, EN60968:1990, EN60969, EN61000-3-2/2006, EN61000-3-3:2013, EN 61547:2013, EN62031:2013, EN62471:2008, EN62493:2010, EN62560:2012 | Standards |
| Hinweise | Notes |
| Verwendungszweck | Application |
| LED-Leuchte für allg. Beleuchtungsaufgaben in Straßen, auf Parkplätzen, an Gehwegen, auf Firmengelände usw. | LED-light for common lighting applicaions in streets, car parks, parkiung arteas, etc |
| Besonderheiten | Specials |
| Modulares LED-System, leicht austauschbar, mit hoher Effizienz und Farbwiedergabetreue, IP65, gekapseltes Netzteil IP67, kurzschlußfest mit Übertemperatursicherung | Modular LED-system, easy to echange, high effficacy and CCT, IP65, encapsuled driver IP67, short break protected and over temperature protected |
| Installation | Installation |
| Elektroarbeiten nur an spannungsfrei geschalteten Leitungen und nur durch geschultes Fachpersonal. Montage an Leuchtenmasten mit 60 mm Durchmesser anstelle bisheriger Leuchtenköpfe. Für andere Mastendurchmesser passende Mastadapter verwenden. Vorhandene Vorschaltgeräte müssen entfernt werden. Betrieb direkt an Netzspannung 230 V AC 50&60 Hz, nicht dimmbar | Installation only when line is powered off and only by well trained experts. Mounting on poles with diameter 60 mm to replace old lighting heads. For other pole diameters use special adapters. Remove existing electronic ballast. Power directly to 230 V AC/ 50/60 Hz, not suitable to work with dimmers |
| Hinweise | Notes |
| Wie bei allen LED-Leuchtmitteln ist auf ausreichende Luftzirkulation zu achten, damit die LED-Lampe nicht überhitzt. Die Gesamtenergieeffizienz und Lichtverteilung dieses LED-Leuchtmittels wird von der Bauart der Lichtanlage bestimmt, in der es verwendet wird. Messdaten unterliegen üblichen Toleranzen. Daten gem. Asmetec-Labor bzw. nach Werksangaben sowie. EU 874/2012, 2010//30/EU, 2011/65/EU | As with all LED-Lights take care for sufficient air ventilation to prevent LED overheating. The total efficiency and light distribution of this LED depends on the structure of the luminaire where it is used in. Technical data subject common tolerances. Measure data acc. Asmetec Test lab or original manufacturer data and acc. EU 874/2012, 2010//30/EU, 2011/65/EU |
| Entsorgung | Waste Treatment |
| LED-Leuchten enthalten Wertstoffe. Bitte geben Sie die Lampen nach Gebrauch beim Wertstoffhof ab oder senden Sie sie an Asmetec zum Recycling zurück. | LED-lamps contain valuable raw materials. Please dispose them after use at the Local Court of Value Materials or return them for free disposal to Asmetec. |
| Prüfberichte | Test Reports |
| Individuelle Prüfberichte zu colorimetrischen, photometrischen und elektrischen, elektromagnetischen Daten erstellen wir auf Wunsch im eigenen Labor. | Individual test reports for colorimetric, photometric, electrical and electromagnetical data upon request made in own lab. |
| Technische Daten | Technical Data |
| Technische Daten können ohne Vorankündigung geändert werden, wenn sie zur Produktverbesserung dienen. Bitte beachten Sie unsere technischen Datenblätter zu den einzelnen Produkten. | Technical data are subject to change without prior notice to improve the product. Please note our technical data sheets provided for each product. |
