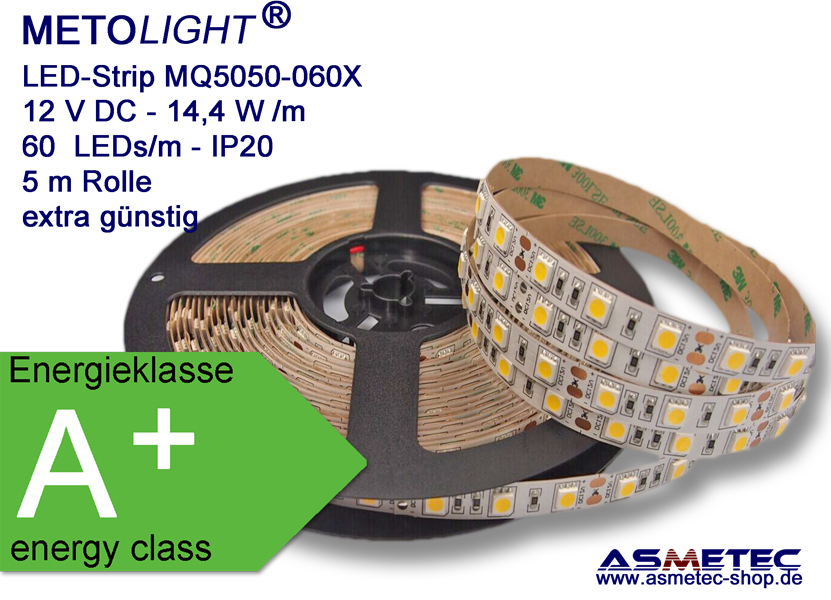

LED-Strip MQ5050-12-060X-RGB, IP20, 5-m-reel, value priced

METOLIGHT LED strip MQ5050-12-060X-RGB

LED strip in regular quality, 12 V DC, 5-m-roll, RGB

60 LEDs / m, 14,4 W / m, 72 W / reel, LED spacing 16 mm, IP20

The LED strip series MQ5050 are designed for professional use. They are characterized by numerous technical details, which significantly stand out METOLIGHT LED strips from cheap LED strips from the supermarket or hardware stores. METOLIGHT LED-Strips only use high-performance EPISTAR SMD-LEDs type 5050 with an efficiency of over 120 lm / W (white), fixed to flexible polyimide circuit board having 18 µm Cu layer by silver solder paste. Thus a consistent LED brightness over the entire roll length of 5 meters is assured. It can be extended to maximum 10 meters, then power must be supplied from the power supply again.

This series of LED-Strips is designed to be used for non continious lighting 24/7, such as in private use or short term use on trade shows, booth decoration  etc.

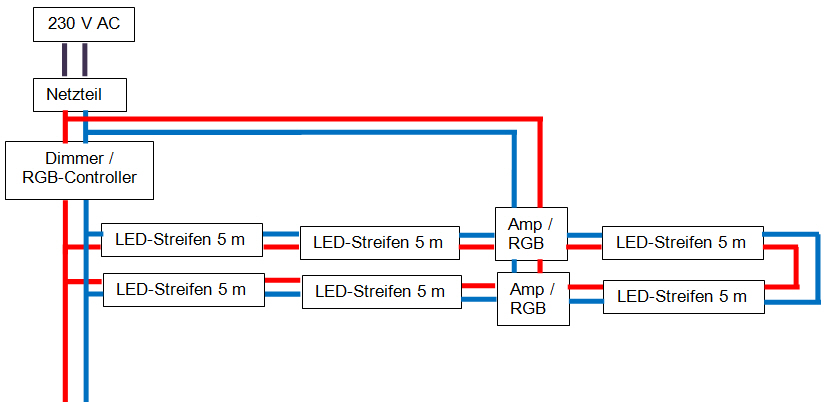

Single colour LED-Strips Series MQ5050 can be connected directly to a 12 V DC constant voltage driver, RGB-LED-Strips however need additionally a RGB-controller (not included) and every 10 m one RGB-amplifier. Controllers and amplifiers you can find here


Further data:
LED quantity: 60 LEDs / m - 300 LED / reel
LED spacing: 16 mm
LED type: Epistar SMD 5050 - 120 lm / W (White)
Beam angle: 120 °
Cuttable: every 3 LEDs, marking on the LED Strip
Width: 10 mm
Height incl LEDs: 2,5 mm
PCB: polyimide, white, 0.2 mm thick
Cu layer 1 oz - 18 microns
Voltage: 12 V DC
Power consumption: 14,4 W / m - 72 W / Reel
Current: 1,2 A / m - 6 A / reel

Application areas:
The LED strip with protection class IP20 (Code X) may only be used in dry indoor areas for general decorative lighting. It may not be operated in damp or wet areas. Application areas are lighting in trade show booths, cabinets, shelves, display cases, counters, backlit of paintings, mirrors, screens, indirect lighting in ceiling or floor moldings and much more.

Delivery forms:
We provide these LED Strip exclusively B2B to specialist dealers or installers. The minimum order is 10 rolls of 5 meters.
The series MQ5050-12-030X LED strips are available in the colors 3000K (warm white), 4000K (naturel white), 6000K (cool white), red (620-630 nm), yellow (585-595 nm), green (510 -525 nm) and blue (450-470 nm) and as RGB-Version (needs additional RGB -controller).
In other versions of the LED strips are also available for 24 VDC.

Installation:
The back of our LED strip is provided with a 3M adhesive tape, so that the LED strips are glued to dust-free, dry surfaces. We recommend especially for continuous lighting of the LED strips to stick on aluminum flat profiles or our special LED profiles to ensure optimal heat dissipation. Sticking on wood or other heat insulating surfaces leads to overheating and thus shortened shelf life of the LEDs.

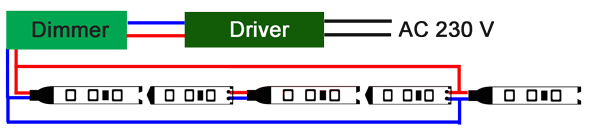

Electrical connection:
The LED strip must be connected to a stabilized power supply with 12 V DC output voltage, optionally also to respective batteries. Please pay attention to correct polarity. The red connection cable leading to the positive terminal of the power supply. The use of cheap, unregulated power supplies may damage the LED Strip, since such power supplies usually make a significantly higher output voltage (depending on the load connected).
RGB-LED-strips come with 4 wires, common anode and need an additional RGB-controller in case you want to mix colours. For fixed colours the green, red and blue wire or any combination can be connected to the LED driver
