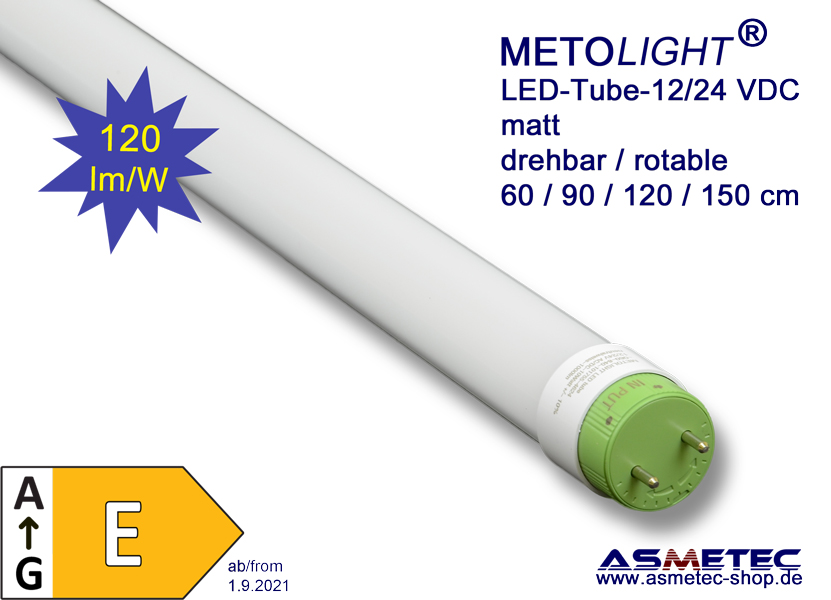

METOLIGHT LED-Tube-SCE-12_24-RM, 12/24 VDC, 90 cm, 14 Watt, T8, 1500 lm, matted, cold white

METOLIGHT LED-Tube SCE-12_24-RM, 90 cm, 14 Watt, 1500 lm, matted, cold white

LED Tube single side connected for 12 / 24 VDC low voltage

Extra bright by Epistar SMD with 120 lm / W - Energy Class E (EU 2019)
Retrofit replacement for fluorescent T8 / T10 - 90 cm, 30 Watt, Socket G13
The METOLIGHT LED tube SCE-12_24-RC is significantly brighter than conventional fluorescent tube 90 cm / 30 Watt - T8 - saves about 80% energy at about 10 times longer durability. It is designed to be used in low voltage application such as trucks, busses, boats, emergency lights. It may not be used under mains power or along with dimmers.

No electrical shock:
The Asmetec SCE-technology ensures that there is no power creep voltage from one end of the tube to the other.
The matted shell ensures bright anti glare lighting in light beam angle of about 140°.
The optimal mounting height is from 2 - 5 m

Specials:

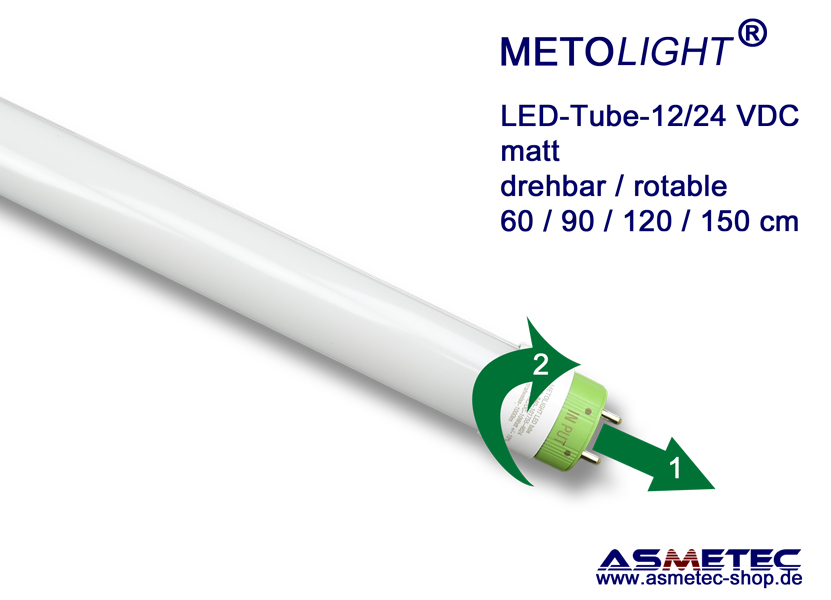

The LED tubes are equipped with rotable-fixable sockets so that they can also be used in luminaires with side G13 bases. In addition, the base caps do not increase the tube diameter, which means that the tubes can also be used in luminaires with watertight coupling nuts. The completely newly developed power supply unit with flicker-free technology ensures uniform, fatigue-free lighting. Operation on emergency power systems with DC voltage at 12 or 24 VDC is possible.

Application:
This LED-tube in light colour 5800-6500K - cold white is ideal for use in offices, hotels, restaurants, bars, indirect lighting etc. Mounted in IP65 luminaires it also can be used outdoor or in fridge rooms. It cannot be used with dimmers and with electronic ballasts.

Specials:
High efficiency SMD LEDs 120 lm/W, CRI Ra >80, PC Case, 26 mm - T8 Diameter, rotable-fixed G13 sockets, special-core PCB for best heat dissipation and long lifetime, double isolated, short-break-proof built in driver. Sturdy aluminum heat sink, extra light, unbreakable construction, Creep voltage proof > 3750 volts, High dielectric strength, no flickering through by voltage deviations. 5 years limited warranty (see warranty conditions in download section)

Easy to install:
Ensure to have 12 VDC or 24 VDC power supply, switch off luminaire - remove old fluorescent tube, starter and existing ballast, rewire G13 base to 12 VDC / 24 VDC input - insert METOLIGHT LEDtube-SCE-12_24 VDC - switch on - that's it.

Single reviev at Asmetec:
Each LED-tube undergoes a test routine in our Asmetec-Light-Lab to verify the general function and the main technical data. In addition to this each tube undergoes a 4000 Volt insulation and creep voltage test routine. The tests of all photometric data, ISO-Lines, EMC, switch cycles etc are made for each lot. Customers may receive test reports upon request.

Notes:
Also available in light colour 3000K / 4000K / 5000K / 6000K and with matted shell as well as with UV 470 nm and UV 520 nm filter for use in Yellow Rooms. We also supply LED-Tubes with CRI Ra > 90 and eficiencies up to 180 lm/W
