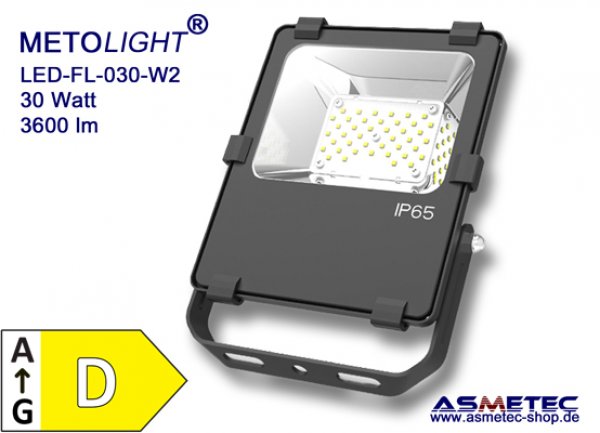

LED Flood Light FL-030-W2-CW, 30 Watt, 3600 lm
METOLIGHT LED Flood Light FL-030-W2-CW - 30 Watt, IP65, 3600 lm
HiPower LED flood light with extra flat housing, 130 lm/W
This newly developed, compact LED flood light is an ideal replacement small halogen flood lights for use indoors, damp-proof and in protected outdoor areas.The housing is extremely flat with only 45 mm depth. The LEDs from Lumileds Type 3030 have an efficiency of 140 lm/W, but operated at a lower power. The result is less heat and durability increases. The integrated power supply also has a temperature sensor, which switches off the lamp in case of overheating and switch on again after cooling.
The front glass is crystal clear and impact resistant (IK08), the high-gloss reflector distributes the light at an angle of about 120 °.
As standard we supply this led flood light in light color 6000K - cool white. If required the light color warm white (3000K) or neutral white (4000K) can be supplied.

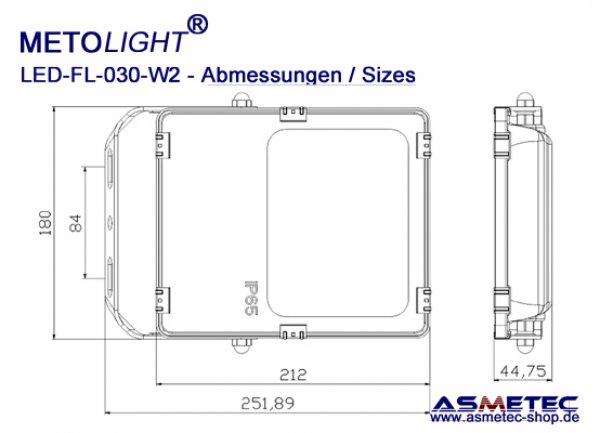

With dimensions of just 252 x 180 x 45 mm (H x W x D) it can be mounted almost anywhere unobtrusively.
The brightness of 3600 lm is equivalent to a 300 watt halogen bulb. The LED light is UV-free, less attractive to insects, high fidelity CRI Ra> 80. The energy class is corresponding to D (EU 2019).
The housing made of diecast aluminum, black powder-coated, IP65, has an adjustable mounting bracket, with the floodlight can be easily attached to the wall or ceiling and then oriented. The connection cable is provided with a safety plug which is cut in fixed installation and the cable then connected in a suitable junction box.
The flood lights can be used indoors, in damp rooms and in protected outdoor areas. An integrated "Breather" provides for pressure compensation, so that the shutdown of floodlight (e.g. while foggy or damp) no moisture is sucked into the housing.
Applications:
The floodlight is ideal for illuminating under eaves, in the protected garden area, Verandas, conservatories, in subways, hallways and more.
Technical specifications:
Mains voltage: 230 VAC 50/60 HZ
Power consumption: 30W
Light color: 6000-6500K - CRI Ra> 80
Luminous flux: 3600 lm
Beam angle: 120 °
Energy class: D (EU 2019)
Sizes: 252 x 180 x 45 mm (H x W x D)
Weight: 2,0 kg
Technical Data
| Beschreibung | Daten / Data | Description |
| Markenname | METOLIGHT | Brand name |
| Modell | LED-FL-030-W2 | Model |
| Betriebsspannung | 100 - 265 V AC / 50/60 Hz | Input Voltage |
| Gesamtleistung | 30 Watt | Input Power |
| Leistungsfaktor | Pf > 0,90 | Power factor |
| Dimmbar? | nein / no | Dimmable? |
| Lichtquelle | 56 x LED-SMD 3030 | Light Source |
| Energieklasse | D | Energy Class |
| auf einer Skala von A bis G (wenig effizient) / on scale of A to G (less efficient) | ||
| Photobiolog. Klasse | 1 | Photobiolog. Class |
| Lichtwinkel | 120° | Beam Angle |
| Lichteffizienz | 130 lm/W | Light Efficacy |
| Warmweiss | 2800 - 3300K - 3200 lm | Warm White |
| Neutralweiß | 5500 - 6500K - 3400 lm | Nature White |
| Kaltweiß | 5500 - 6500K - 3600 lm | Cold White |
| CRI | CRI Ra > 80 | CRI |
| LED-Lebensdauer | 35.000 h | LED-Life |
| Schaltzyklen (ein/aus) | > 120.000 | Switch Cycles (on/off) |
| LED-Versorgung | 40 - 48 VDC - 600 mA | LED-Supply |
| Klassen | IP65, IK08, Iso-I | Classes |
| Abmessungen | 252 x 180 x 45 mm (H x B x T ( H x W x D) | Sizes |
| Gewicht | 2,0 kg | Weight |
| Betriebsbereich | -20°C - + 40°C – 5-95% rH | Work Conditions |
| Hinweise | Nicht an elektronischen Vorschaltgeräten oder Dimmern betreiben. - Do not connect to electronic ballast or dimmers. | Notes |
| Normen | CE-Konformität / CE-conformity nach / acc to: EN55015:2013, EN60598-1:2009, EN60598-2-2:2012, EN60968:1990, EN60969, EN61000-3-2/2006, EN61000-3-3:2013, EN 61547:2013, EN62031:2013, EN62471:2008, EN62493:2010, EN62560:2012, ErP 2009/125/EU, NRS 2014/358/EU, EMV 2014/30/EU, RoHS 2011/65/EU | Standards |
| Hinweise | Notes |
| Verwendungszweck | Application |
| LED-Fluter für allg. industrielle Beleuchtungsanwendung im Innen- und Außenbereich | LED-Flood light for common lighting application indoor and outdoor |
| Besonderheiten | Specials |
| LED-Fluter in stabilem Alu-Druckgußgehäuse IP65, bruchfestes Frontglas, integriertes Konstantstromnetzteil, kurzschlußfest | LED-flood light in robust cast aluminium housing IP65, tensioned front glass, integrated constant current driver, short break protected |
| Installation | Installation |
| Decken-, Wand oder Stativmontage | Ceiling- wall- or stand mounting |
| Hinweise | Notes |
| Wie bei allen LED-Leuchtmitteln ist auf ausreichende Luftzirkulation zu achten, damit die LED-Lampe nicht überhitzt. Die Gesamtenergieeffizienz und Lichtverteilung dieses LED-Leuchtmittels wird von der Bauart der Lichtanlage bestimmt, in der es verwendet wird. Messdaten unterliegen üblichen Toleranzen. Daten gem. Asmetec-Labor bzw. nach Werksangaben sowie. EU 874/2012, 2010//30/EU, 2011/65/EU | As with all LED-Lights take care for sufficient air ventilation to prevent LED overheating. The total efficiency and light distribution of this LED depends on the structure of the luminaire where it is used in. Technical data subject common tolerances. Measure data acc. Asmetec Test lab or original manufacturer data and acc. EU 874/2012, 2010//30/EU, 2011/65/EU |
| Entsorgung | Waste Treatment |
| LED-Leuchtmittel enthalten Wertstoffe. Bitte geben Sie die Lampen nach Gebrauch beim Wertstoffhof ab oder senden Sie sie an Asmetec zum Recycling zurück. | LED-lamps contain valuable raw materials. Please dispose them after use at the Local Court of Value Materials or return them for free disposal to Asmetec. |
| Hinweis zu den technischen Daten | Technica Data Notes |
| Technische Daten unterliegen den üblichen Schwankungen. Sie können ohne Vorankündigung zur Produktverbesserung geändert werden. Produktabbildungen dienen nur zur näherungsweisen Darstellung. Die Produkte können im Aussehen leicht abweichen. | Technical data subject to the usual deviations. They may be modified for improvement without prior notice. Images are only for the approximate representation. Products may differ slightly. |
| Prüfberichte | Test Reports |
| Individuelle Prüfberichte zu colorimetrischen, photometrischen und elektrischen, elektromagnetischen Daten erstellen wir auf Wunsch im eigenen Labor. | Individual test reports for colorimetric, photometric, electrical and electromagnetical data upon request made in own lab. |
