Lisun EMI-9KC, EMV-Test 9kHz ~ 1 GHz

Lisun EMI-9KC, EMV-Test 9kHz ~ 1 GHz

EMI Test Device

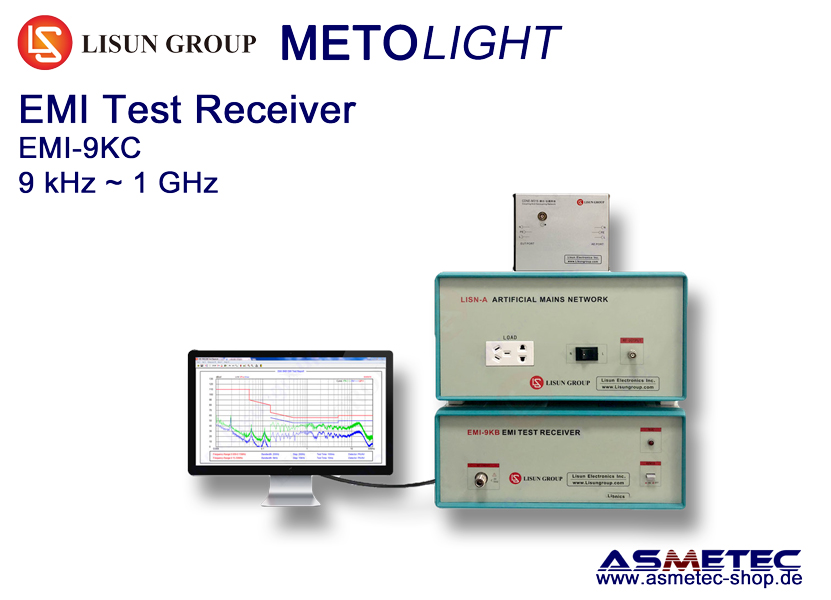

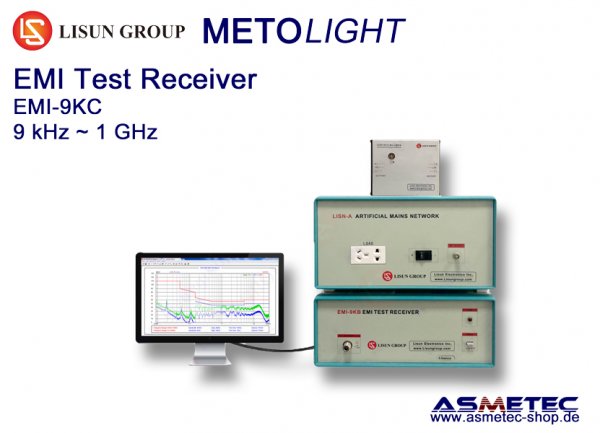

EMI-9KC is an automatic EMI receiver system. It is a main test system for EMI (Electromagnetic Interference) radiation conduction testing.
The EMI-9KC is produced by the full closure structure and strong electro-conductibility material, which has high shielding effect.
Due to the new technology for the EMI Test System, it solved the instrument self-EMI problem.
The test results are according to the international format test report.
The EMI Test System EMI-9KC fully meets CISPRl6-1, GB17743, FCC, EN55015 and EN55022.

The system is supplied with calibration certificate and complies with latest CE standards.


This system is also available for other frequency ranges.
If you are interested, please ask for more information and an offer.
The delivery time is approx. 6 weeks.
A Windows-based PC (from Win 7) is needed to operate the system
The supplied software is easy to install and very easy to understand and operate at the push of a button.

Various standard norms are stored as measurement limits, and it is easy to create your own measurement limit curves.

Specification:
• Detection frequency range: 9kHz~1 GHz
• Frequency stability: 1x10^6
• Frequency resolution: (9kHz~150kHz) 30Hz; (150kHz~30MHz) 1kHz
• Test Tolerance: ±2 dB
• Measure and Detection method: PK, QP and AV
• Measure range from 20dBμV to 140dBμV
• Frequency scanning step length: 20Hz~2MHz
• Sweep bandwidth: 200Hz; 9kHz; 120kHz
• Connect PC via USB and software can be run Win7, Win8, WIN 10, 64 Bit
