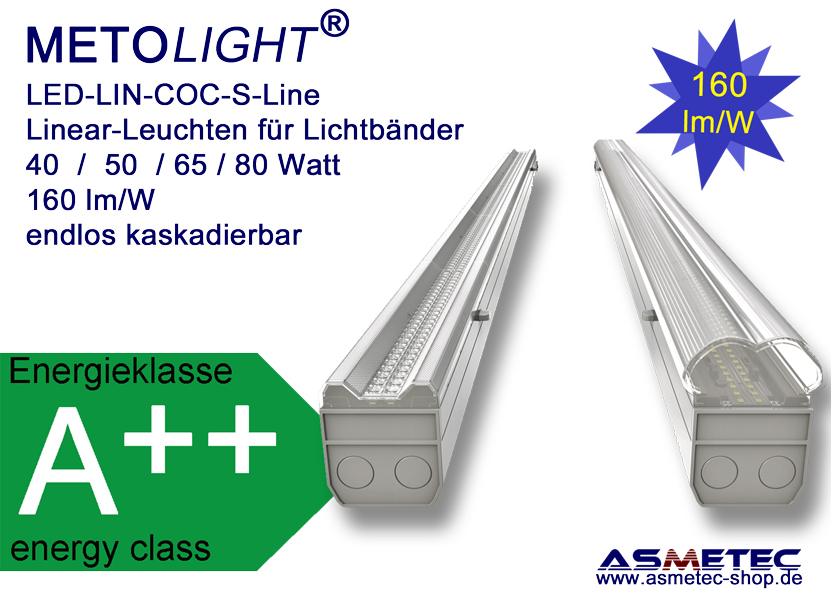

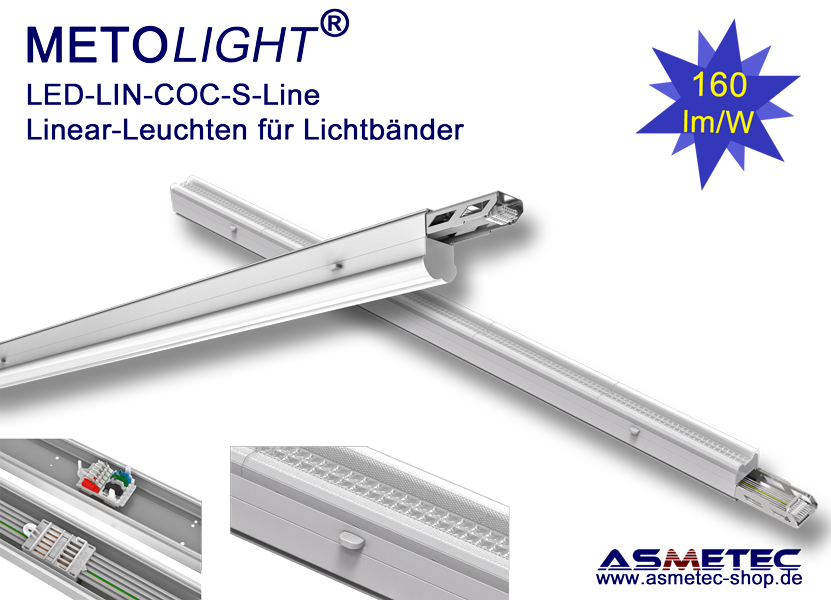

LED-LIN-COC-S, 50 Watt, 8000 lm, Module 1410 mm for trunking light system COC

METOLIGHT LIN-COC-S - 1410 mm - 50 watt, 4000K, 8000 lm

LED module for trunking lights

METOLIGHT LED-LIN-COC-S is a light band system for the construction of modern, highly efficient LED lighting systems, linear light lines for lighting e.g. in supermarkets, warehouses and production halls, in open-plan offices or laboratories, in training and meeting rooms - wherever a timelessly elegant, modular and versatile linear light system needs to be installed.
The LED modules are equipped with highly efficient LED chips from Philips or Samsung with 160 lm / W, CRI Ra <90 (optionally possible up to Ra95).

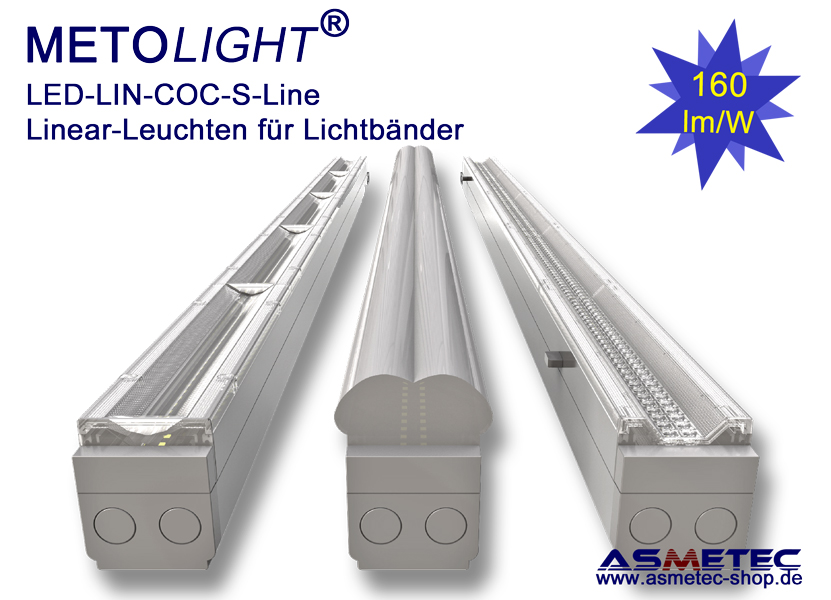

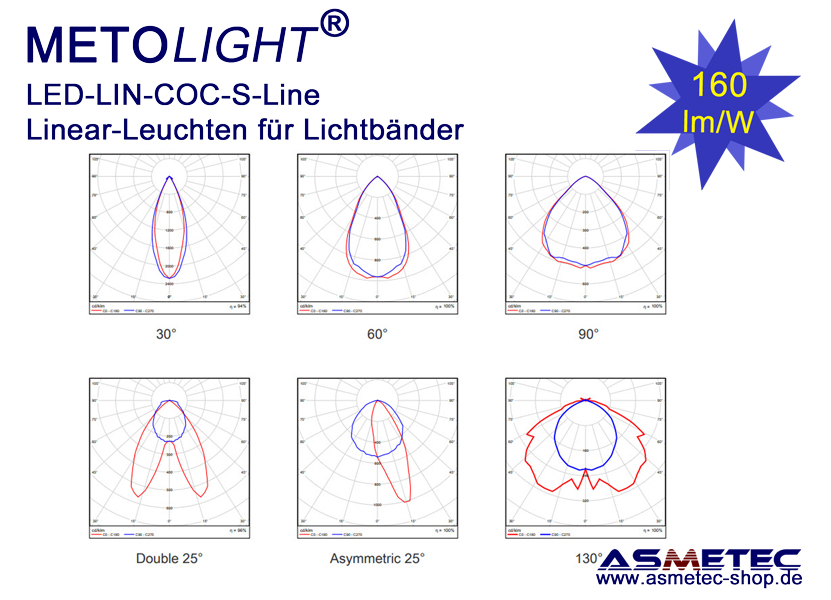

These additional lenses are available for this LED module (can also be changed later): 30 °, 60 °, 90 °, 130 °, 2x25 °, 25 ° right, 25 ° left.
Depending on the lens selected, UGR up to 16 is achieved.


The LED-LIN-COC-S light rail system includes:
- LED module (available in different light colors, lengths, wattages and light angles)
- Trunking rails with integrated electrical wiring (5, 7, 11 wires)
- Assembly parts (suspension ropes, Brackets for ceiling mounting)
- Rail connector / straight, L-, T- X connector equipped with cabling 5, 7, 11 wires)


All these parts must be ordered individually. We will be happy to help you select all the components correctly


These linear trunking lights also include further options:
- Power supply units: Standard (is integrated in the LED module), Optional: 0-10 V dimming, DALI dimming
- Emergency lighting: (modules with integrated battery to bridge the gap in the event of a power failure)
- Bridging strips with Cabling (5, 7, 11 wires)
- sensor modules (motion sensor, daylight sensor)
- electrical and mechanical connection parts
- connection modules for tracklights, power supplies, camera systems, etc.
As the system structure is very versatile, we cannot offer all parts here in the shop list individually.
We will be happy to calculate all the parts you need for your planned lighting concept so that you receive a ready-to-install package.


Technical data LED light strip module COC-S, 40 watts
power consumption: 50 watts
input voltage: 180-240 VAC 50/60 Hz
luminous flux approx. 8000 lm
light colors: 4000K
housing: cold rolled steel, white powder-coated, IP50
dimensions: length: 1410 mm width 65 mm Height: 36 mm
Weight: 2.5 kg


Scope of delivery:
LED module 1410 mm, with standard power supply unit and 130 ° lens


Options:
This lamp is also available with a color 3000K / 4000K / 5000K / 6000K
overall length 1410 mm or 2820 mm
Power : 40/50/65/80/100/130/160 watt
housing color black or alu


Synonyms: This light is also referred to as linear light, light band, linear light, trunking light, light rail light, etc.
