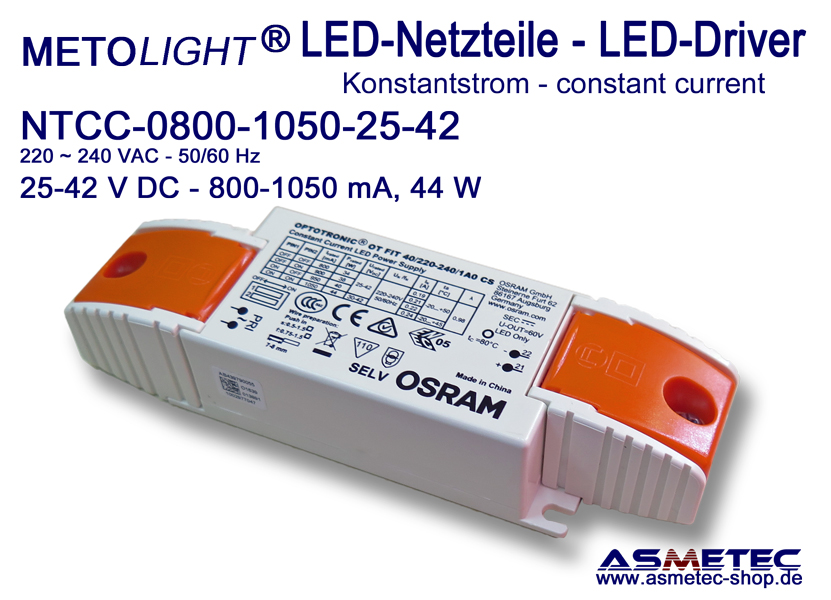

LED-driver NTCC-0800-1050-25-42, constant current 800-1050 mA, 25-42 VDC, 44 Watt, Osram
LED-driver NTCC-0800-1050-25-42, Constant Current 800-1050 mA, 25-42 VDC, 44 Watt
Constant current power supply for LED lights up to 44 Watts, adjustable output current
Quality LED Driver - LED Driver with high power factor Pf> 0.90, compact, closed design, IP40, primarily dimmable via PWM / triac control for electronic power supplies, short-circuit proof, overvoltage protected.
The power supply is suitable for LED luminaires, which are operated with constant current from 800 to 1050 mA in the voltage range of 25-42 VDC.
It complies with the EN60950-1, EN55022, EN61000-4-2, -4, -5, -11 standards.
Notes: Installation only by qualified electricians taking into account the general safety regulations when working on mains voltage.
Incorrect polarity can cause irreparable damage to the LEDs. Please make sure that the power the LRED driver is sufficient to supply the connected LEDs. Damages caused by incorrect installation or overloading are not covered by the warranty.
Technical data:
- Input voltage: 180-240 VAC, 50/60 Hz
- Output current: 800-1050 mA, adjustable
- Output voltage: 25-42 VDC
- Power: 44 Watts max.
- Dimmable: PWM
- Protection class: IP40
- Sizes: 120 x 45 x 30 mm (L x W x H)
- Weight: 0.25 kg
Intended use: Operation of LED lights, downlights, LED chips
Synonyms: LED power supplies are often referred to as: LED driver, constant current power supply, constant current driver, CC power supply, CC driver
