ESD disposable heel grounder EWFB
METOSTAT disposable heel grounder EWFB
disposable heel grounder with glue strip
for static dissipation while wearing regular shoes, ideal for visitors
The heel grounder is used for discharging static charges of a person wearing regular, non-dissipative street shoes. Particularly in modern shoes with insulating rubber sole person to can become statically charged when walking, so that they feel an uncomfortable electric shock when touching grounded metals like tables, doors, machines etc.

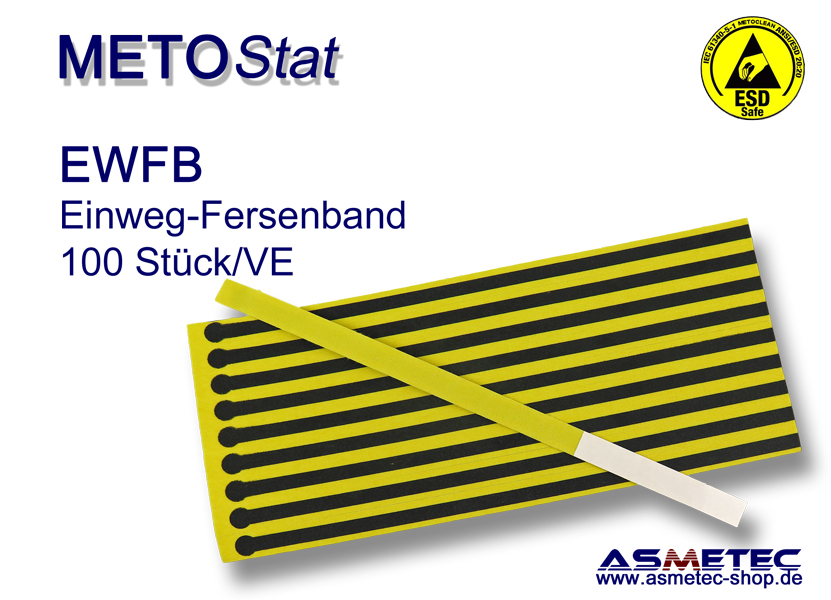

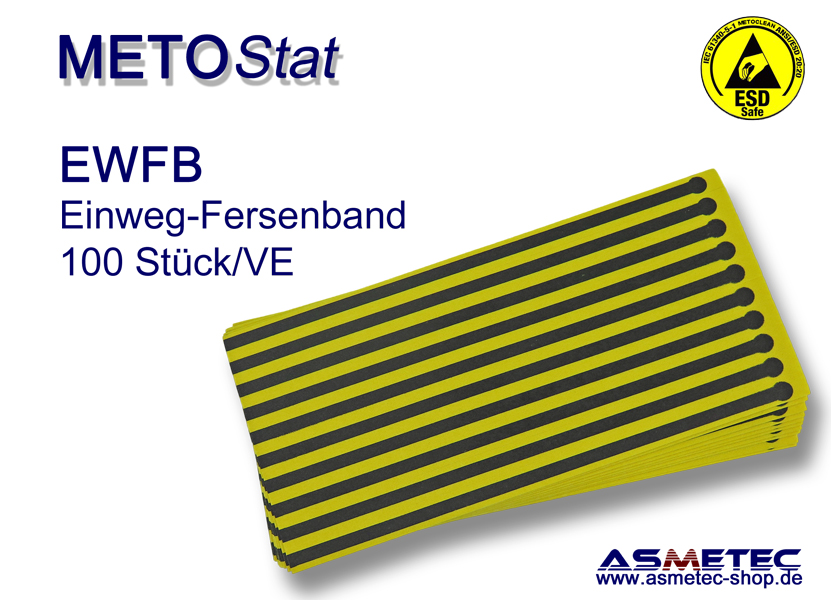

The disposable heel grounder is supplied as package with 100 grounder strips, 10 strip each card, 10 cards per package.

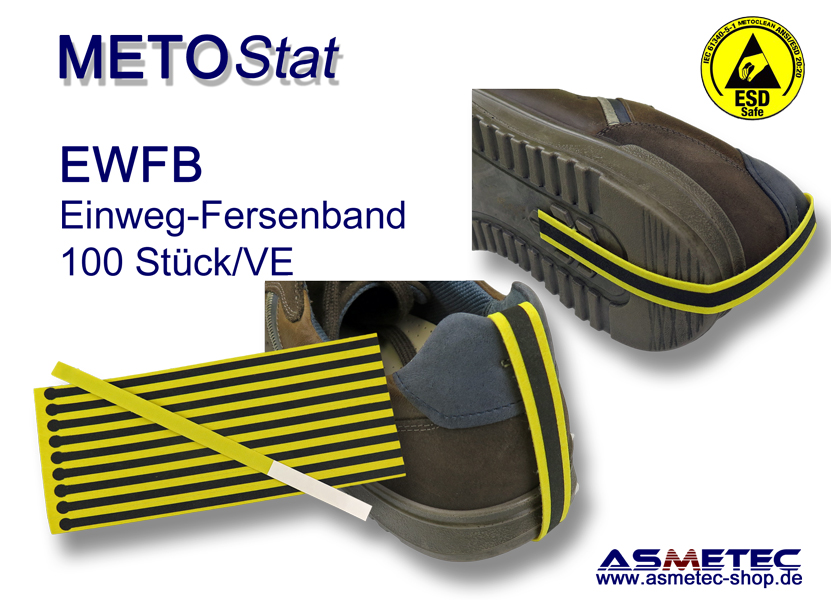

It is taken out of a card and then sticked to the underside of heel by glue tape, the other end is bended over the heel into the shoe.
The heel grounder meets the requirements of EN 61340-5-1.

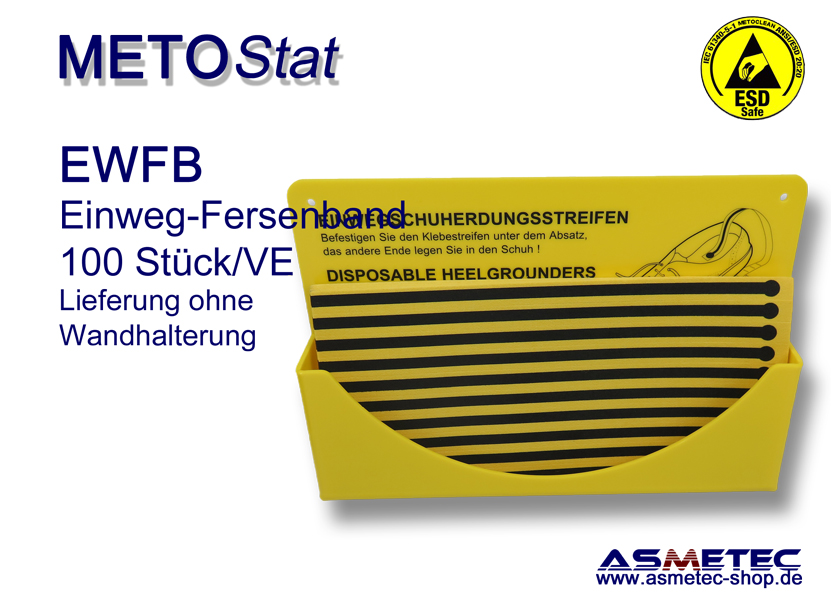

We offer a wall holder box that can keep 350 EWFB-Strips
Data:
dissiopatice plastic
glue strip
size 31 x 1,5 cm
No protection resistor
Weight: 5 g
Color: yellow / black
100 strips per sales unit
Resistance to the grounding point Rg: (unworn): <200 Ohm (worn on foot): 1 - 3 megohms
