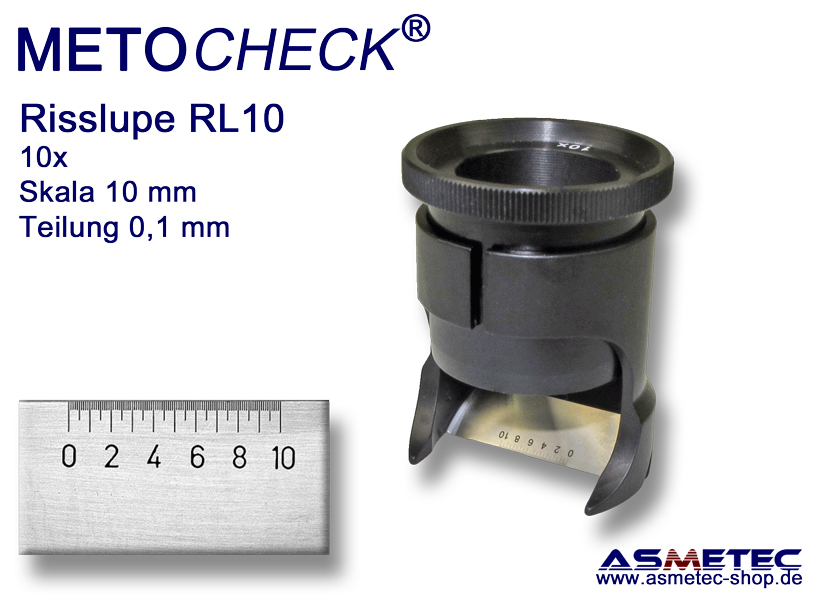

Crack magnifier RL10, 10x
METOCHECK RL10, crack magnifier, 10x
stainless steel scale, focusing loupe
This crack magnifier RL-10 is equipped with an aplanatic lens and scratch resistant stainless steel scale, mounted in angle of 45°. This reduces unwanted reflections even at bright light.
The loupe can be focussed by adjusting the lens height.
At 10x magnification a field of view of 20 mm is achieved.
Optionally we offer a LED-Illumination for this loupe.
The crack magnifier is available in magnifications of 6x, 8x, 10x and 12x.
The loupe is packed in a reusable plastic box.
At extra cost we offer scales with calibration certificate acc. to VDI/VDE/DGQ 2618 page 27 Ü
Due to the calibration your delivery time would be expanded to 4-6 weeks
Magnification: 10x
Field of view: 20 mm
Focus: focussable

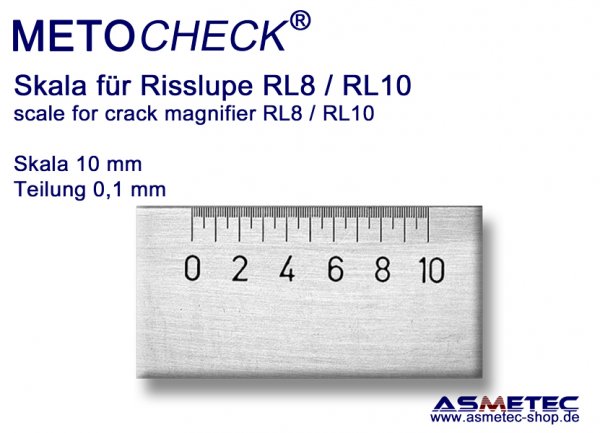

Scale: 10 mm, division 0,1 mm
Optic: aplanat, distortion free
Sizes: 32 x 45 mm
Weight: 36 Gramm
Technical Data
| Beschreibung | Daten / Data | Description |
| Markenname | METOCHECK | Brand name |
| Modell | RL-10 | Model |
| Vergrößerung | 10x | Magnification |
| Fokussierbar | ja - yes | Focussable |
| Linsenart | Glas | Lens type |
| Linsendurchmesser | 18 mm | Lens diameter |
| Sichtfeld | 20 mm | Field of view |
| Optik | aplanat | Optic |
| verzeichnungsfrei - distortion free | ||
| Skala | ja / yes | Scale |
| Messlänge | 10 mm | Scale Length |
| Skalenteilung | 0,1 mm | Scale division |
| Lupenkörper | Kunststoff -plastic | Lupe Body |
| Abmessung | 32 x 45 mm | Sizes |
| Gewicht | 36 gr | Weight |
| Toleranz techn. Daten | +/- 10% | Tolerance techn. Data |
| Hinweis | Mit Lupen niemals in das Sonnenlicht blicken, Gefahr der Augenverletzung, Lupen nicht unbeaufsichtigt im Tageslicht liegen lassen, Brandgefahr - Do not look into sun with magnifier - eyes may be injured, don't leave magnifier unattended in daylight - risk of catching fire | Notes |
