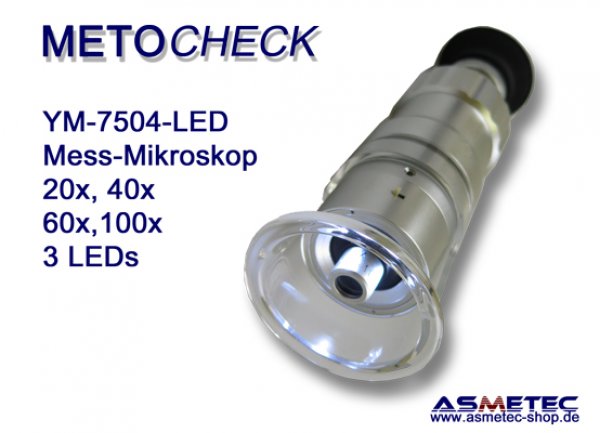

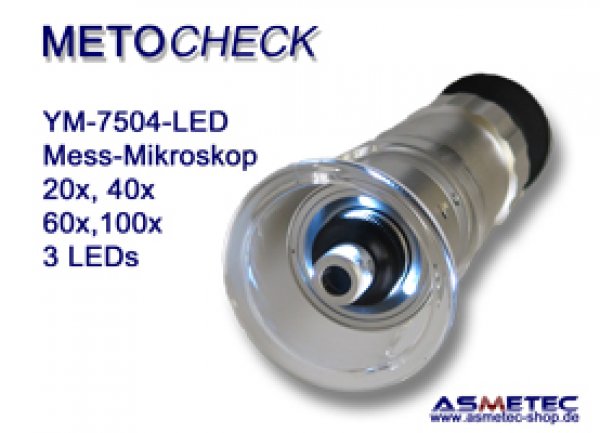

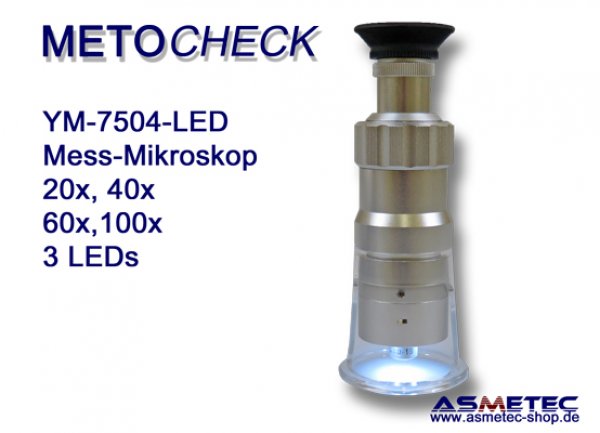

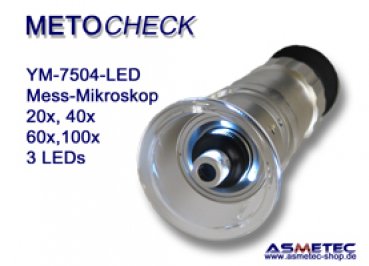

METOCHECK YM-7504-100-LED, scale microscope 100x
METOCHECK YM-7504-100-LED, 100x
portable scale microscope with LED
The series METOCHECK YM7504-100-LED is a high quality scale microscope with built in LED-illumination, powered by 4 button cells type AG9 (not included).
The microscope offers easy focussing through a focus ring.
This microscope is available in magnification of 20x, 40x, 60x and 100x
The scale offer both metric and imperial divisions.
You can use the microscope body to also insert eye pieces and objectives of PEAK 2034/2054 series.

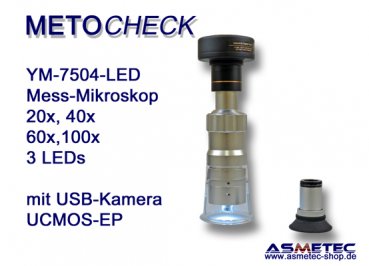

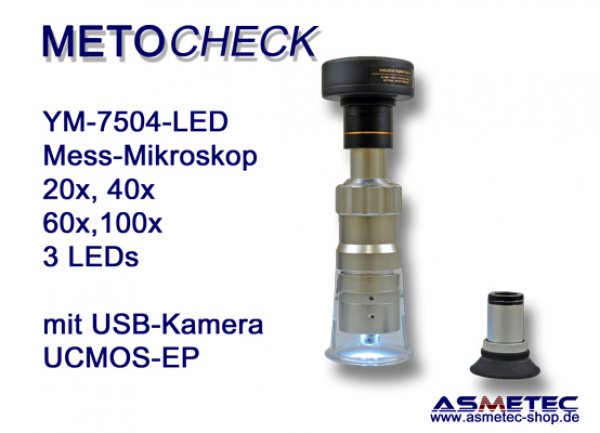

Easy turn into video-microscope:
For YM7504 and YM-7504LED we offer USB-cameras with 3MP and 5MP resolution.
Simply inserted instead of the eye piece it turns your microscope into a video microscope including easy metrology options.
USB-Cameras you can find here (please choose UCMOS-EP-series)
Magnification: 100x
Field of view: 1,4 mm
Focus: focussable
Scale 100x: 0,01 mm + 0,0005" - 1,2 mm long
Sizes: 55 x 150 mm
