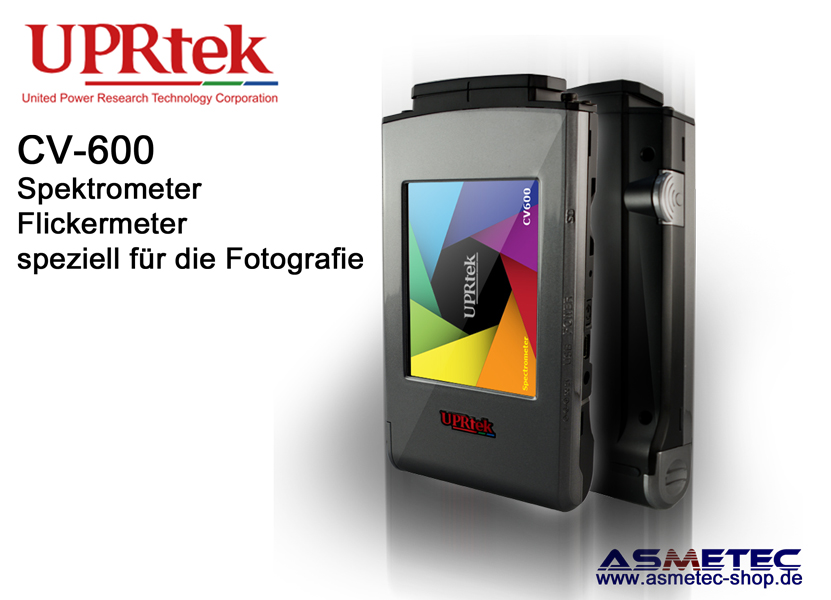

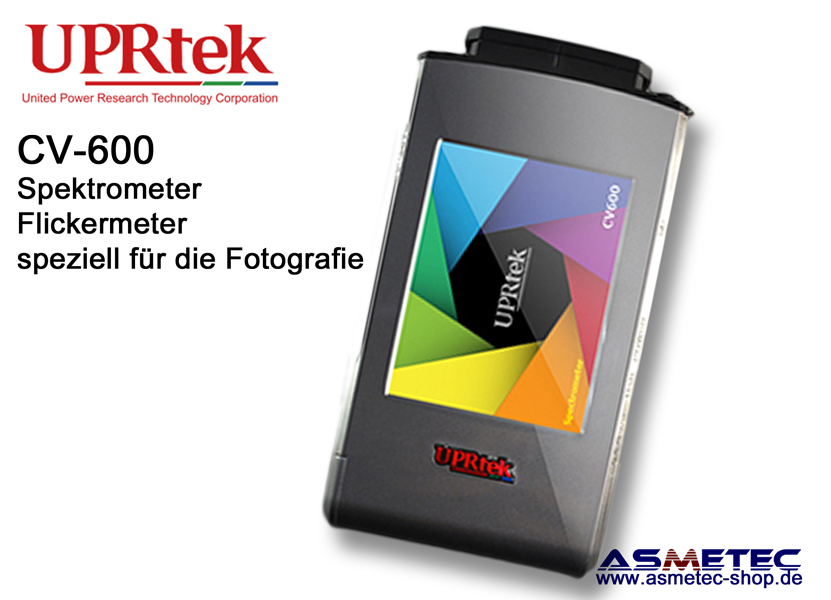

UPRTek LED-Spectrometer CV600 esp. for photographers
METOLIGHT special edition of UPRTek CV600 - All purpose Professional Cinematic and Photographic Light meter / flicxker meter
It is not only a Light meter, but also a color meter, cine meter and exposure meter - a quicker, more efficient measurements for cinematographer, videographer, video makers, and film producers to capture every life moment!
CV600 new design target the needs of professional photographers provide advanced features at work!
Filter library, flicker free setup and get a right exposure value

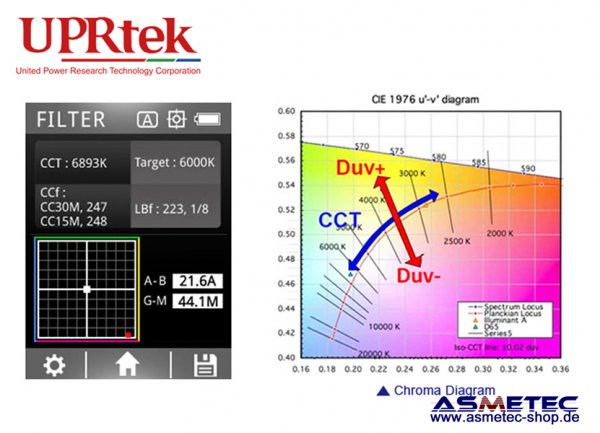

These new functions are helping you to face the challenges of setting up lights. The common used White Balance Map for cinematographer and videographer now combined with modern technology. Just target your Corrected Color Temperature (CCT), check your current lights and accurately pinpoint the right gel to use. CV600 helps you to control the light and increase the quality of work!

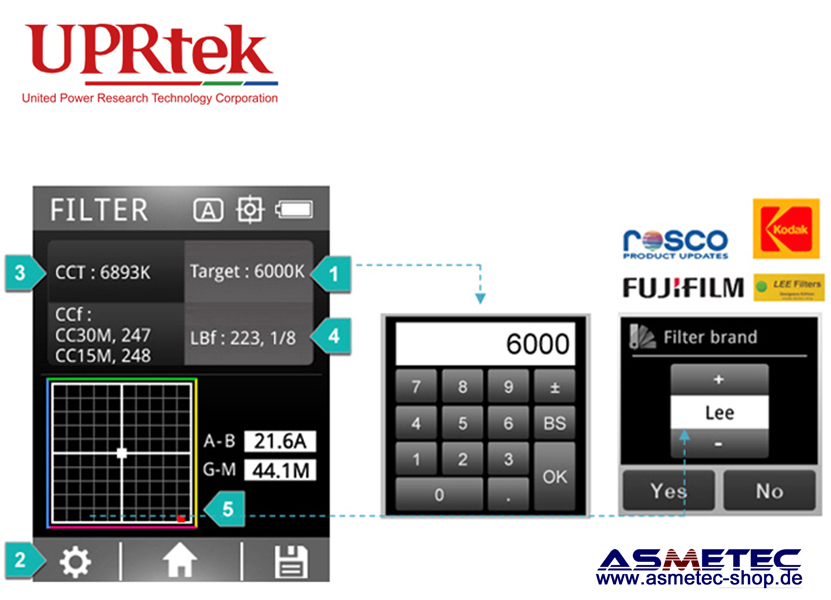

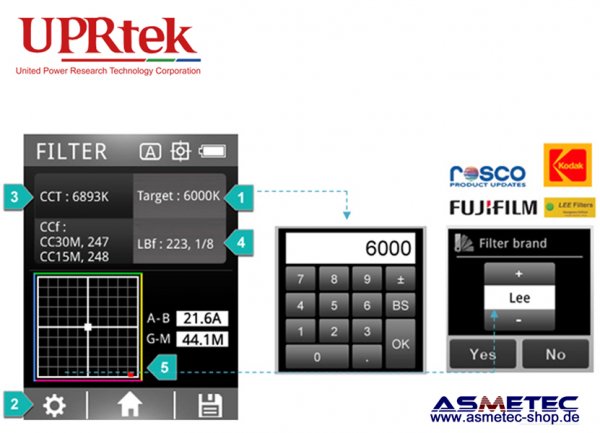

Filter Light Palette includes CC/LB Rosco, LEE Filter, Kodak, FUJIFILM 4 brands of filter library to find the suitable color. Knowing exactly what gel to use save times to guess, trial and error.

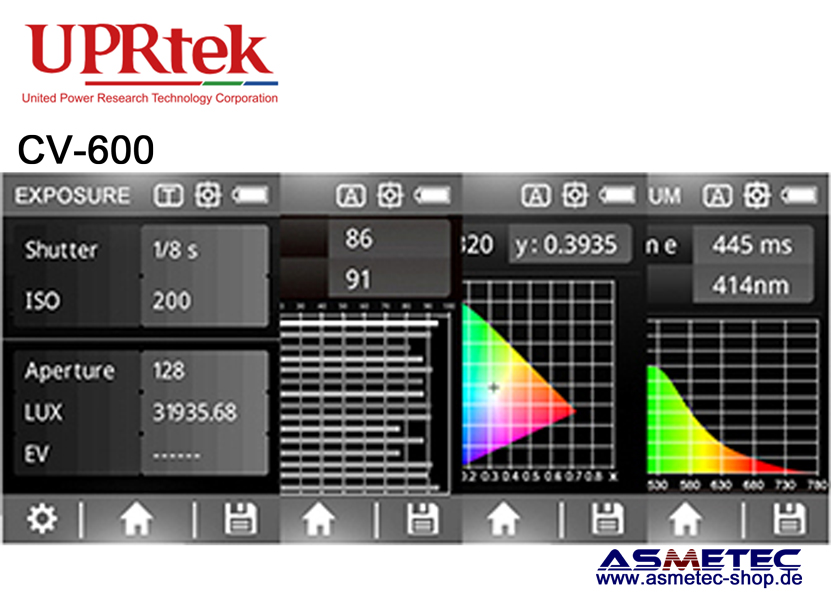

A cinematic light meter with an exposure meter save all of your camera settings along with light and color information for your personal library.
Exposure Value Compensating make sure every shoot are always correctly exposed.
CV600 built-in flicker free function enable the setting between camera frame rate and light source frequency to provide flicker-free shooting.
Asmetec supplies the METOCHECK Version of CV600 with helpful accessories such as clean room wipes and gloves. All spectrometers are tested inhouse and supplied with fully charged battery, so you can start directly.
CV600 Main measuring capabilities:
Lux, Fc, CCT, CIE coordinates,
Delta UV: - to measure UV-% in light
Flicker: - to measure flicker-%, flicker frequency, flicker index of light sources
TLCI: - Television Lighting Consistency Index
LB/CC filter (LBf, CCf, LBi, CCI)
Exposure (T-, F-, TF-, EV-Mode)
TM30-15
and more.
Easy to use, handheld LED spectrometer to measure all visual light from 380 nm to 780 mm at any time.
This ultra precise spectrometer comes with a CMOS Linear Image Sensor, 3,5" color touch screen, USB 2.0 port, SD-card slot.
It is supplied with pouch, comes with rechargeable battery, power driver - all in a robust aluminium case to carry with you when you're on the road.
Asmetec supplies the CV600 fully inspected and with charged battery - simply switch on and start your work.
Unlike any other spectrometer the CV600 offers you the complete range of MUST HAVE light data such as:
Illuminance in Lux, spectral irradance, CIE coordinates 1931 and 1976, peak wave length, correlated color temperature (CCT) in Kelvin, color rendering index Ra (rendering average, but also R1~R15), Flicker-Measure, Frequency mode and many more.
All data can be saved to SD-card (not included) or to your computer as MS-Excel compatible file or as BMP-file.
The fully charged battery operates the system for about 5 hours continiously measure (can be one time / continious measure)
It includes an automatic dark calibration when switched on. Auto off function (time adjustable), menu language english, chinese, japanese. German and french language.
The CV600 comes in a robust case, including pouch, rechargeable battery, charger, manual, 4GB SD-Card,
Display languages are English, Trad. Chinese, Japanese, Spanish, German, French, Italian, Russian.
It can work for up to 5 hours with fully charged battery (2500 mAh, 3.7 V Li-Ion-rechargeable battery is included).
Data output by SD-Card, SDHC up to 32 GB, Mini USB-Port, WiFi SD-Card compatible with IOS and Android
How to use? Easy as can be:
1. Make sure the sensor cap is on sensor
2. press power button and accept automatic dark calibration
3. take off sensor cap and hold the sensor to the light source in dedicated distance
4. press measure button until beep
5. read measure in different ways via difference screens
6. (if needed) save data to SD-card or to your computer
Technical data
Sensor |
CMOS, 6,6 mm diameter |
Measurement range |
5 - 70.000 lux |
Wavelength range |
380 - 780 nm |
integration time |
8 - 1000 ms |
capture function |
one time / continious |
Measure modes |
Basic / Spectrum Graph / CIE 1931/1976 |
Measure capabilities |
Illuminance, spectral irradance,
CIE 1931, 1976, 1921 chromaticity coordinates, peak wave length, CCT, CRI Ra, R1~R15
foot candle, TLCI, Flicker-%, Delta-UV, LB/CC, TM30-15, SPD and more. |
Digital resolution |
16 bits |
Accuracy |
Illuminance, flicker +/- 5%,
CCT +/- 2%, CRI +/- 1,5% |
size |
147 x 78 x 24 mm, 250 gr |
