USB-Camera Touptek XFCAM-1080PHB, HDMI, WiFi, SD-Card

Touptek-XFCAM-1080PHB, HDMI, WiFi, SD-Dard

METOCHECK edition with tightest tolerances, each camera is tested inhouse at Asmetec

OEM-No. ToupCam XFCAM1080PHB

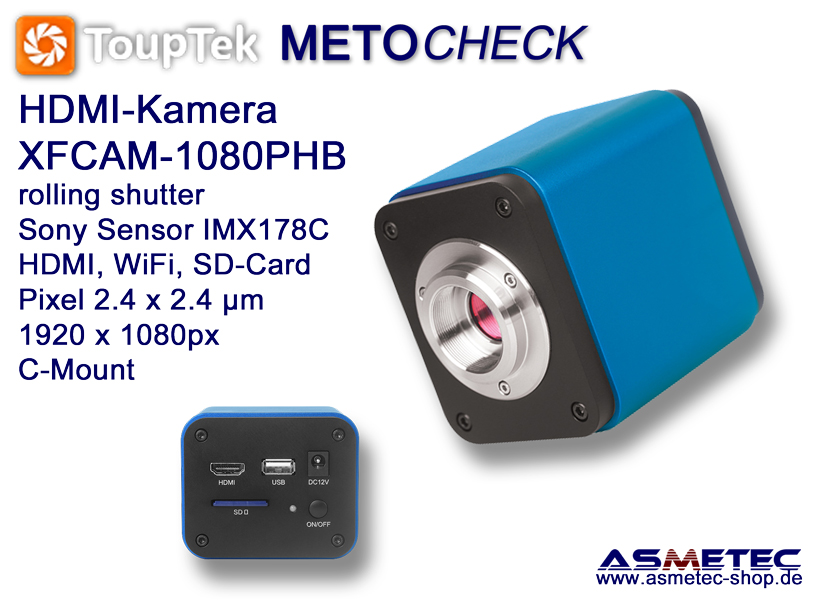

comes with C-mount, Sony CMOS sensor, Wifi Adfapter, HDMI-Output

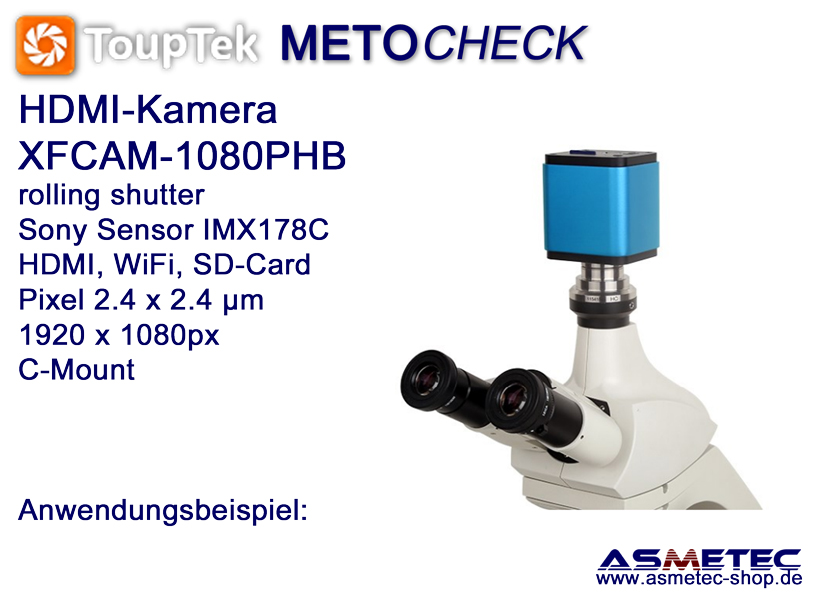

The Touptek USB camera with C-mount thread (ISO 10935: 1996) is a simple and high-quality method to upgrade microscopes and telescopes into digital systems. The USB camera replaces or supplements the standard eyepiece of a microscope. The supplied software with a English user interface enables measurements (lengths, areas, angles, circles, etc.) and image comments, single images and film recordings - ideal for quality control and assurance, use as teaching aids, for demonstration purposes and presentations, school, hobby and job.

The integrated Sony CMOS sensor IMX178C - 1 / 1.8 "(6.22 x 4.67 mm) with greatly improved image geometry, contrast and sensitivity shows even edge areas absolutely sharp with a pixel size of 2.4 µm x 2.4 µm. Image storage is optional via WiFi or SD card (not included in delivery).

The camera can be connected directly to an HDMI monitor, the XCAm-View software superimposes the monitor image with the controls, which are then controlled via the mouse on the camera's USB port. For wireless transmission, a WiFi adapter is connected to the camera instead of the mouse and the computer is then connected to this adapter. With wireless and WiFi transmission, the camera allows manual and auto focus. Wireless and HDMI can be operated in parallel.

Windows (from XP), Linux, Android and MacOS are suitable as operating systems for the supplied software. The camera is supplied with energy via the supplied 12 V power adapter.

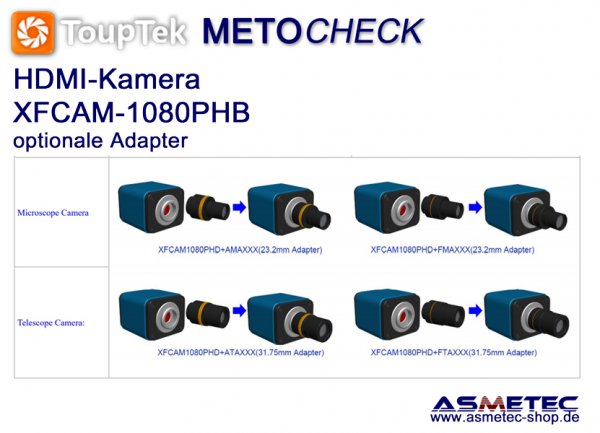

Optionally, a plurality of adapters for brands microscopes (for example, Nikon, Olympus, Leica, Huvitz etc.) is available, including those for eyepiece 23.2 mm. Hereby, this camera can also be used instead of the eyepiece in small microscopes such as Peak can be used 2034/2054/2064 or METOCHECK YM7504 Series.

Camera adapters you can find here  We recommend adapter 0,50x


Benefits:

• All in 1( HDMI+WiFi) C-mount camera with Sony high sensitivity CMOS sensor;
• 1920 × 1080 (1080P) video resolution;
• Record 1080P video(ASF format) into SD card;
• 5~2M resolution captured image(XFCAM1080PHB/PHD);
• HDMI/WiFi output simultaneously;
• Auto/Manual focus with the movement of the sensor;
• For HDMI output, XCamView is used to control the camera;
• For WiFi output, ToupView/ToupLite is used to control the camera;
• Ultra-Fine Color Engine with perfect color reproduction capability(WiFi);
• With advanced video & image processing application ToupView/ToupLite;
• Windows/Linux/macOS/Android multi-platform SDK;
• CNC Camera housing;

The complete carefree package - only available at Asmetec:
Each camera ist tested prior shipping inhouse at Asmetec.
Detailed installation guide
Detailed manual how to use the software
free after sale service

Main technical data:
Sensor: Sony IMX 178C, CMOS, 1080p 1/1.8"
USB-Port 2.0 (auch für 3.0 geeignet)
G-Sensivity: 425 mV - 1/30 s
Dark signal: 0.15 mV - 1/30 s
FPS resolution: 30 fps - 1920 x 1080 (HDMI) - 25 fps - 1080x1920 (WiFi)
Exposure: ERS (electronic rolling snap) 0.03 ~ 918 ms
Pixel size: 2.4 x 2.4 µm
Binning: 1x1,
Power supply: 12V / 1 A
PC-System: Windows/Linux/Mac OS multiple platforms SDK
Wifi: 802.11n 150Mbps; RF Power 20dBm(Maximum)
max connection  range: 3~6 m (depending on environemtal conditions)

Scope of delivery:
USB-Camera with C-Mount
Power adapter 12 VDC
HDMI-cable
USB-Mouse
WiFi-Adapter
Software on CD
