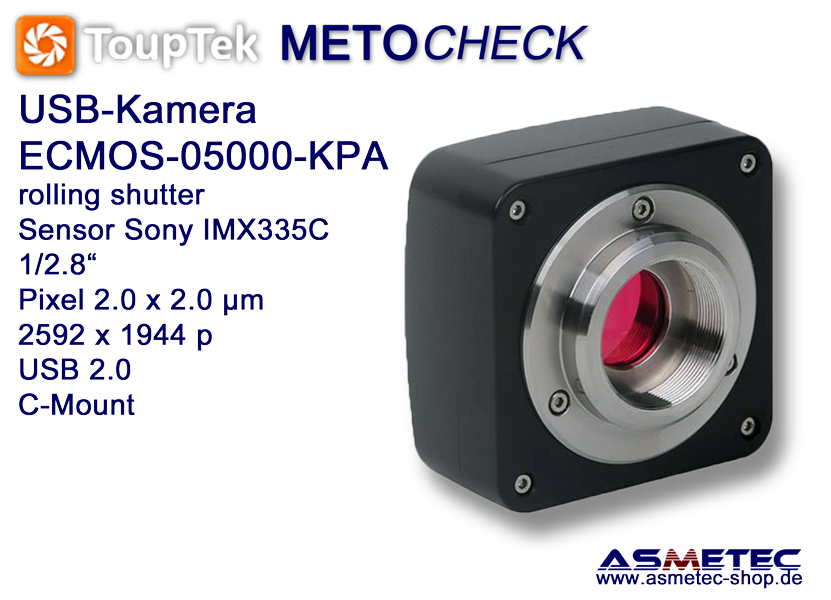

USB-Camera Touptek-ECMOS-05000KPA, 5.0 MPix, USB 2.0
Touptek-ECMOS-05000KPA, USB 2.0 microscope camera 5.0 MPix
METOCHECK edition with tightest tolerances, comes with special Asmetec accessories
OEM-Code ToupCam ECMOS05000KPA
comes with C-mount, SONY Exmor back-illuminated CMOS sensor IMX335-C, USB2.0 interface.
The Touptek USB camera with C-mount thread (ISO 10935: 1996) is a simple and high-quality method to upgrade microscopes and telescopes into digital systems. The USB camera replaces or supplements the standard eyepiece of a microscope. The software supplied with multi lingual user interface allows measurements (lengths, areas, angles, circles etc.) as well as image comments, frame and movie captures - ideal for quality control and assurance, use as a teaching tool for demonstration purposes and presentations, school, hobby and profession.The integrated SONY Exmor CMOS sensor IMX335-C, 1/2.8 "(5.18 x 3.96 mm) with greatly improved picture geometry, contrast and sensitivity presents itself edge regions with absolute sharpness is in pixel size of 2.0 x 2.0 µm. The Sony Exmor sensor has the highest sensitivity and lowest noise with the help of 2 CDS(correlated double sampling) procedure. This feature guarantee that the ECMOS camera is perfect for fluorescence microscope application, astronomy application and other dark field application, as well as the bright field application. ECMOS camera can be used to replace the traditional CCD camera to some extent since its unique features, including high sensitivity, low noise, and group shutter (only some sensor has group shutter). Thanks to USB2.0, the frame rate is fast and 8bit, 12/14/16bit data transfer can be available and switchable.Through USB 2.0 fast comes data transfer and power supply via a single cable. An integrated IR filter protects the sensor.
The camera operates with no moving parts. It is embedded in a robust cast aluminum housing and is in precision and robustness many other industrial cameras clearly superior.
Optionally, a plurality of adapters for brands microscopes (for example, Nikon, Olympus, Leica, Huvitz etc.) is available, including those for eyepiece 23.2 mm. Hereby, this camera can also be used instead of the eyepiece in small microscopes such as Peak can be used 2034/2054/2064 or METOCHECK YM7504 Series. Thanks to the fast USB 3.0 the camera has a high frame rate, the data transmission can be shifted from 8bit, to 12/14bit.
Camera adapters you can find here For this model we recommend adapter 0.37x magnification.
ECMOS cameras come with the integrated CNC aluminum alloy compact housing and come with advanced video & image processing application ToupView, Providing Windows/Linux/ OSX multiple platforms SDK; Native C/C++, C#, DirectShow, Twain Control API.
The complete carefree package - only available at Asmetec:
Detailed installation guide
Detailed manual how to use the software
1 x METOCLEAN clean wipe
free after sale service
Main technical data:
Sensor: Sony Exmor IMX335-C, CMOS, 5.0 MPix, 1/2.8"
USB-Port 2.0
G-Sensivity: 505 mV with 1/30 s
Dark signal: 0,13 mV with 1/30 s
FPS/Resolution 6.4 fps - 2592 x 1944 px, 26.7 fps - 1296 x 972 px
Exposure: 0.1 ms ~ 15 s
Pixel size: 2.0 x 2.0 µm
Binning: 1x1, 2x2
Data rate: 8bit 12/14 bit
Power supply: USB-Port 5VDC
PC-System: Windows/Linux/Mac OS multiple platforms SDK
Native C/C++, C#/VB.Net, DirectShow, Twain, LabView
Supply:
USB-camera with C-Mount
USB-cable
Software
manual
Technical Data
| Beschreibung | Daten / Data | Description |
| Markenname | Touptek | Brand name |
| Modell | ECMOS05000KPA | Model |
| Gewinde | C-Mount | Thread |
| USB | USB 2.0 | USB |
| Pixel | 5.0 MPix | Pixel |
| Pixelgröße | 2.0 x 2.0 µm | Pixel size |
| Sensor | Sony Exmor IMX335-C, CMOS | Sensor |
| Sensor Größe | 1/2.8" - 5.18 x 3.89 mm | Sensor size |
| G-Empfindlichkeit | 505 mV - 1/30 s | G-Sensivity |
| Dunkelsignal | 0.13 mV - 1/30 s | Dark signal |
| FPS | 6.4 fps - 2592 x 1944 px, 26.7 fps - 1296 x 972 px | FPS |
| Binning | 1x1, 2x2 | Binning |
| Belichtung | 0.1 ms ~ 15 s | Exposure |
| Spekralbereich | 380 - 650 nm (mit IR-Filter) | Spectral range |
| Weißabgleich | ROI White Balance/ Manual Temp Tint Adjustment/NA for Monochromatic Sensor | Whie balance |
| Capture | Windows/Linux/macOS/Android Multiple Platform SDK(Native C/C++, C#/VB.NET, Python, Java, DirectShow, Twain, etc) | Capture |
| Aufnahme | Einzelbild, Film - still picture, movie | Recording |
| Kühlung | Umgebungsluft | Cooling |
| Betriebsbereich | -10~+50°C, 30-80% rH | Operating environment |
| Lagerbereich | -20~+60°C, 10-60% rH | Storage |
| Spannungsversorgung | 5VDC via USB-Port | Power supply |
| Abmessungen | 58 x 58 x 36 mm | Sizes |
| Betriebssystem | Microsoft® Windows® XP / Vista / 7 / 8 /10 (32 & 64 bit) OSx(Mac OS X) Linux | Operating system |
| PC-Anforderungen | CPU > 2.8 GHz, USB 3.0, Monitor > 17", CD-Rom | PC-Requirement |
| Toleranz techn. Daten | +/- 10% | Tolerance techn. Data |
| Vergrößerung | Elektronische Vergrößerung = Pixels des Monitors/ Pixel des Sensors, Optische Vergrößerung = Objektivvergrößerung x Reduktionslinse, Systemvergrößerung = elektronische x optische Vergrößerung - Electronic magnification= pixels of full screen monitor/ pixel of sensor, Optical magnification= objective magnification x reduction lens magnificaion, system magnification = elextronic x optical maginification | Magnification |
| Hinweis | Die tatsächliche Vergrößerung ist abhängig von vorhandenen Objektiven, Adaptern, Abständen und der Monitorgröße - The magnification is determined by used objectives, adapters, distances and monitor size. | Notes |
| Technische Daten | basieren auf Herstellerangaben, können ohne Voranzeige geändert werden, Irrtum vorbehalten - based on manufacturers data, may be changed without prior notice, errors and omissions excepted | Technical data |
