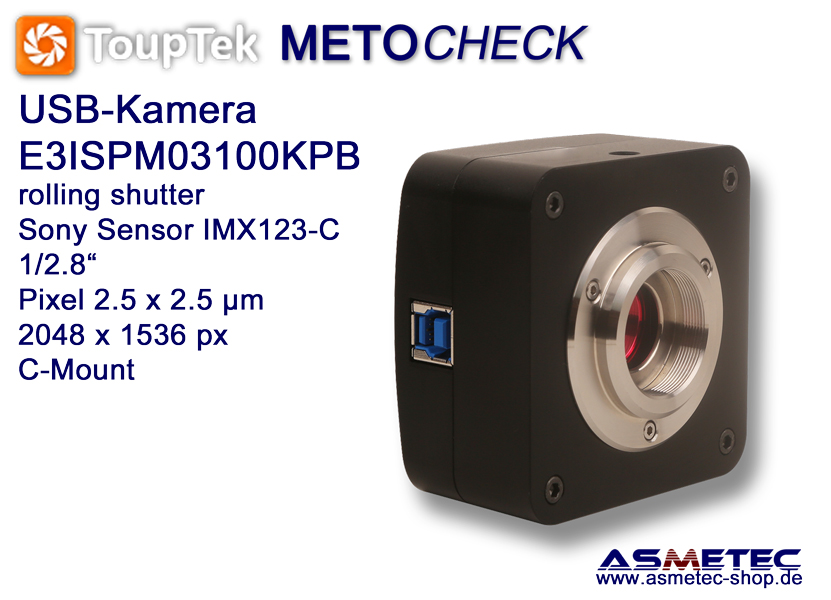

USB-Camera Touptek-E3ISPM-03100KPB, 3.1 MPix, USB 3.0

Touptek-E3ISPM-03100KPB, USB 3.0 microscope camera 3.1 MPix

METOCHECK edition with tightest tolerances, each camera is tested inhouse at Asmetec.

OEM code: E3ISPM03100KPB-E3 - IP103100B


comes with C-mount, Sony Exmor CMOS sensor IMX 123, C-Version (rolling Shutter), USB3.0 interface.

The Touptek USB camera with C-mount thread (ISO 10935: 1996) is a simple and high-quality method to upgrade microscopes and telescopes into digital systems. The USB camera replaces or supplements the standard eyepiece of a microscope. The software supplied with multi lingual user interface allows measurements (lengths, areas, angles, circles etc.) as well as image comments, frame and movie captures - ideal for quality control and assurance, use as a teaching tool for demonstration purposes and presentations, school, hobby and profession.

This camera is ideal for dark field imaging.

The integrated Sony Exmor sensor IMX 123, 1/2.8" (5,12x3,84 mm) with greatly improved picture geometry, contrast and sensitivity presents itself edge regions with absolute sharpness is in pixel size of 2,5 microns x 2,5 microns. E3ISPM integrated with 12 bit Ultra-fineTM Hardware Image Signal Processor Video Pipeline(Ultra-fineTM HISP VP) for Demosaic, Adjustments, Automatic Exposition, Gain Adjustment, One Push White Balance, Chrominance Adjustment, Saturation Adjustment, Gamma Correction, Luminance Adjustment, Contrast Adjustment, Bayer and finally form RAW data for 8/12 bit output. This will move the heavier burden of the processing from the PC to the Ultra-fineTM HISP VP and greatly accelerating the processing speed.
USB 3.0 interface assures high data transfer and power supply via a single cable. An integrated IR filter protects the sensor. The camera operates with no moving parts. The GS-Version (global shutter) is perfect for Stitching Images and EDP-Live function.It is embedded in a robust cast aluminum housing and is in precision and robustness many other industrial cameras clearly superior.

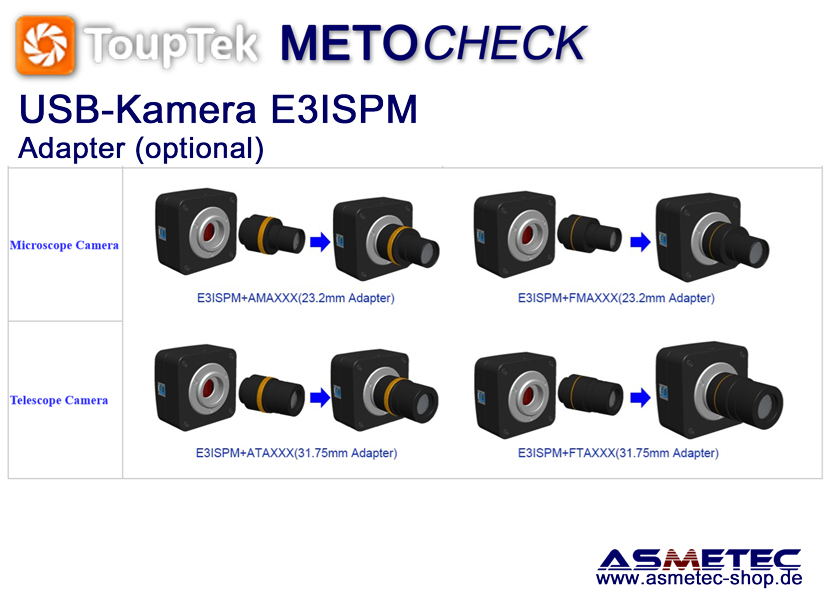

Optionally, a plurality of adapters for brands microscopes (for example, Nikon, Olympus, Leica, Huvitz etc.) is available, including those for eyepiece 23.2 mm. Hereby, this camera can also be used instead of the eyepiece in small microscopes such as Peak can be used 2034/2054/2064 or METOCHECK YM7504 Series. Thanks to the fast USB 3.0 the camera has a high frame rate, the data transmission can be shifted from 8bit, to 12/14bit.

Camera adapters you can find here  We recommend 0,50x Adapter (not included to package)

E3ISPM cameras come with the integrated CNC aluminum alloy compact housing and come with advanced video & image processing application ToupView, Providing Windows/Linux/ OSX multiple platforms SDK; Native C/C++, C#, DirectShow, Twain Control API.


The complete carefree package - only available at Asmetec:
Each camera ist tested prior shipping inhouse at Asmetec.
Detailed installation guide
Detailed manual how to use the software
1 x METOCLEAN clean wipe
free after sale service

Main technical data:
Sensor: Sony Exmor IMX 123, CMOS, 3.1 MPix, 1/2.8"
USB-Port 3.0 (not suitable for 2.0)
G-Sensivity: 600 mV - 1/30 sec
Dark signal: 0,15 mV - 1/30 sec
SNR-max 39 dB
FPS/Resolution 50 fps - 2048x1536 px / 50 fps - 1920x1080 px
Exposure: 0.1 ~ 15000 ms
Pixel size: 2,5 x 2,5 µm
Binning: 1x1
Spectral range: 380 - 650 nm
Power supply: USB-Port 5VD
PC-System: Windows/Linux/Mac OS multiple platforms SDK
Native C/C++, C#/VB.Net, DirectShow, Twain, LabView

Supply:
USB-camera with C-Mount
USB-cable
Software
manual
