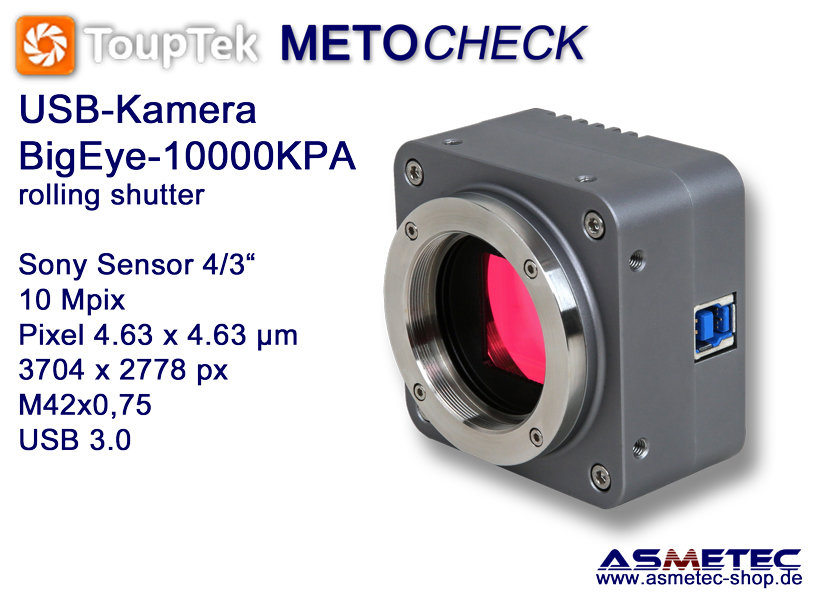

USB-Camera Touptek-BigEye-10000KPA, M42x0,75 mm, 10.0 MPix, USB 3.0
Touptek-BigEye-10000KPA, M42x0,75mm, USB 3.0, 10,0 MPix
METOCHECK edition with tightest tolerances, each camera comes with Asmetec accessories
OEM-Code: ToupCam BigEye10000KPA
comes with M42 x 0,75 mm thread for F-Mount-Adapters.
The BigEye camera series is equipped with scientific CMOS sensors from Sony or Gsense with backlighting. The data transfer takes place via the USB 3.0 port.F-mount adapters for use with corresponding camera lenses, C-mount adapters or phototubes for microscopes from Olympus, Nikon, Zeiss, Leica and other microscopes can be connected via the M42x0.75 mm thread.
Like all Touptek cameras, the BigEye series is also supplied with software that enables extensive image processing, storage, 2D measurements and much more.
The software runs on Windows / Linux / OSX SDK for multiple platforms; Native C / C ++, C # / VB.NET, DirectShow and Twain Control API.
The integrated, back-illuminated Sony CMOS sensor IMX294-C, 4/3" (17.47 x 12.86 mm) with greatly improved picture geometry, contrast and sensitivity presents itself edge regions with absolute sharpness is in pixel size of 4.63 x 4.63 µm. Through USB 3.0 fast comes data transfer and power supply via a single cable. An integrated IR filter protects the sensor. The camera operates with no moving parts. It is embedded in a robust cast aluminum housing and is in precision and robustness many other industrial cameras clearly superior.

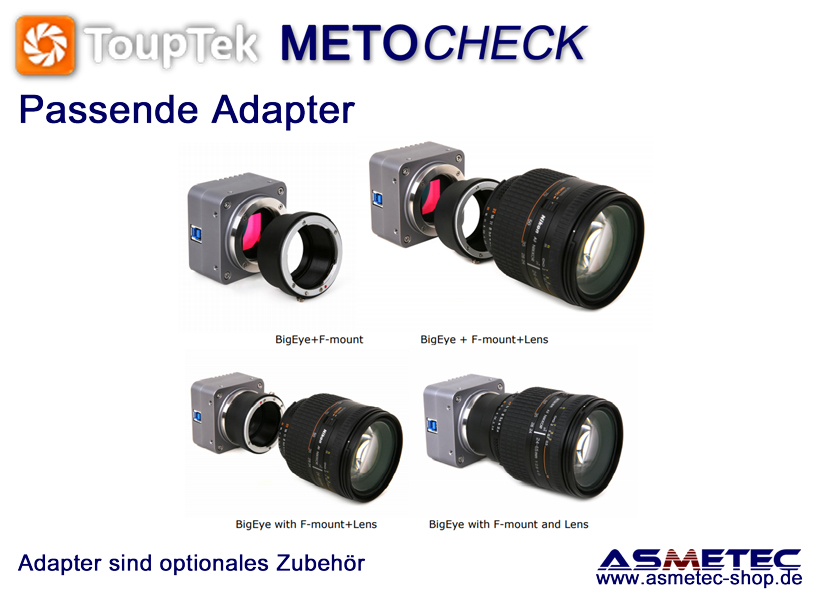

Optionally, a plurality of adapters and extenrion sings for brands microscopes (for example, Nikon, Olympus, Leica, Huvitz etc.) is available, including those for C-Mount. Thanks to the fast USB 3.0 the camera has a high frame rate.
Camera adapters you can find here
The complete carefree package - only available at Asmetec:
Each camera ist tested prior shipping inhouse at Asmetec.
Detailed installation guide
Detailed manual how to use the software
1 x METOCLEAN clean wipe
free after sale service
Main technical data:
Sensor: Sony CMOS, 10.0 MPix, 4/3"
USB-Port 3.0 (not suitable for 2.0)
G-Sensivity: 419 V - 1/30 s
Dark signal: 0,12 mV - 1/30 s
FPS/Resolution 30 fps - 3704x2778 / 34.5 fps - 4096x2160 / 39.5 fps - 2760x2072 / 62 fps - 2048x1080 / 86 fps - 1360x720 px
Binning: 1x1, 2x2, 3x3
Exposure: 0,1 ms - 15 s
Pixel size: 4.63 x 4.63 µm
Spectral range: 200-1100nm (UV with IR-cut Filter) or 400-900nm
Power supply: USB-Port 5VDC
PC-System: Windows / Linux / Mac OS multiple platforms SDK
Native C/C++, C#/VB.Net, DirectShow, Twain, LabView

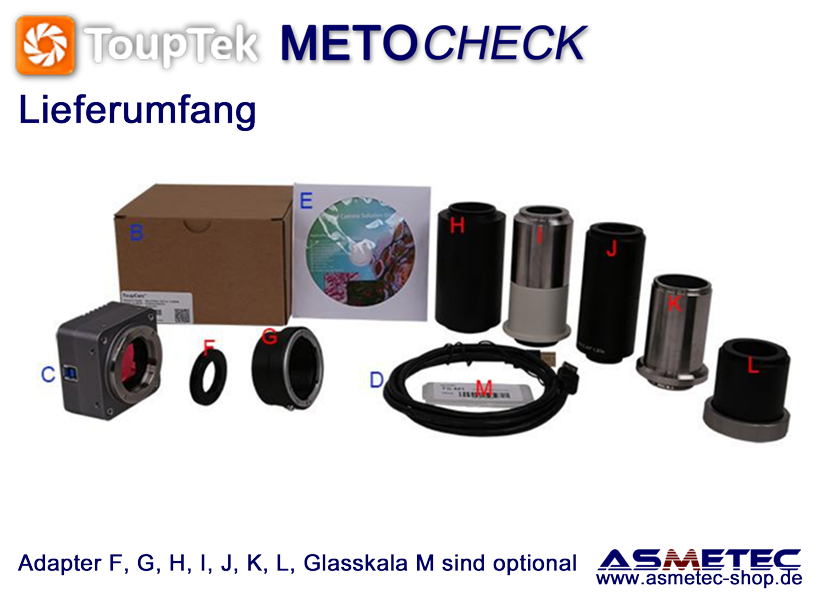

Supply:
USB-camera
USB-cable
Software on CD-rom
Technical Data
| Beschreibung | Daten / Data | Description |
| Markenname | Touptek | Brand name |
| Modell | Touptek-BigEye10000KPA | Model |
| Gewinde | M42 x 0,75mm | Thread |
| USB | USB 3.0 | USB |
| Pixel | 10.0 MPix | Pixel |
| Pixelgröße | 4.63 x 4.63 µm | Pixel size |
| Sensor | Sony CMOS | Sensor |
| Sensor Größe | 4/3" - 17.47 x 12.86 mm | Sensor size |
| G-Empfindlichkeit | 419 mV - 1/30 s | G-Sensivity |
| Dunkelsignal | 0,12 mV - 1/30 s | Dynamic range |
| FPS | 30 fps - 3704x2778 / 34.5 fps - 4096x2160 / 39.5 fps - 2760x2072 / 62 fps - 2048x1080 / 86 fps - 1360x720 px | FPS |
| Binning | 1x1 / 2x2 / 3x3 | Binning |
| Belichtung | 0,1 ms -15 s | Exposure |
| Spekralbereich | 200-1100nm (UV without IR-cut Filter) or 400 - 900 nm | Spectral range |
| Weißabgleich | ROI White Balance/ Manual Temp Tint Adjustment/NA for Monochrom | Whie balance |
| Capture | Windows/Linux/macOS/Android Multiple Platform SDK(Native C/C++, C#/VB.NET, Python, Java, DirectShow | Capture |
| Aufnahme | Einzelbild, Film - still picture, movie | Recording |
| Kühlung | Umgebungsluft | Cooling |
| Betriebsbereich | -10~+50°C, 30-80% rH | Operating environment |
| Lagerbereich | -20~+60°C, 10-60% rH | Storage |
| Spannungsversorgung | 5VDC via USB-Port | Power supply |

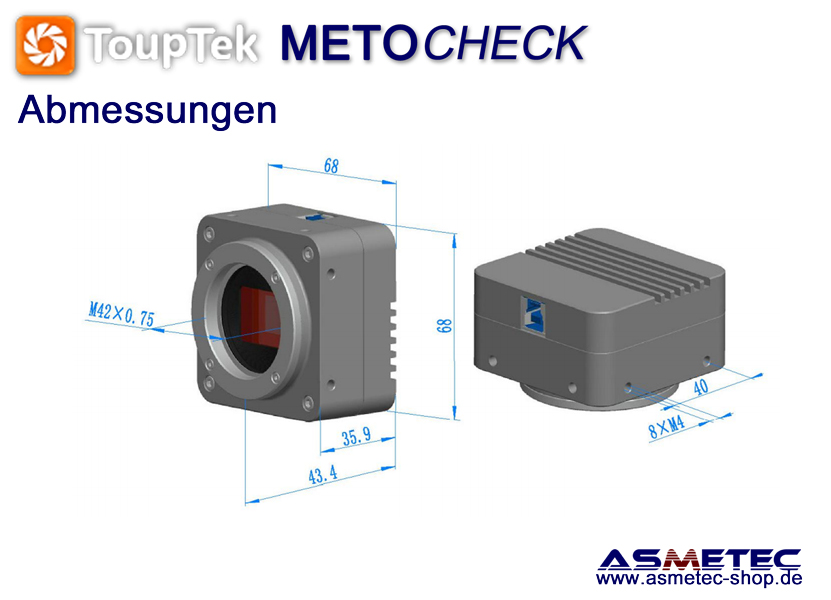

| Abmessungen | 68 x 68 x 43 mm mm | Sizes |
| Betriebssystem | Microsoft Windows XP / Vista / 7 / 8 / 10 (32 & 64 bit) OS X (Mac OS X), Linux | Operating system |
| PC-Anforderungen | CPU > 2.8 GHz, USB 3.0, Monitor > 17", CD-Rom | PC-Requirement |
| Toleranz techn. Daten | +/- 10% | Tolerance techn. Data |
| Vergrößerung | Elektronische Vergrößerung = Pixels des Monitors/ Pixel des Sensors, Optische Vergrößerung = Objektivvergrößerung x Reduktionslinse, Systemvergrößerung = elektronische x optische Vergrößerung - Electronic magnification= pixels of full screen monitor/ pixel of sensor, Optical magnification= objective magnification x reduction lens magnificaion, system magnification = elextronic x optical maginification | Magnification |
| Hinweis | Die tatsächliche Vergrößerung ist abhängig von vorhandenen Objektiven, Adaptern, Abständen und der Monitorgröße - The magnification is determined by used objectives, adapters, distances and monitor size. | Notes |
| Technische Daten | basieren auf Herstellerangaben, können ohne Voranzeige geändert werden, Irrtum vorbehalten - based on manufacturers data, may be changed without prior notice, errors and omissions excepted | Technical data |
