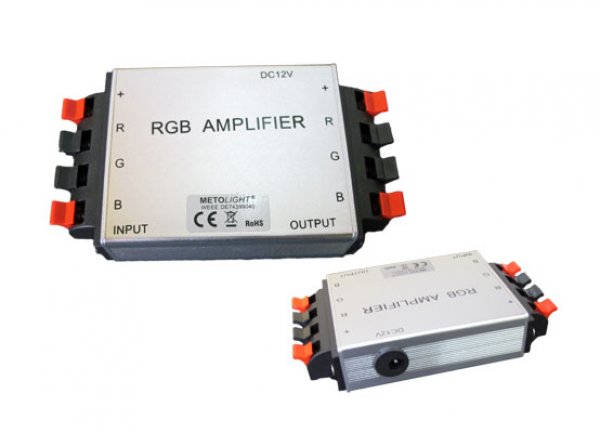

RGB- Amplifier 12 V DC, 3x4 A - 144 Watt, IP20

RGB Amps are needed to amplify the digital controller signals and to feed additional power to theLED-lights.
This amp comes with spring loaded contacts for easy wiring and a 5,5 mm socket for additional power supply

It can be used for any RGB  controller to increase the driving power.

Input 1: 12 V DC via 5,5 mm female plug 8 as provided by many LED drivers)
Input 2: 12 V DC + RGB signal via 4pin spring loaded contacts
Output:  12 V DC +RGB signal via 4pin spring loaded contacts

This RGB-Amp is connected between 2 RGB-luminaires such as RGB LED-strips, good for 10 m RGB LED strip 72 Watt each.

The driver can be loaded by max. 4 A per channel = 144 Watt at 12 Volt

Input: 12 VDC
Output: 12 VDC 3 x 4 A, max
Power: 144 W max
Current: 3 x 4 A
Sizes: 115 x 62 x 23 mm
Gewicht: 98 g



installation only by expert, correct lectrical polarity needs to be observed, else led strips will be damaged
please ensure that the wattage of the power supply and (optional) controller is enough to supply the LED-strips.

Damaging by wrong connection or corrosion will not be honoured as materials defect.
