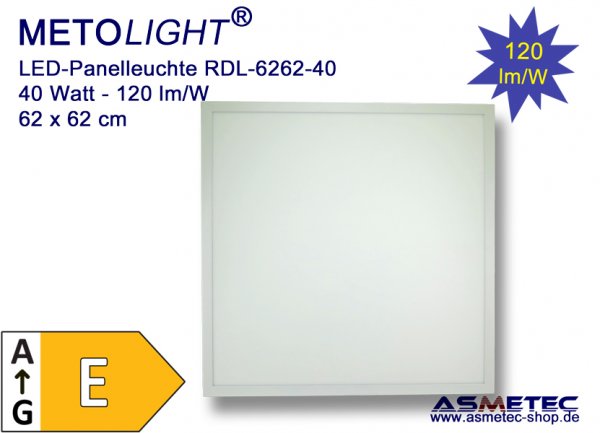

LED panel light 6262-40W-NW-120, 40 Watt, 4600 lm, nature white

METOLIGHT LED panel light 6262-40W-NW-120, 40 Watt, 4600 lm, nature white

LED flat light 62 x 62 cm for installation in grid ceilings 625 mm

For grid ceilings 625 mm, incl. constant current power supply 25-42 VDC - 800-1050 mA. Replaces grid ceiling luminaires with 4 x 18 Watt CFL-tubes.

Product description:
LED panel flat light with high-performance SMD LEDs 120 lm / W - CRI Ra> 85, only 11 mm thick for installation in grid ceilings (for example, Odenwald ceilings) with ceiling grid 625 mm. The LEDs are installed in the side of the aluminum frame. An acrylic reflection plate with thousands of laser bores directs the side-irradiated LED light by 90 ° onto a matt diffusing plate, which distributes the light at an angle of approx. 120 ° without shadow and glare-free (UGR <18, x 4H, y 8H).
This LED panel light is particularly flat with a height of only 11 mm. It can optionally be inserted into grid ceilings or, by means of optional spring clips, e.g. In plasterboard panels. An optional mounting frame also allows mounting on walls or ceilings. The robust frame made of white powder-coated (RAL 9010) aluminum corresponds to class IP52 and serves as a luminaire carrier and at the same time as a heat sink for the integrated LED circuit boards. This ceiling light is therefore ideal for lighting in offices, meeting rooms, corridors, but also for lighting in shops, laboratories, doctors' offices, etc.
The scope of supply includes a constant current power driver with an input voltage range of 120 - 240 VAC, output voltage 25 - 42 VDC - 800-1050 mA. The special feature of the CC supply is the higher efficiency as well as the integrated protection against overheating. As an option, we also supply dimmable power supplies (PWW, 0-12V, DALI, Casambi).

Technical specifications:
Supply voltage: 25-42 VDC - 800-1050 mA
Power consumption: 40 Watts
Light color: 4000 K - nature white
CRI Ra> 85
Luminous flux:> 4600 lm
Sizes: 620 x 620 x 11 mm
Weight: approx. 2.9 kg.

Available versions:
We supply this grid ceiling light from stock in light color 4000K neutral white.
Optionally at surcharge this light is also available in light colors warm white (3000K), pure white (5000K), cold white (6000K) and RGB. The RGB version also requires an appropriate RGB control.
We also offer this lamp in the following special versions:
- CRI Ra> 90
- waterproof IP65 (for use in damp rooms)
- with integrated UV filter 470 nm or 520 nm for use in yellow rooms.

Scope of application:
General lighting in the dry interior, e.g. in offices, hotels, restaurants, bars, shops, laboratories, doctors' offices and many more
Wall construction, ceiling installation.

Installation:
The LED luminaire is inserted into existing grid ceilings 625 mm or by means of optional spring clamps in plasterboard or wood panel cut-outs. An optional mounting frame allows the ceiling and wall mounting of the luminaire. By means of chains or ropes, this luminaire can also be pendant mounted.

Warranty:
We offer a 5 years limited warranty (see warranty conditions in download area)

Synonyms:
The grid ceiling lamps are also known as: LED panel, LED flat light, ceiling panel, ceiling light, ceiling light, light panel, pan light.
