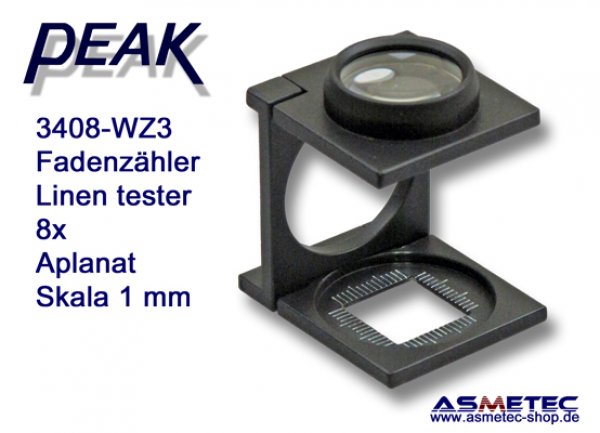

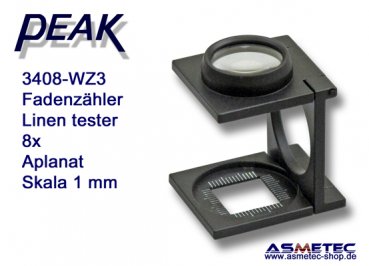

PEAK 3408-WZ3 linen tester, 8x, distortion free
PEAK 2003-3408-WZ3 Linen tester, 8x
Robust metal body thread counter, aplanat, black
This PEAK 3408-WZ3 linen tester is equipped with an 2 element aplanat glass lens for 8x maginfication with a bright image and low distortion. The black body made of robust zinc alloy reduces unwanted reflexions.
The field of view is about 15 mm, and bears scales: 15 mm - 1 mm division
Magnification: 8x
Field of view: 15 x 15 mm
Focus: non focussable
Scale: 15 mm / 1 mm division
Optic: aplanat, distortion free
Sizes: 38 x 33 x 45 mm (l x w x h)
Weight: 46 Gramm
Technical Data
| Beschreibung | Daten / Data | Description |
| Markenname | PEAK | Brand name |
| Modell | 2003-3408-WZ3 | Model |
| Vergrößerung | 8x | Magnification |
| Fokussierbar | nein / no | Focussable |
| Linsenart | Glas | Lens type |
| Linsendurchmesser | 19 mm | Lens diameter |
| Sichtfeld | 15 mm | Field of view |
| Optik | aplanat | Optic |
| verzeichnungsfrei - distortion free | ||
| Skala | ja / yes | Scale |
| Messlänge | 15 mm | Scale Length |
| Skalenteilung | 1 mm | Scale division |
| Lupenkörper | Zink-Legierung - Zinc alloy | Lupe Body |
| Abmessung | 38 x 33 x 45 mm | Sizes |
| Gewicht | 46 gr | Weight |
| Toleranz techn. Daten | +/- 10% | Tolerance techn. Data |
| Hinweis | Mit Lupen niemals in das Sonnenlicht blicken, Gefahr der Augenverletzung, Lupen nicht unbeaufsichtigt im Tageslicht liegen lassen, Brandgefahr - Do not look into sun with magnifier - eyes may be injured, don't leave magnifier unattended in daylight - risk of catching fire | Notes |
