PEAK 3407-SA3 linen tester, 7x
PEAK 2003-3407-SA3 Linen tester, 7x
Robust metal body thread counter, black

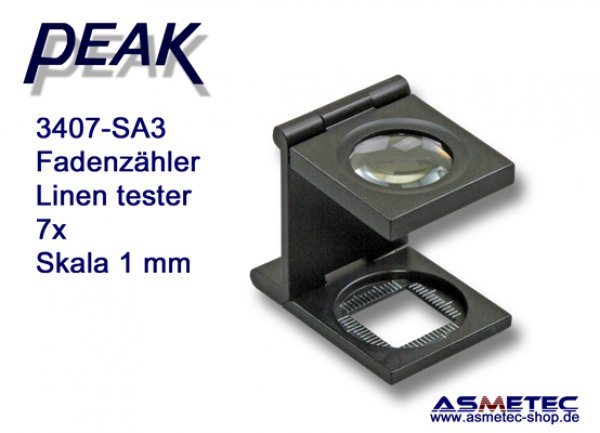

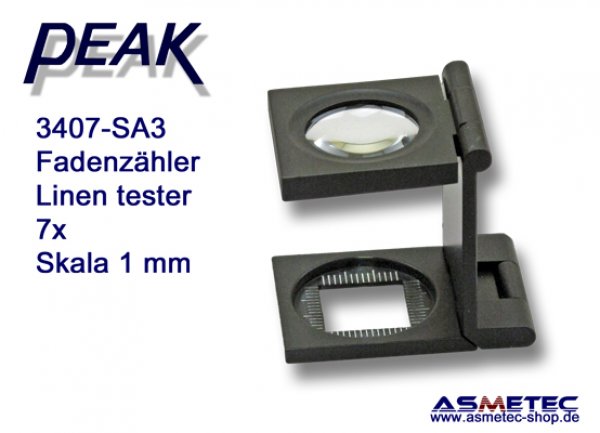

This PEAK 3407-SA0 linen tester is equipped with a biconvex glass lens for 7x maginfication with a bright image and low distortion.
The field of view is about 15 mm, the robust aluminium frame has a solid black colour treatment and bears a scale of 7 mm length, division 1 mm.
Magnification: 7x
Field of view: 15 x 15 mm
Focus: non focussable
Scale: 7 mm / 1 mm division
Optic: biconvex
Sizes: 44 x 30 x 41 mm (l x w x h)
Weight: 26 Gramm
Technical Data
| Beschreibung | Daten / Data | Description |
| Markenname | PEAK | Brand name |
| Modell | 2003-3407-SA3 | Model |
| Vergrößerung | 7x | Magnification |
| Fokussierbar | nein / no | Focussable |
| Linsenart | Glas | Lens type |
| Linsendurchmesser | 15 mm | Lens diameter |
| Sichtfeld | 15 mm | Field of view |
| Optik | bikonvex | Optic |
| leichte Verzeichnung / low distortion | ||
| Skala | ja / yes | Scale |
| Messlänge | 15 mm | Scale Length |
| Skalenteilung | 1 mm | Scale division |
| Lupenkörper | Aluminium | Lupe Body |
| Abmessung | 44 x 30 x 41 mm | Sizes |
| Gewicht | 26 gr | Weight |
| Toleranz techn. Daten | +/- 10% | Tolerance techn. Data |
| Hinweis | Mit Lupen niemals in das Sonnenlicht blicken, Gefahr der Augenverletzung, Lupen nicht unbeaufsichtigt im Tageslicht liegen lassen, Brandgefahr - Do not look into sun with magnifier - eyes may be injured, don't leave magnifier unattended in daylight - risk of catching fire | Notes |
