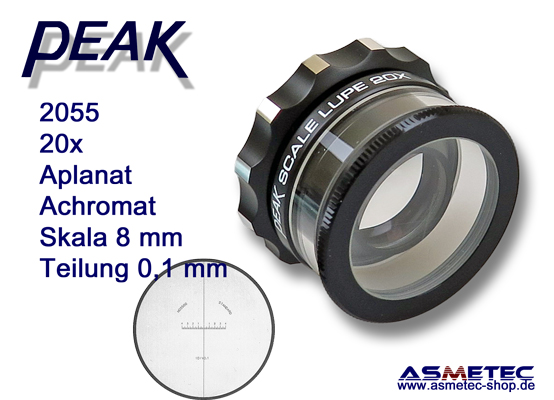

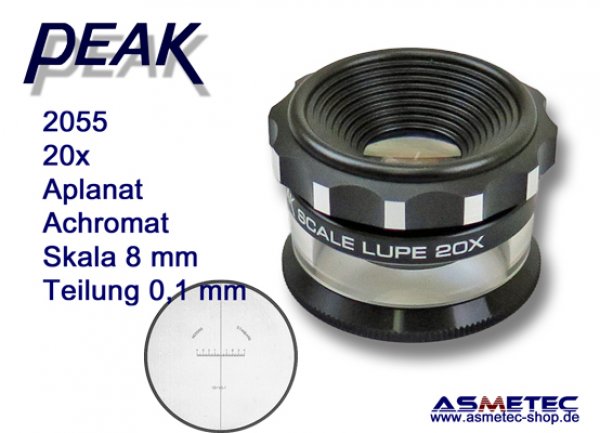

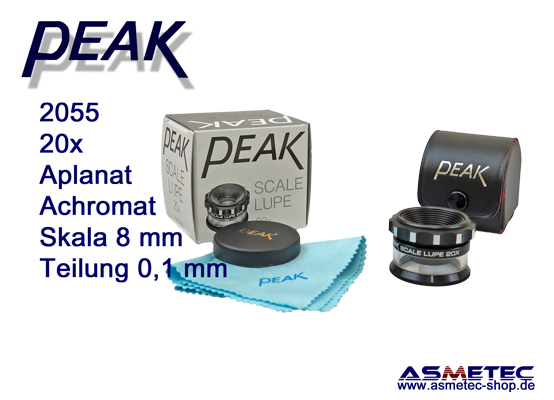

PEAK-Optics scale loupe 2055, 20x
PEAK 2055 Scale Magnifier, 20x
wide view scale loupe, achromatic
This PEAK scale loupe is equipped with an achromatic, aplanatic, scratch resistant lens system of 2 components and 4 elements for distortion-free image of the surface to be examined.Additional scales with black and white printing are available from stock.
At 20x magnification and variable focus a field of view of 12 mm is achieved.
The crystal-clear acrylic body allows ambient light incident on all sides.
Optionally this magnifier is available with light holder (2055-L)
The scale loupe and replacement scales can be shipped with calibration certificate acc. to VDI/VDE/DGQ 2618 page 27 Ü
Due to the calibration your delivery time would be expanded to 4-6 weeks
Magnification: 20x
Field of view: 12 mm
Focus: focussable
Scale: 8 mm, 0,1 mm division
Optic: aplanat, distortion free
Sizes: 35 x 23 mm (diameter x height)
Weight: 35 Gramm
Technical Data
| Beschreibung | Daten / Data | Description |
| Markenname | PEAK | Brand name |
| Modell | 2055 | Model |
| Vergrößerung | 20x | Magnification |
| Fokussierbar | ja - yes | Focussable |
| Linsenart | Glas | Lens type |
| Linsendurchmesser | 12 mm | Lens diameter |
| Sichtfeld | 12 mm | Field of view |
| Optik | aplanat | Optic |
| verzeichnungsfrei - distortion free | ||
| Skala | ja / yes | Scale |
| Messlänge | 8 mm | Scale Length |
| Skalenteilung | 0,1 mm | Scale division |
| Lupenkörper | Kunststoff -plastic, Acryl | Lupe Body |
| Abmessung | 35 x 23 mm | Sizes |
| Gewicht | 35 gr | Weight |
| Toleranz techn. Daten | +/- 10% | Tolerance techn. Data |
| Skalen | Ersatzskalen in schwarzer und weißer Schrift lieferbar - replacement scales with black and white printing available | Scales |
| Kalibrierung | Kalibierschein / calibration report acc to VDI/VDE/DGQ 2618 Blatt 27 Ü / DAkkS gegen Aufpreis - at extra cost | Calibration |
| Hinweis | Mit Lupen niemals in das Sonnenlicht blicken, Gefahr der Augenverletzung, Lupen nicht unbeaufsichtigt im Tageslicht liegen lassen, Brandgefahr - Do not look into sun with magnifier - eyes may be injured, don't leave magnifier unattended in daylight - risk of catching fire | Notes |
