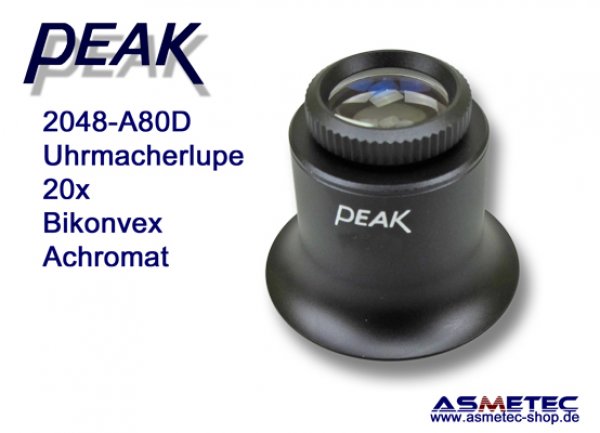

PEAK 2048-A80D, jewellers loupe, 20x
PEAK 2048-A80D, Eye-Loupe, 20x
Convenient attach-to-the eye type magnifier
PEAK watchmaker loupe 2048 A80D offers excellent optical properties, so that the eye does not tire quickly or there will be a headache.
From type 2048 A48D a second detachable bi-convex, achromatic, reflection free crown glass is being used.
The other versions from 48 diopters to 80 diopters feature anti-reflective achromatic crown glass optics.

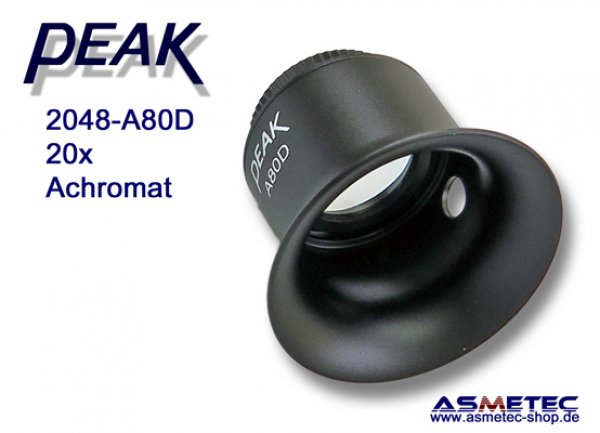

All housings have a hole so that the lenses do not fog up from the inside. The housing is made of aluminum with a matt black finish.

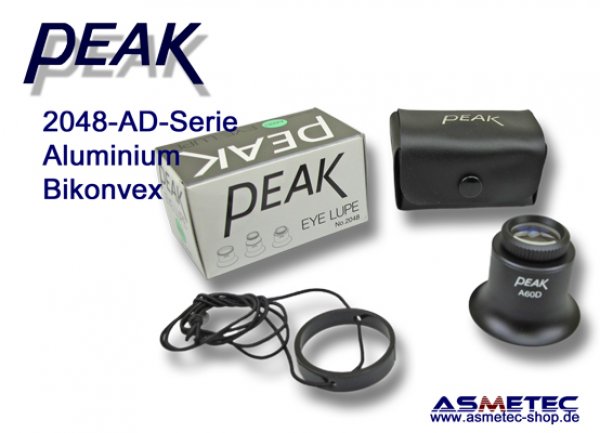

We provide this magnifier with an adjustable headband with a clamping ring, in which the magnifying glass is held. So you don't have to tuck it under the eyebrow and can move it - if not needed - to your forehead without need to remove it - this eases the work.
The magnifying glass can also be taken out of the clamping ring and used as a stand magnifier held by hand.
Magnification: 15fach
Focus: 12,5 mm
Lens diameter: 10 mm
Eyepiece diameter: 37 mm
Height: 30 mm
Focus: via working distance
Weight: 13 gr
Optics: biconvex, not distortion free
Technical Data
| Beschreibung | Daten / Data | Description |
| Markenname | PEAK | Brand name |
| Modell | 2048-A80D | Model |
| Vergrößerung | 20x | Magnification |
| Fokussierbar | nein / no | Focussable |
| Linsenart | Glas | Lens type |
| Linsendurchmesser | 10 mm | Lens diameter |
| Optik | bikonvex, achromat | Optic |
| nicht verzeichnungsfrei / not distortion free | ||
| Skala | ohne / none | Scale |
| Brennweite | 12 mm | Focus width |
| Lupenkörper | Aluminium | Lupe Body |
| Abmessung | 37 x 30 mm | Sizes |
| Gewicht | 13 gr | Weight |
| Toleranz techn. Daten | +/- 10% | Tolerance techn. Data |
| Hinweis | Mit Lupen niemals in das Sonnenlicht blicken, Gefahr der Augenverletzung, Lupen nicht unbeaufsichtigt im Tageslicht liegen lassen, Brandgefahr - Do not look into sun with magnifier - eyes may be injured, don't leave magnifier unattended in daylight - risk of catching fire | Notes |
