PEAK-Optics Zoom Loupe 2044 (816), 8-16x
PEAK 2044, zoom scale loupe 8-16x
scale loupe with glas scale, aplanat, achromat, zoomable

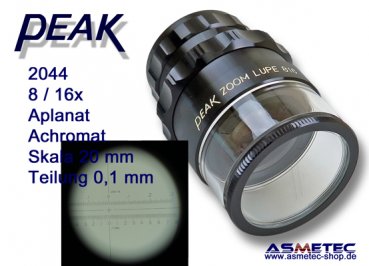

The PEAK 2044 Measuring magnifier allows an infinitely variable magnification zoom by 8-16fach. The lens system consists of 8 elements in 6 groups. The lenses with an antireflective coating are largely free of distortion whereby a precise measurement is possible. The magnifying glass can be focused by rotating the focus ring. The click-stop diaphragm helps in selecting the magnification of 8x, 10x, 12x, 14x and 16x.
Before starting the measurement you move the ring at the bottom of the lens body and choose the optimal magnification. After this selection, you adjust the focus on the eye cup so that the built-in scale is clearly visible.

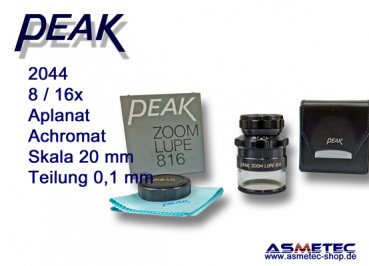

We supply this scale loupe in standard with a metric and imperial combi-scale, length 20 mm with 0.1 mm and 0.005" division in a synthetic leather bag

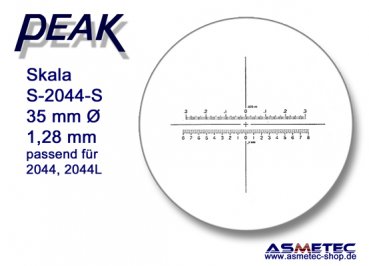

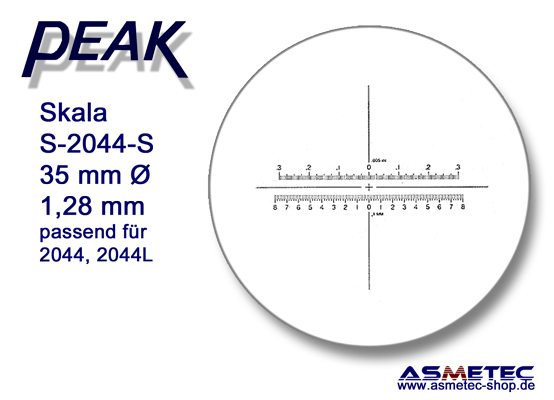

Replacement scales and accessories can be found here:
Of course we offer at extra cost a calibration certificate according to VDI / VDE / DGQ 2618 page 27 Ü.
This magnifier is also available with lighting kit as PEAK 2044-L
Magnification: 8-16x
Field of View: 20-10 mm
Focus: yes
Scale: 20 mm, division: 0,1 mm + 0.005"
Optic: aplanat, achromat, distortion free
Sizes: 45 x 65 mm (diameter x height)
Weight: 149 Gramm
Technical Data
| Beschreibung | Daten / Data | Description |
| Markenname | PEAK | Brand name |
| Modell | 2044 | Model |
| Vergrößerung | 8-16X | Magnification |
| Fokussierbar | ja - yes | Focussable |
| Linsenart | Glas | Lens type |
| Linsendurchmesser | 8 mm | Lens diameter |
| Sichtfeld | 20-10 mm | Field of view |
| Optik | aplanat | Optic |
| verzeichnungsfrei - distortion free | ||
| Skala | ja / yes | Scale |
| Messlänge | 20 mm | Scale Length |
| Skalenteilung | 0,1 mm - 0.005" | Scale division |
| Lupenkörper | Kunststoff -plastic, Acryl | Lupe Body |
| Abmessung | 45 x 65 mm | Sizes |
| Gewicht | 149 gr | Weight |
| Toleranz techn. Daten | +/- 10% | Tolerance techn. Data |

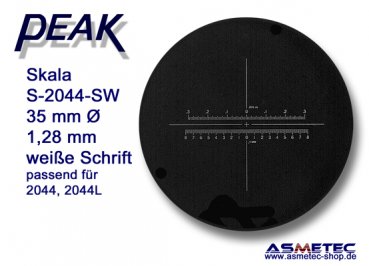

| Skalen | Ersatzskalen in schwarzer und weißer Schrift lieferbar - replacement scales with black and white printing available | Scales |
| Kalibrierung | Kalibierschein / calibration report acc to VDI/VDE/DGQ 2618 Blatt 27 Ü / DAkkS gegen Aufpreis - at extra cost | Calibration |
| Hinweis | Mit Lupen niemals in das Sonnenlicht blicken, Gefahr der Augenverletzung, Lupen nicht unbeaufsichtigt im Tageslicht liegen lassen, Brandgefahr - Do not look into sun with magnifier - eyes may be injured, don't leave magnifier unattended in daylight - risk of catching fire | Notes |
