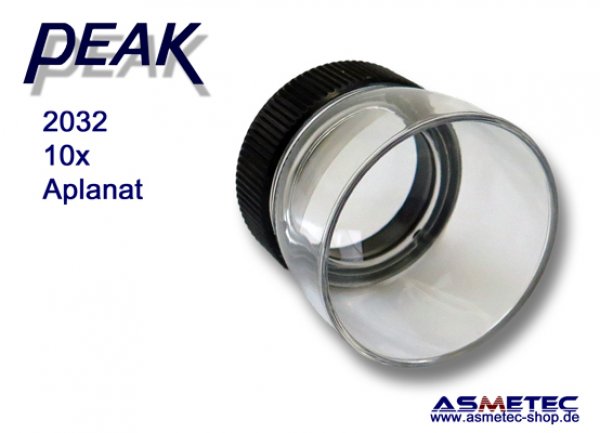

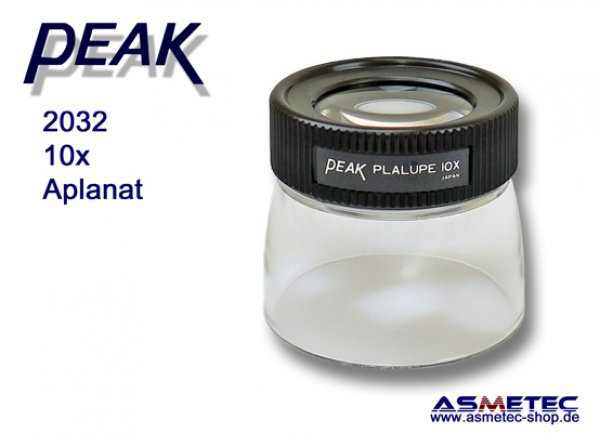

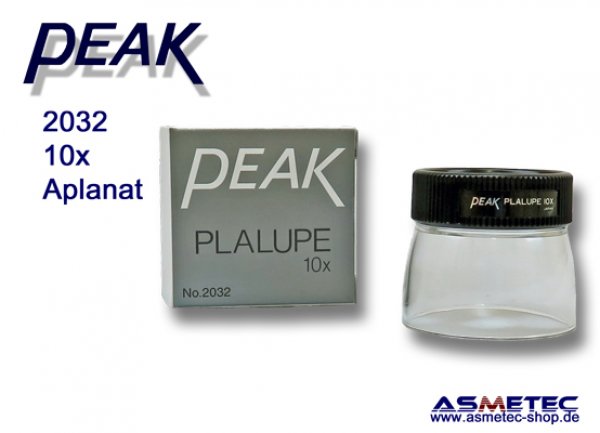

PEAK 2032, loupe 10x
PEAK 2032 Stand Magnifier, 10x
Stand Magnifier with 360°, crystal-clear acrylic body for all round light
This PEAK stand magnifier is equipped with 2 aplanatic, plastic lenses for largely distortion-free and fast aperture image of the surface to be examined.
At 10x magnification with fixed focus a field of view of 30 mm is achieved.
The crystal-clear acrylic body allows ambient light incident on all sides.
Magnification: 10x
Field of view: 30 mm
Focus: non focussable
Scale: no scale
Optic: aplanat, distortion free
Sizes: 45 x 40 mm (diameter x height)
Weight: 18 Gramm
Technical Data
| Beschreibung | Daten / Data | Description |
| Markenname | PEAK | Brand name |
| Modell | 1961 | Model |
| Vergrößerung | 10x | Magnification |
| Fokussierbar | nein / no | Focussable |
| Linsenart | Plastic | Lens type |
| Linsensystem | 2 x plankonvex | Lens system |
| Linsendurchmesser | 26 mm | Lens diameter |
| Sichtfeld | 30 mm | Field of view |
| Optik | aplanat | Optic |
| verzeichnungsfrei / distortion free | ||
| Skala | ohne / none | Scale |
| Messlänge | - | Scale Length |
| Skalenteilung | - | Scale division |
| Lupenkörper | Acryl | Lupe Body |
| Abmessung | 45 x 40 mm | Sizes |
| Gewicht | 18 gr | Weight |
| Toleranz techn. Daten | +/- 10% | Tolerance techn. Data |
| Hinweis | Mit Lupen niemals in das Sonnenlicht blicken, Gefahr der Augenverletzung, Lupen nicht unbeaufsichtigt im Tageslicht liegen lassen, Brandgefahr - Do not look into sun with magnifier - eyes may be injured, don't leave magnifier unattended in daylight - risk of catching fire | Notes |
