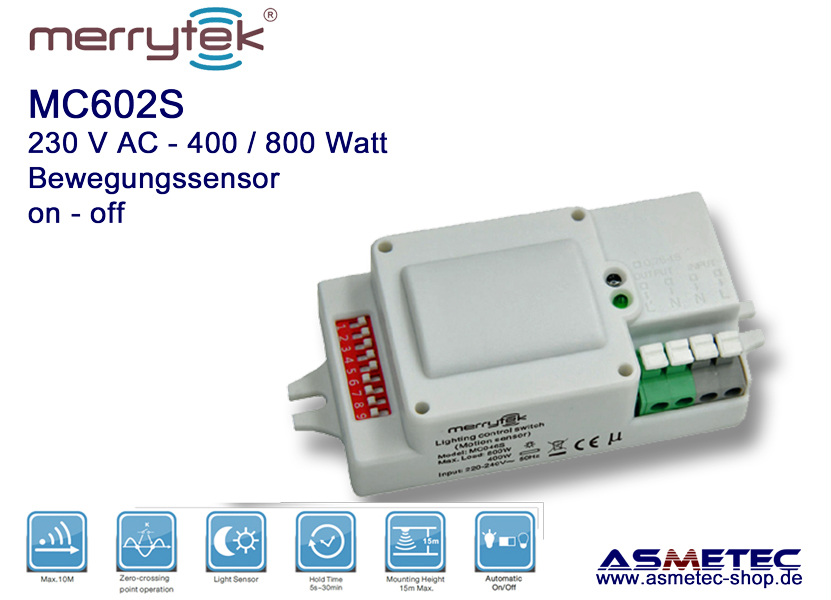

Merrytek MC602S - Microwave Motion Sensor

Merrytek MC602S - Microwave Motion Sensor

HF sensor switch 5.8 GHz, for automatic switching of lights up to 800 Watt

The Merrytek MC602S is an innovative motion sensor with switch-on function for motion detection and adjustable hold time up to 30 minutes after last motion detection. An integrated daylight sensor can also be used to set the ambient brightness from which the sensor is to respond via DIP switches.
The MC602S can be installed in dry interior walls and ceilings. The sensor is suitable for switching LED lights and light sources.It makes sense to install the sensor behind a ceiling made of wooden panels or grid ceiling panels near a downlight, because this makes it easy to reach the sensor when changing the dip switches or replacing them. You can connect 2 sensors in parallel for switching in the stairwell.
Advantages:

• Automatic switching on motion detection depending on ambient light
• zero-crossing circuit
• Sensor 5.8 GHz
• Built-in daylight sensor
• Detection by glass, plastic, non-metallic materials

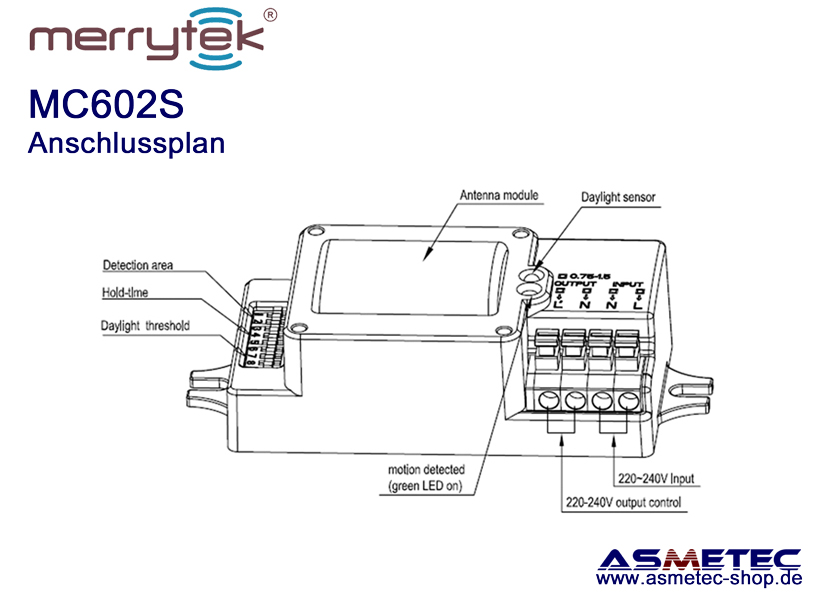

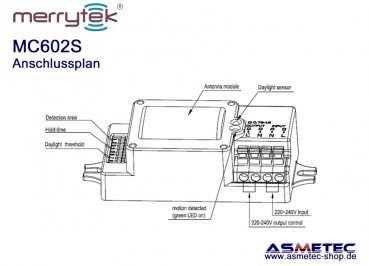

• 4-pole pressure terminals L - N - N - L'
• DIP switch for setting the parameters
• Compact dimensions

Hint:
Please note that the maximum switching loads of ohmic loads (e.g. incandescent lamp, halogen lamp) and inductive loads (e.g. LED luminaires) are different. For inductive loads, as a thumb rule is only half the switching load for ohmic loads.
Technical data:

• input voltage 220 - 240 VAC - 50/50 Hz
• For ohmic up to 800 Watt (e.g. incandescent lamps, halogen lamps)
• For inductive loads up to 400 watts (e.g. LED power supplies, LED luminaires)
• Follow-up times: 5 s / 30 s / 90 s / 3 min / 20 min / 30 min
• daylight sensor: 2 lux / 10 lux / 25 lux / 50 lux / off
• Detection angle: 150° (wall mounting) / 360° (ceiling mounting)
• Recognition range: 20 m max.
• Mounting height: 15 m max
• motion detection: 0.5 ~ 3 m/s

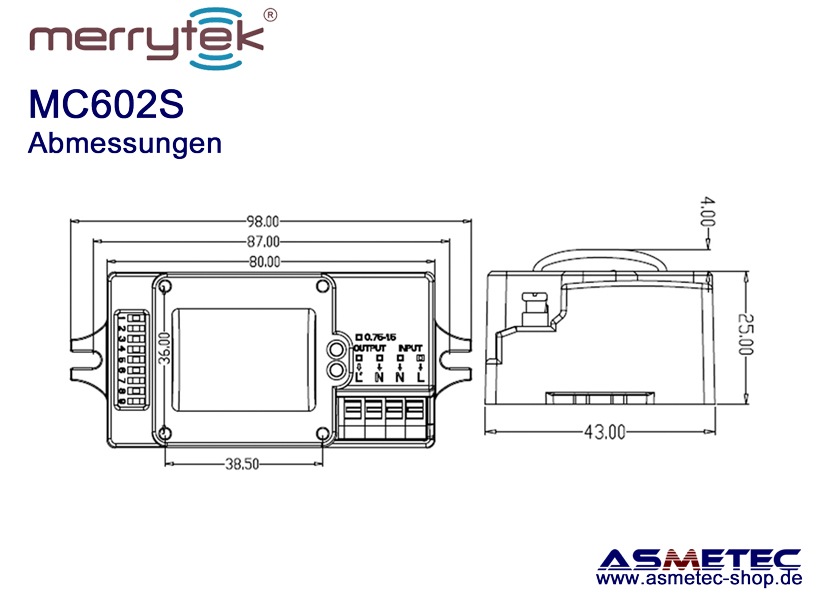

• Dimensions:80 x 43 x 25 mm (L x W x H)
