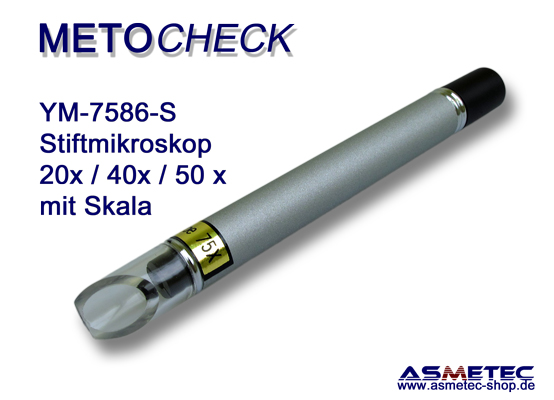

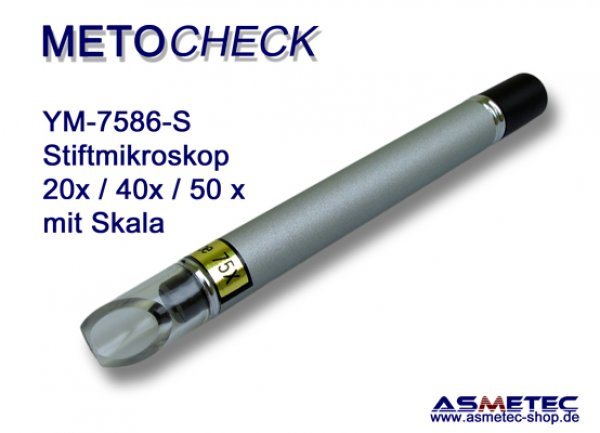

METOCHECK YM-7586-20S-LED, Pocket Microscope, 20x + LED light
pen microscope with scale 3 mm - 0,05 mm division
The METOCHECK YM-7586 series is available with magnification factors of 20x, 40x, 50 with scale and in 75x and 100x without scale.
The microscope can be focussed by setting it down on the screw-on acrylic tip. Pivoting around the set-down point focuses the measuring point. The image in ocular is mirrored.
The diameter of only 13 mm allows inspection at points where other microscopes have no chance whatsoever. The high luminosity lenses require no further illumination. Synthetic leather case included.
These pen microscopes are value priced alternatives to Peak 2001 series.
This version comes with attached LED-light
Magnification: 20x
Field of view: 3,5 mm
Focus: via set point angle
Scale: 3 mm - 0,05 mm division
Optic: aplanat, distortion free
Sizes: 13 x 124 mm (diameter x length)
Weight: 18 Gramm
| Beschreibung | Daten / Data | Description |
| Markenname | METOCHECK | Brand name |
| Modell | YM-7586-20S | Model |
| Vergrößerung | 20x | Magnification |
| Fokussierbar | über Aufsetzwinkel - via set point angle | Focussable |
| Linsenart | Glas | Lens type |
| Sichtfeld | 3,5 mm | Field of view |
| verzeichnungsfrei - distortion free | ||
| Skala | ja - yes | Scale |
| Skalenlänge | 3 mm | Scale length |
| Skalenteilung | 0,05 mm | Scale Grid |
| Lupenkörper | Aluminium | Lupe Body |
| Abmessung | 13 x 124 mm | Sizes |
| Gewicht | 18 gr | Weight |
| Toleranz techn. Daten | +/- 10% | Tolerance techn. Data |
| Hinweis | Mit Mikroskopen niemals in das Sonnenlicht blicken, Gefahr der Augenverletzung, Mikroskope nicht unbeaufsichtigt im Tageslicht liegen lassen, Brandgefahr - Do not look into sun with magnifier - eyes may be injured, don't leave magnifier unattended in daylight - risk of catching fire | Notes |
