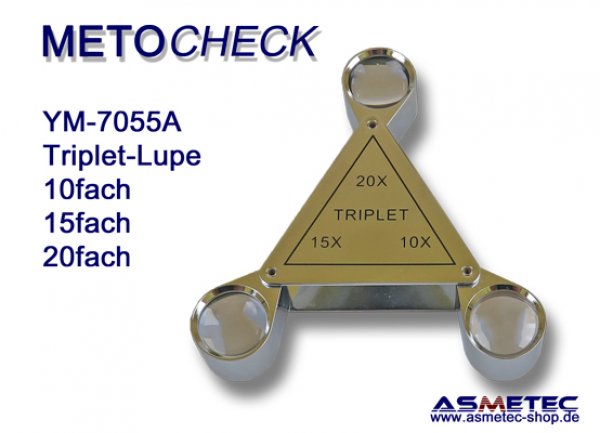

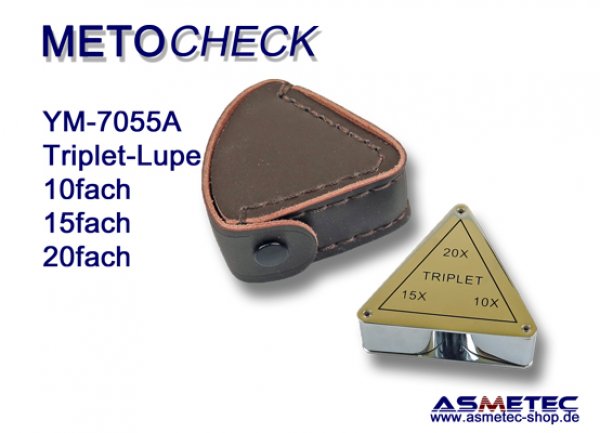

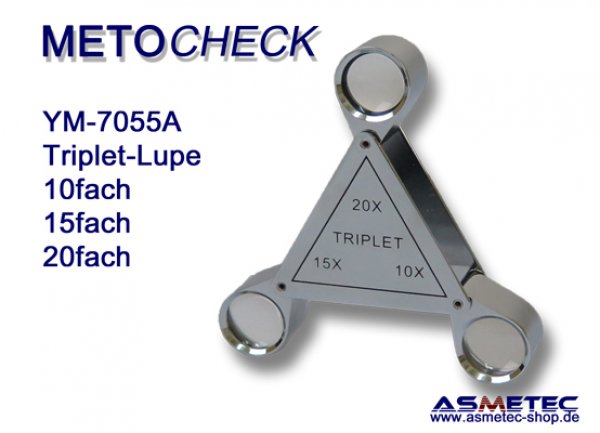

METOCHECK YM7055A-LED, triplet loupe 10-15-20x
METOCHECK YM-7055A, 10-,15-, 20x,
triple foldable Triplet-Loupe
This METOCHECK triplet loupe equipped with 3 an aplanat glass lens system for 10x, 15x and 20x maginfication and almost distortion free image of the object.
The field of view depending of magnifications about 10 to 15 mm.
This loupe is ideal for inspection of miniatures, printing dots, stamps, SMD and other electronic items, jewellery, watches etc.
Magnification: 10x, 15x, 20x
Field of view: 10 -15 mm
Focus: focussable by working distance
Scale: none
Optic: aaplanat
Sizes: 55 x 55 x 20mm (l x b x h)
Weight: 100 Gramm
Technical Data
| Beschreibung | Daten / Data | Description |
| Markenname | METOCHECK | Brand name |
| Modell | YM-7055A | Model |
| Vergrößerung | 10x, 15x, 20x | Magnification |
| Beleuchtung | - | Illumination |
| Batterie | - | Battery |
| Fokussierbar | nein / no | Focussable |
| Linsenart | Glas | Lens type |
| Linsendurchmesser | 19 mm | Lens diameter |
| Sichtfeld | 10 - 15 mm | Field of view |
| Optik | aplanat Triplex | Optic |
| verzeichnungsarm / low distortion | ||
| Skala | nein - no | Scale |
| Messlänge | - | Scale Length |
| Skalenteilung | - | Scale division |
| Lupenkörper | Aluminium | Lupe Body |
| Abmessung | 55 x 55 x 20 mm | Sizes |
| Gewicht | 100 gr | Weight |
| Toleranz techn. Daten | +/- 10% | Tolerance techn. Data |
| Hinweis | Mit Lupen niemals in das Sonnenlicht blicken, Gefahr der Augenverletzung, Lupen nicht unbeaufsichtigt im Tageslicht liegen lassen, Brandgefahr - Do not look into sun with magnifier - eyes may be injured, don't leave magnifier unattended in daylight - risk of catching fire | Notes |
