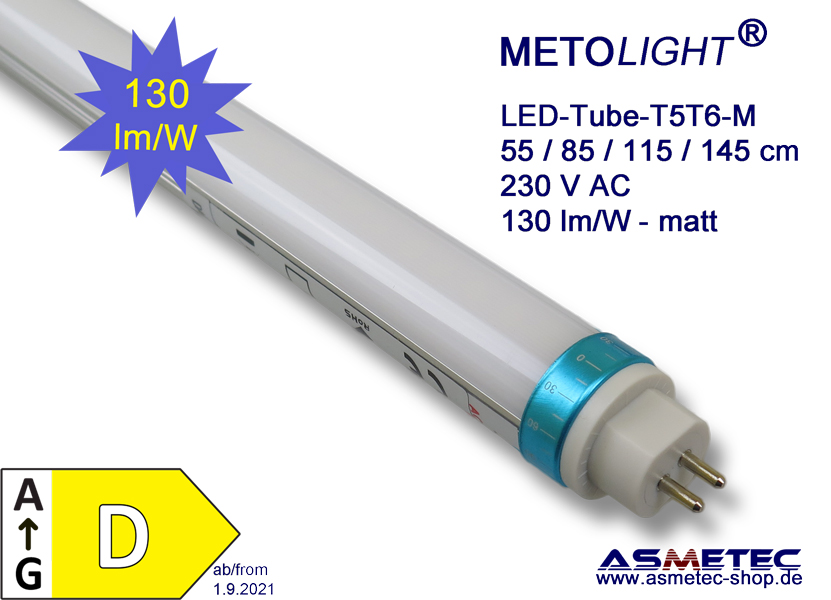

LED-Tube T5T6-115-18-CWM, T5, 1148 mm, 18 Watt, cold white

METOLIGHT LED-tube T5T6M, 1148 mm, 18 W, 2400 lm, cold white, frosted

T5-LED-Tube to be used in luminaires suitable for 28 / 54 Watt CFL-Tubes

direct connection to 110-255 V AC mains voltage - not to be used with dimmers

T5T6 tubes in length 1148 mm are mainly used in grid ceiling lights, wall lights, mirror cabinets, shelves etc. Common T5 fluorescent tubes often come with a very short shelf life. The LED tube T5T6M comes with a matted, unbreakable PC shell that distributes the light at about 140 °. This tube is also available with clear shell (series T5T6C). The G5-sockets can be rotated, so that the tube can be aligned correctly in luminaires with side view sockets. The SMDs of brand EPISTAR offer an efficiency of 130 lm / W, CRI Ra> 80 and are in accordance with the energy class A ++ (EU 2012) D (EU 2019). The internal power supply and wiring are double-insulated and comply with VDE regulations according to DIN EN 62776 (VDE 0715, Part 16): 2012-02.

This T5T6 led tube can be operated directly on the mains voltage. Operation on dimmers is not possible. Existing ballast must be removed by a qualified electrician and the G5 sockets must be rewired so that the LED tube can be operated directly on the mains voltage. A conversion guide accompanies each shipment. After lighting remodeling a test according to DIN VDE 0701-0702 must be carried out.
Please note that from length 1148 mm, the LED tubes have to be additionally secured with cable ties and adhesive pads, since the weight allowable for G5 lampholders 250 g exceeds about 70 g.


Available light colours:
warm white (3000K), nature white (4000K), pure white (5000K), cold white (6000K)
warm white + cold white: MOQ 25 pcs, lead time 4 weeks

Warranty:
This led tube , we provide a 3 year warranty ( see warranty terms in the shop download area )
Asmetec Quality:
Each tube is checked in Kirchheimbolanden for proper operation prior to shipment with us. You can request for free each batch a test report from our photometry. We create data for light calculation also in our own laboratory light - IES.
Note:
At each converted luminaire checks must be performed, which demonstrate that the luminaire is safe. It is recommended to DIN VDE 0701-0702 "Inspection after repair, modification of electrical appliances - Periodic inspection of electrical appliances - General requirements for electrical safety" apply. The converted light must be provided with a new label.
