LED-Linear-T5T-060-CW, 60 cm, 12 Watt, cold white, 1200 lm, dimmable
METOLIGHT LED linear light T5T-060-CW, 60 cm, 12 Watt , 1200 lm, cold white, switch-dimmable
LED linear light , compact design, switch-dimming 100 - 40 - 10% simply by on/off switching
This LED light in rigid extruded aluminum housing with integrated T5 LED tube ( only from a specialist exchangeable) and integrated power supply can be linked up to 20 m long using special connectors and cables.
This LED light can be linked to form long light rails e.g. under cabinets , shelves or on walls and ceilings.
It is ideal for lighting in shelves, cabinets etc. We supply these linear T5 lamps in lengths 60 / 90/ 120 and 150 cm, which can be combined with each other. The SMD - LEDs with an efficiency of about 110 lm / W are - as with all METOLIGHT LED lights - fitted on printed circuit boards with an aluminum core, thereby an excellent heat dissipation , long life of the LEDs and low loss of light is ensured over the years.
The integrated power supply of protection class 2 is double insulated , short circuit proof with high power factor Pf > 0.92 and provides the LEDs with constant current.
The linear lamp 60 cm brings 1200 lm brightness and compares to a 100 watt light bulb at just 12 Watts of power and thus corresponds to the energy class A + (EU 2012) E (EU 2019)

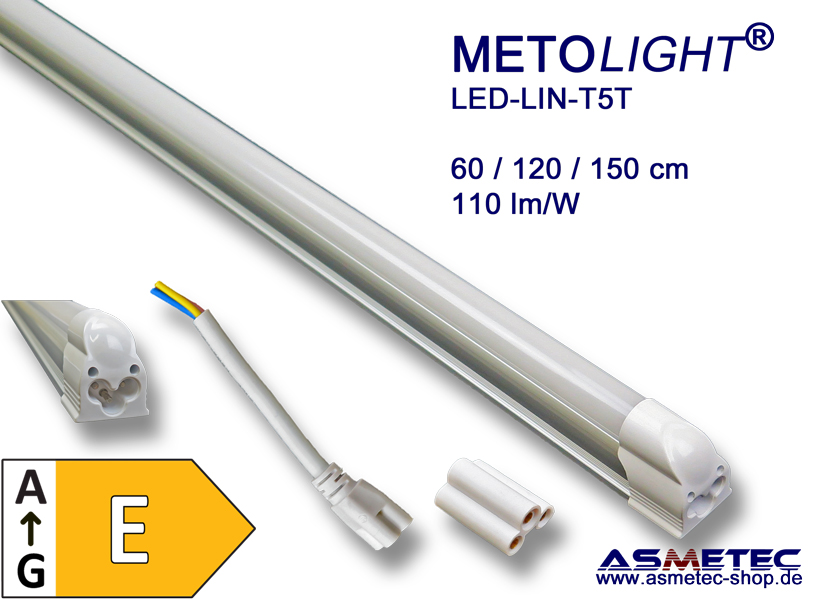

Supplied with power cable and mounting brackets.
Optional accessories are available :
- Quick connectors ( two for the direct link lights )
- Cable connector (various lengths for connecting two lights )
warranty:
This LED linear light , we offer a 3 year warranty ( see warranty terms in the shop download area ) Asmetec
Quality:
Each lamp is tested in Kirchheimbolanden for proper operation prior to shipment with us. You can request for free each batch a test report from our photometry. We generate data for light calculation also in our own laboratory light - IES.
Technical Data
| Beschreibung | Daten / Data | Description |
| Markenname | METOLIGHT | Brand name |
| Modell | LED-LIN-T5T-060-CW | Model |
| EAN-Nr. | 4251192841575 | EAN-Code |
| Betriebsspannung | 180-240 V AC / 50/60 Hz | Input Voltage |
| Gesamtleistung | ~ 12,2 Watt | Input Power |
| Leistungsfaktor | Pf > 0,93 | Power factor |
| Klasse | IP20 | IP-Grade |
| Dimmbar? | ja / yes - Triac | Dimmable? |
| Lichtquelle | Epistar SMD 110 lm/W | Light Source |
| Energieklasse | E | Energy Class |
| auf einer Skala von A bis G (wenig effizient) / on scale of A to G (less efficient) | ||
| Photobiolog. Klasse | 1 | Photobiolog. Class |
| Lichtwinkel | 120° | Beam Angle |
| Lichteffizienz | > 105 lm/W | Light Efficacy |
| Warmweiss | 2700 - 3000K - 1050 lm - Ra > 85 | Warm White |
| Neutralweiß | 3800 - 4200K - 1100 lm - Ra > 85 | Neutral White |
| Tagweiß | 4800 - 5200K - 1150 lm - Ra > 85 | Pure White |
| Kaltweiß | 5800 - 6200K - 1250 lm - Ra > 85 | Cold White |
| Entspricht Glühlampe | ~ 100 Watt | Compares to Inc. Bulb |
| LED-Lebensdauer | < 40.000 h | LED-Life |
| Schaltzyklen (ein/aus) | > 100.000 | Switch Cycles (on/off) |
| Lampenkörper | PMMA | Bulb Body |
| Abmessung | 600 x 26 x 35 mm L x B x H | Sizes |
| Gewicht | 175 gr | Weight |
| Normen | CE, RoHS, EN55015:2006+A1+A2; EN61000-3-2+A1+A2; EN61547:2009; EN62471:2008, EN2011/65/EU, EN62560:2012, EN62493:2010 | Standards |
| Toleranz techn. Daten | +/- 10% | Tolerance techn. Data |
| Max. anreihbare Leuchten | 230 V - 20 Leuchten je Zuleitung / Luminaires each power cable | Max. Qty Linkable |
| Hinweise | Bitte beachten Sie unser technisches Datenblatt / please note our technical data sheet | Notes |
| Hinweise | Notes |
| Verwendungszweck | Application |
| LED-Linearleuchte zur Beleuchtung in trockenen Innenräumen | LED-linear luminaire for indorr lighting |
| Besonderheiten | Specials |
| Bis zu 20 Leuchten an 230 V AC kaskadierbar, kompakte Bauweise | Up to 20 luminaires linkable at 230 V AC, compact sizes |
| Installation | Installation |
| In trockenen Innenräumen mittels Montageclips und beiliegendem Anschlußkabel | With mounting clips and cables provided with each luminaire, only for dry indoor rooms |
| Hinweise | Notes |
| Wie bei allen LED-Leuchtmitteln ist auf ausreichende Luftzirkulation zu achten, damit die LED-Lampe nicht überhitzt. Die Gesamtenergieeffizienz und Lichtverteilung dieses LED-Leuchtmittels wird von der Bauart der Lichtanlage bestimmt, in der es verwendet wird. Messdaten unterliegen üblichen Toleranzen. Daten gem. Asmetec-Labor bzw. nach Werksangaben sowie. EU 874/2012, 2010//30/EU, 2011/65/EU | As with all LED-Lights take care for sufficient air ventilation to prevent LED overheating. The total efficiency and light distribution of this LED depends on the structure of the luminaire where it is used in. Technical data subject common tolerances. Measure data acc. Asmetec Test lab or original manufacturer data and acc. EU 874/2012, 2010//30/EU, 2011/65/EU |
| Entsorgung | Waste Treatment |
| LED-Leuchtmittel enthalten Wertstoffe. Bitte geben Sie die Lampen nach Gebrauch beim Wertstoffhof ab oder senden Sie sie an Asmetec zum Recycling zurück. | LED-lamps contain valuable raw materials. Please dispose them after use at the Local Court of Value Materials or return them for free disposal to Asmetec. |
| Prüfberichte | Test Reports |
| Individuelle Prüfberichte zu colorimetrischen, photometrischen und elektrischen, elektromagnetischen Daten erstellen wir auf Wunsch im eigenen Labor. | Individual test reports for colorimetric, photometric, electrical and electromagnetical data upon request made in own lab. |
