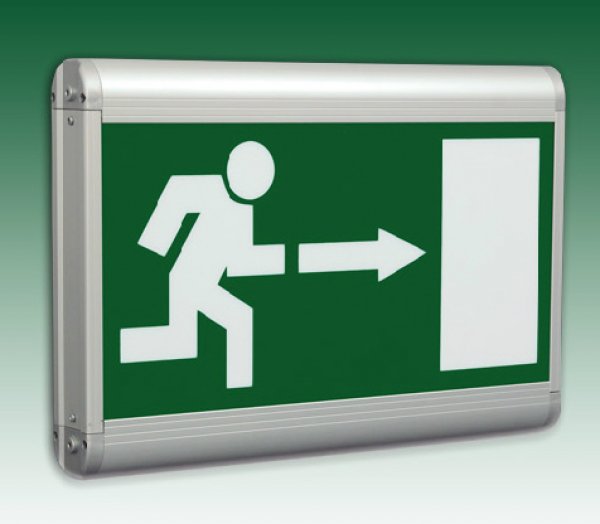

LED Emergency Exit luminaire LEs-844, IP42, double sided, self testing
extra large light panel for view up to 64 meters
This LED-emergency luminaire is for indoor use only, IP 42, equipped with multiple LEDs providing 700 lm (mains powered). The built in rechargeable battery powers the LEDs for 3 hours in case of mains off at 350 lm
Maintained operation (always lights on) for double sided view. The exit symbol (right/left) is made of polycarbonate.
It is designed for ceiling- , suspended ceiling- and wall mounting.
This luminair is also available for central battery stations.
Optional accessories:
A-1079 - extension set 10 cm
A-1081 - extension set 20 cm
A-1082 - extension set 40 cm
| Technical Data |
| Brand name |
METOLIGHT |
| Model No. |
LEL-844 |
| Light Source |
Multi-LEDs |
| Light Power |
700 / 350 lm |
| Input voltage |
220-240 V AC / 50/60 Hz |
| Input Power |
14 VA |
| Battery Data |
4,8 V, 3 Ah |
| Battery Type |
Ni-Mh |
| Recharging time |
24 h |
| Battery protection |
overcharge, full discharge |
| Indication controls |
charge, lamp fault, LED-fault, |
| Test button |
yes |
| Maintained |
180 min |
| Non maintained |
- |
| Selftest |
yes |
| Recognitions distance |
64 m |
| Complies with |
EN 60598-1, 60598-2-22, EN 1838 |

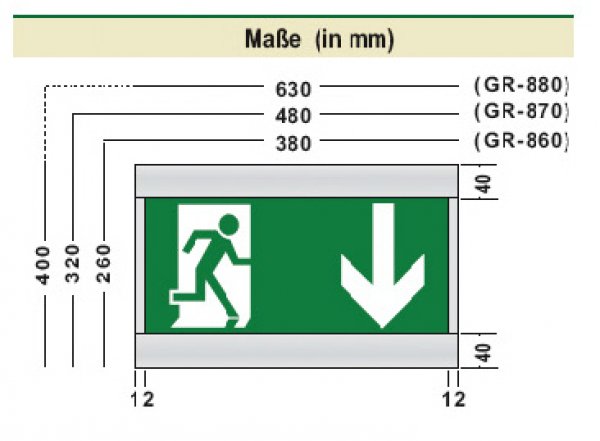

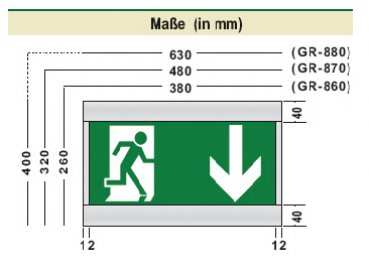

| Base unit dimensions (lwd) |
635 x 400 x 50 mm |
| Symbol dimension |
615 x 320 x 50 mm |
| Weight |
2480 gr |
| Housing |
Aluminium, Polycarbonat, FR3010 |
| Flame retardant |
yes |
| Mounting |
Ceiling / Wall |
| Operating temperature |
0° - 40°C |
| Rel. Humidity |
up to 95% |
| Enclosure rating |
IP42 |
| Protection Class |
II |
| Guarantee luminaire |
3 years |
| Guarantee battery |
1 year |
| Specials |
double sided |
