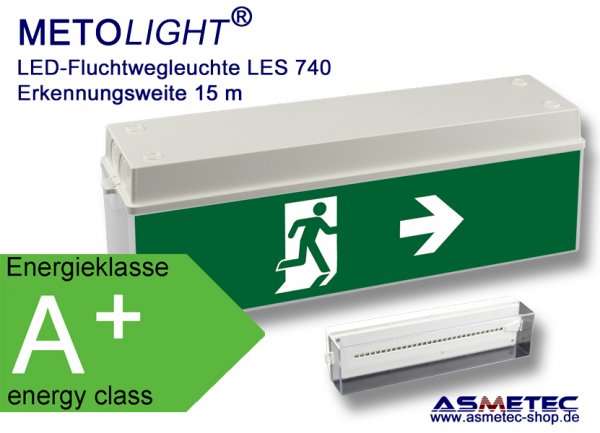

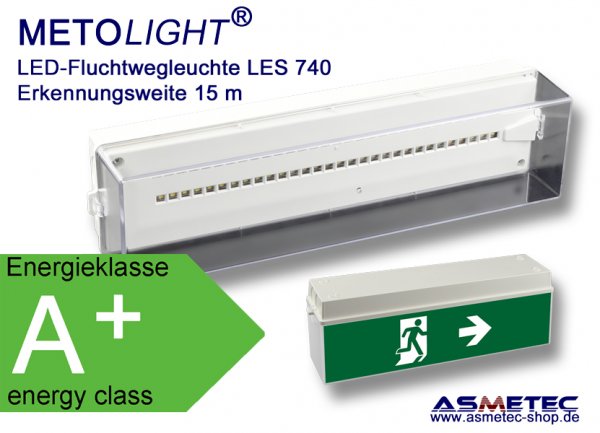

LED Emergency Exit luminaire LEL-740, IP40, double sided, self testing
This LED-emergency luminaire is for indoor use only, IP 40, equipped with 30 LEDs providing 160 lm each side, equivalent to 7 Watt CFL-tubes. The built in rechargeable battery powers the LEDs for 3 hours in case of mains off.
The luminaire includes self-testing, maintained operation (always lights on) for double sided view.
It is designed for ceiling, suspended ceiling but also wall mounting.
| Technical Data |
| Brand name |
METOLIGHT |
| Model No. |
LES-740 |
| Light Source |
Multichip LED |
| Light Power |
160 lm |
| Input voltage |
220-240 V AC / 50/60 Hz |
| Input Power |
4 VA |
| Battery Data |
3,6 V, 3 Ah |
| Battery Type |
Ni-Cd |
| Maintained |
180 min |
| Non maintained |
- |
| Selftest |
yes |
| Recognitions distance |
15 m |
| Complies with |
EN 60598-1, 60598-2-22 |
| Base unit dimensions (lwd) |
358 x 125 x 88 |
| Housing |
Polycarbonate, ABS |
| Flame retardant |
yes |
| Mounting |
Ceiling / Wall |
| Operating temperature |
0° - 50°C |
| Enclosure rating |
IP40 |
| Protection Class |
II |
| Specials |
double sided |
