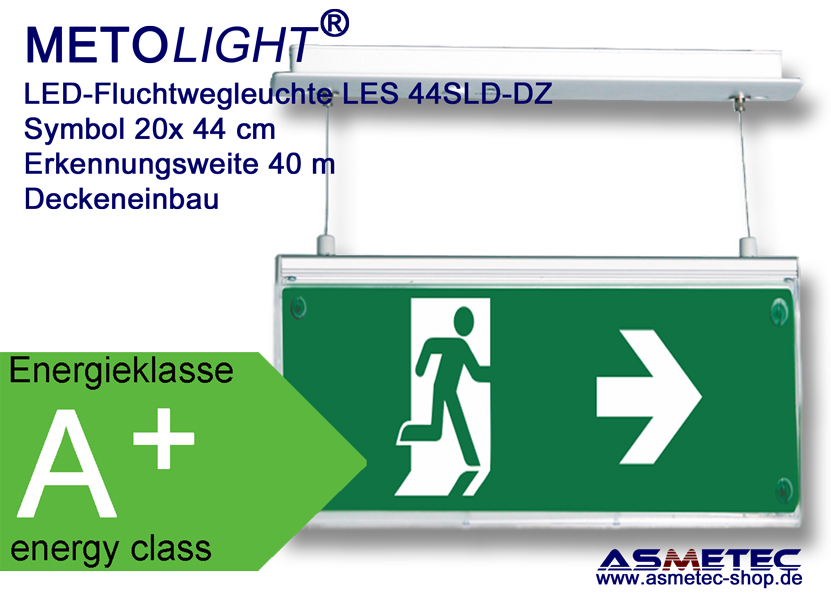

LED Emergency Exit luminaire LES-44-SLD-DZ, IP30, double sided
This LED-emergency luminaire is for indoor use only, IP 30, equipped with 15 LEDs providing 100 lm each side. The built in rechargeable battery powers the LEDs for 3 hours in case of mains off.
Maintained operation (always lights on) for double sided view. The exit symbol (right/left) stick to a 6 mm acrylic glass, edge illuminated
It is designed for ceiling and suspended ceiling mounting.
As option we can supply:
transparent acrylic edge illuminated symbol
The Version LES-44-SLD-DZ-CBS comes without internal battery for central battery station operation.
Optional accessories:
A-1079 - Recess mounting base
A-1080 - extension rod 10 cm
A-1081 - extension rod 20 cm
A-1082 - extension rod 40 cm
A-1083 - connection tie
Technical Data |
Brand name |
METOLIGHT |
Model No. |
LES-44-SLD-SP |
Light Source |
15 LEDs |
Light Power |
100 / 100 lm |
Input voltage |
220-240 V AC / 50/60 Hz |
Input Power |
9,5 VA |
Battery Data |
3,6 V, 1,5 Ah |
Battery Type |
Ni-Mh |
Recharging time |
24 h |
Battery protection |
overcharge, full discharge |
Indication controls |
charge, lamp fault, LED-fault, |
Test button |
yes |
Maintained |
180 min |
Non maintained |
- |
Selftest |
yes |
Recognitions distance |
34 m |
Complies with |
EN 60598-1, 60598-2-22, EN 1838 |

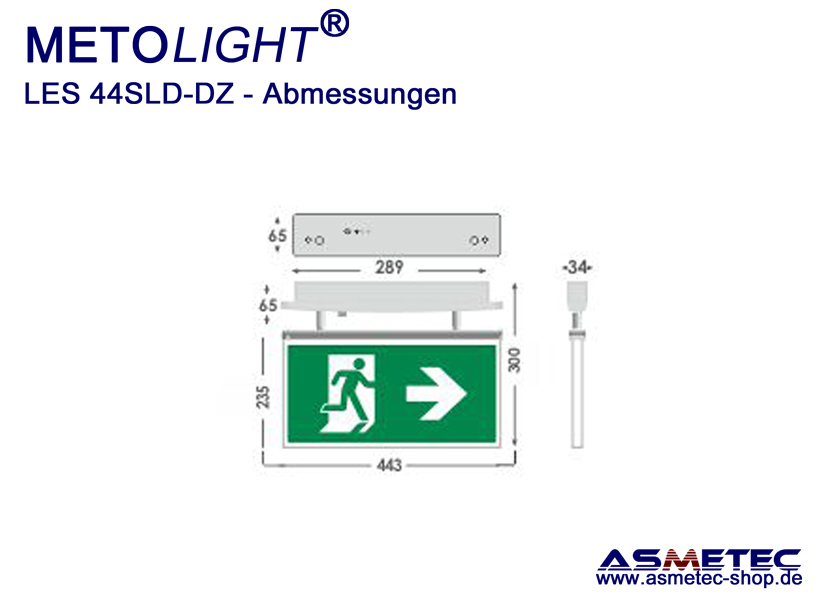

Base unit dimensions (lwd) |
289 x 65 x 34 mm |
Lamp dimensions |
440 x 240 x 15 mm |
Weight |
1580 gr |
Housing |
FR3010, Aluminium, PMMA |
Flame retardant |
yes |
Mounting |
Ceiling / Wall |
Operating temperature |
0° - 40°C |
Rel. Humidity |
up to 95% |
Enclosure rating |
IP30 |
Protection Class |
II |
Guarantee luminaire |
3 years |
Guarantee battery |
1 year |
Specials |
double sided |
