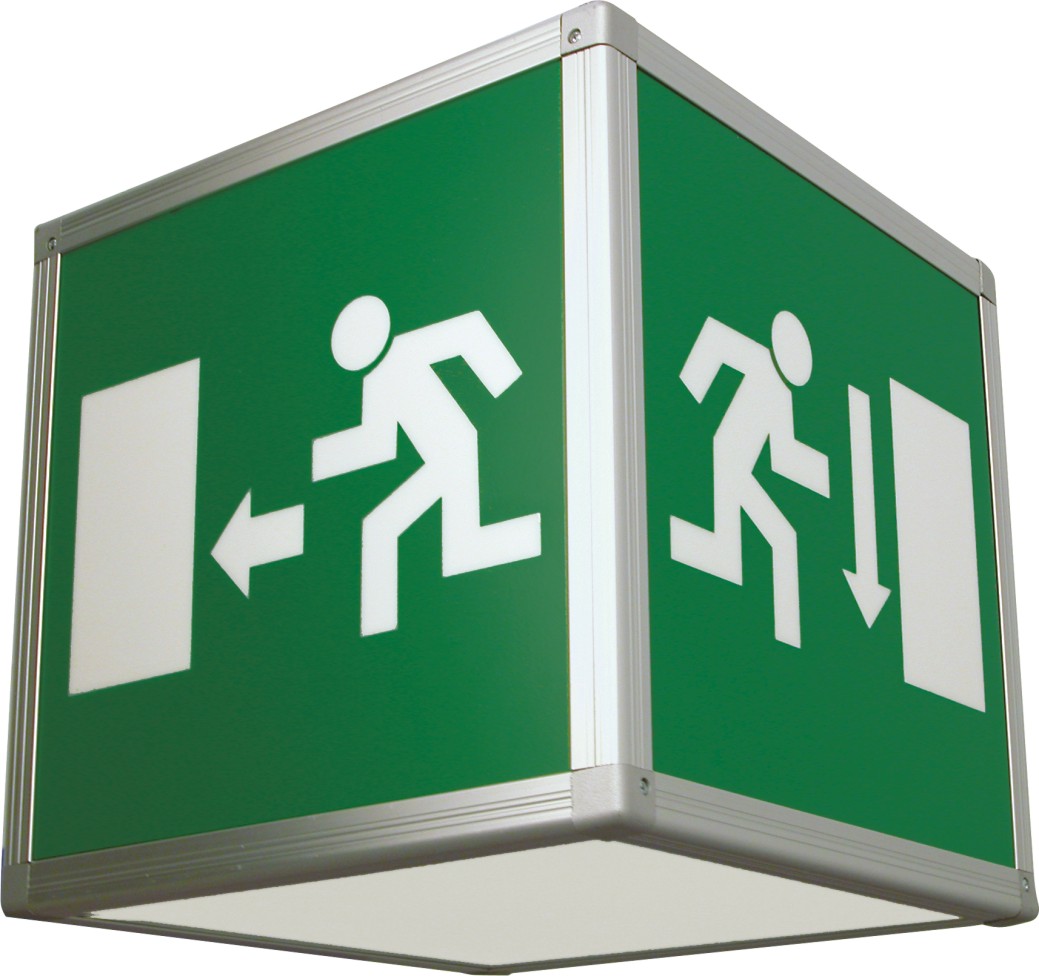

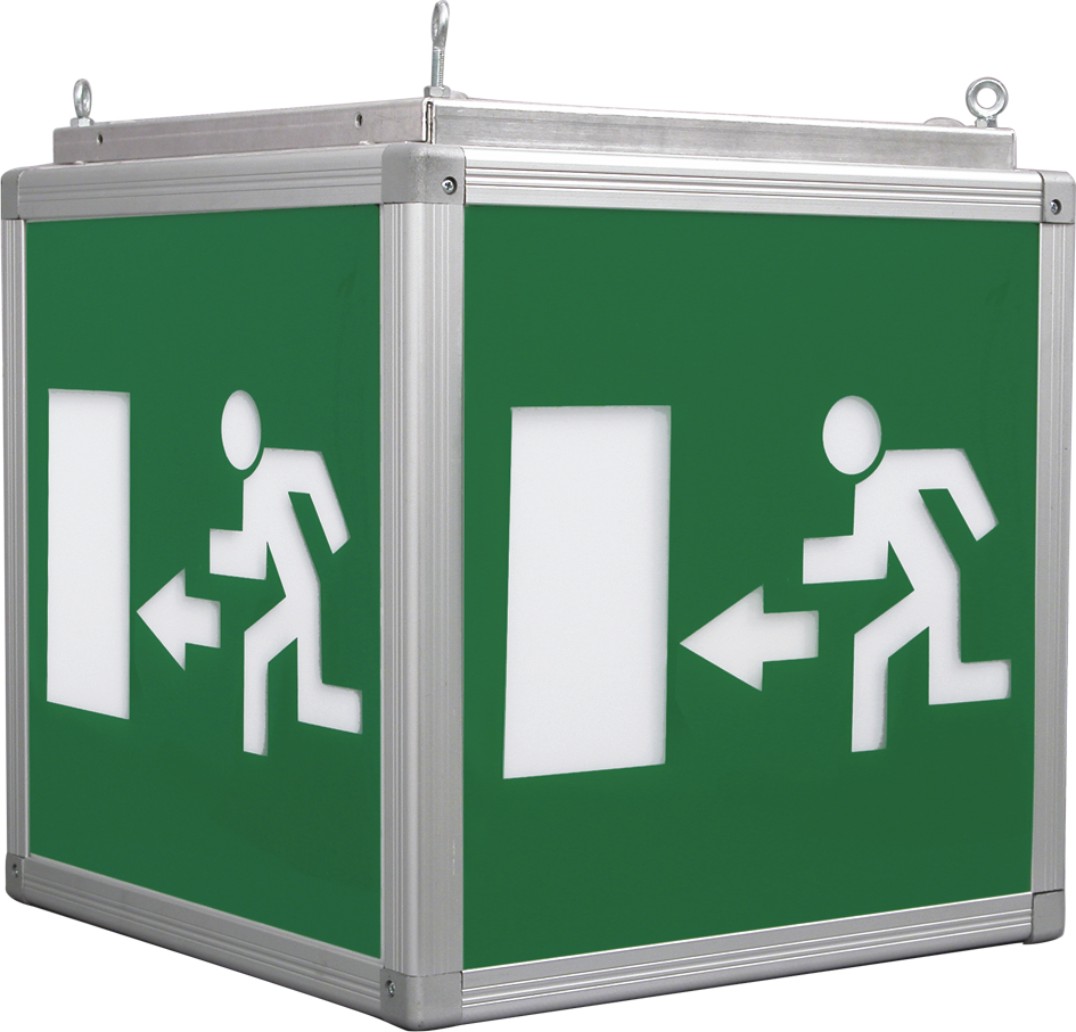

LED Emergency Exit luminaire LES-416, IP40, 3D, self testing
This LED-emergency luminaire is for indoor use only, IP 40, equipped with 4 hoighj power LEDs, providing 125 (mains) / 250 lm (emergency). The built in rechargeable battery powers the LEDs for 3 hours in case of mains off.
Maintained operation (always lights on) for 3D view. 4 exit symbols on cube 310 x 310 x 320 mm
It is designed for suspended ceiling mounting.
The version LES-424-CBS comes without internal battery for central battery station operation.
| Technical Data |
| Brand name |
METOLIGHT |
| Model No. |
LES-416 |
| Light Source |
4 x Power LED |
| Light Power |
125 / 250 lm |
| Input voltage |
220-240 V AC / 50/60 Hz |
| Input Power |
14 VA |
| Battery Data |
4,8 V, 3 Ah |
| Battery Type |
Ni-Mh |
| Recharging time |
24 h |
| Battery protection |
overcharge, full discharge |
| Indication controls |
charge, lamp fault, LED-fault, |
| Test button |
yes |
| Maintained |
180 min |
| Non maintained |
- |
| Selftest |
yes |
| Recognitions distance |
30 m |
| Complies with |
EN 60598-1, 60598-2-22, EN 1838 |

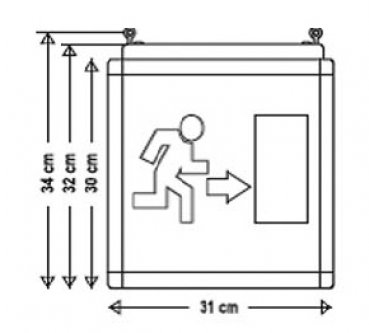

| Base unit dimensions (lwd) |
310 x 310 x 320 mm |
| Weight |
2900 gr |
| Housing |
Aluminium, PMMA |
| Flame retardant |
yes |
| Mounting |
Ceiling |
| Operating temperature |
0° - 40°C |
| Rel. Humidity |
up to 95% |
| Enclosure rating |
IP40 |
| Protection Class |
II |
| Guarantee luminaire |
3 years |
| Guarantee battery |
1 year |
| Specials |
3D view |
