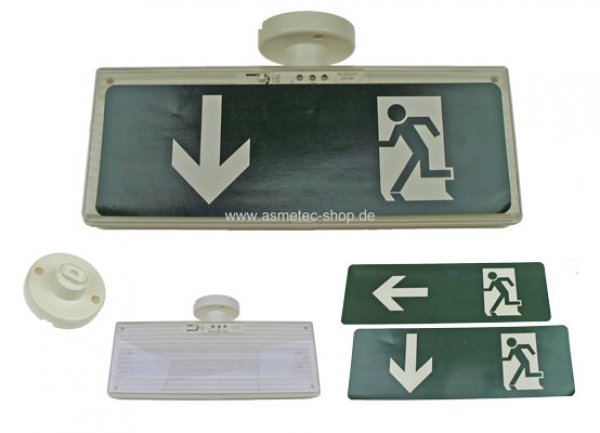

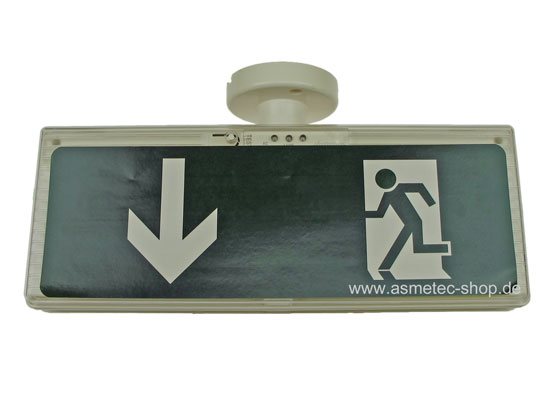

LED Emergency Exit luminaire LEL-392, IP40, double sided, self testing
This LED-emergency luminaire is for indoor use only, IP 40, equipped with Multi-Chip-LEDs providing 100 lm each side, equivalent to 8 Watt CFL-tubes. The built in rechargeable battery powers the LEDs for 3 hours in case of mains off.
The luminaire includes self-testing, maintained operation (always lights on) for double sided view.
It is designed for ceiling, suspended ceiling but also wall mounting.
As option we can supply:
item no. C-101: protective metallic grid (250 x 460 x 100 mm),
item no. SP-114: double sided marking panel (acrylic, 6 mm thick)
item no. A3016: recess mounting base
item no. A3018: suspended ceiling mounting springs
item no. S-31100: exit sticker symbols, size 280 x 110 mm
| Technical Data |
| Brand name |
METOLIGHT |
| Model No. |
LES-392 |
| Light Source |
Multichip LED |
| Light Power |
100 lm |
| Input voltage |
220-240 V AC / 50/60 Hz |
| Input Power |
7 VA |
| Battery Data |
3,6 V, 3 Ah |
| Battery Type |
Ni-Cd |
| Maintained |
180 min |
| Non maintained |
- |
| Selftest |
yes |
| Recognitions distance |
22 m |
| Complies with |
EN 60598-1, 60598-2-22 |

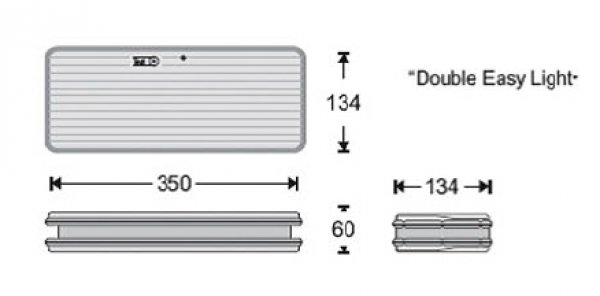

| Base unit dimensions (lwd) |
350 x 134 x 60 |
| Housing |
Polycarbonate, ABS |
| Flame retardant |
yes |
| Mounting |
Ceiling / Wall |
| Operating temperature |
0° - 50°C |
| Enclosure rating |
IP40 |
| Protection Class |
II |
| Specials |
double sided |
