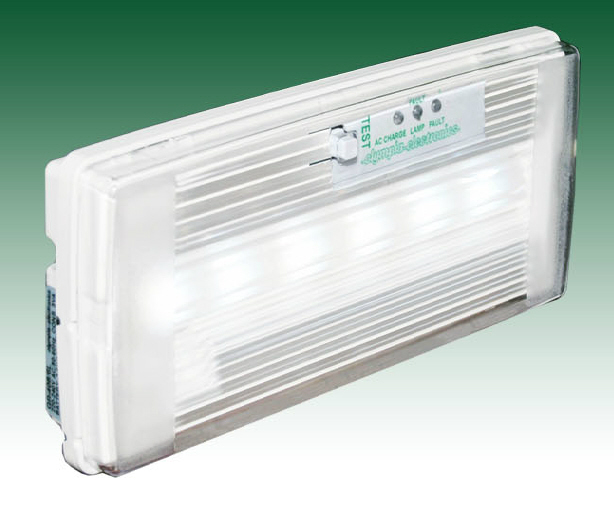

LED emergency luminaire LEL-423-6L, slim line
Emergency luminaire, equipped with 3 power LEDs and built in rechargeable battery to operate the luminaire for 3 hours in case of emergency, maintained, integrated self test. Equivalent to 2 x 8 Watt CFL.
The luminaire is designed to be easily recess mounted in suspended ceilings.
The slim line housing is made of flame retardant ABS, for indoor usage, IP42-class.
Optional self adhesive legends for emergency exits can be supplied.
| Technical Data |
| Brand name |
METOLIGHT |
| Model No. |
LEL-423-6L |
| Light Source |
3 Power LEDs |
| Light Power |
75 / 150 lm |
| Input voltage |
220-240 V AC / 50/60 Hz |
| Input Power |
7 VA |
| Battery Data |
3,6 V, 4 Ah |
| Battery Type |
Ni-Cd |
| Maintained |
180 min |
| Non maintained |
- |
| Selftest |
yes |
| Recognitions distance |
20 m |
| Complies with |
EN 60598-1, 60598-2-22 |

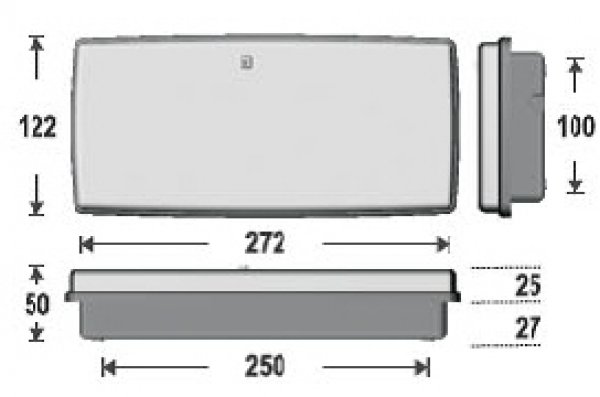

| Base unit dimensions (lwd) |
272 x 122 x 50 mm |
| Housing |
Polycarbonate, ABS |
| Flame retardant |
yes |
| Mounting |
Ceiling / Wall |
| Operating temperature |
0° - 50°C |
| Enclosure rating |
IP42 |
| Protection Class |
II |
