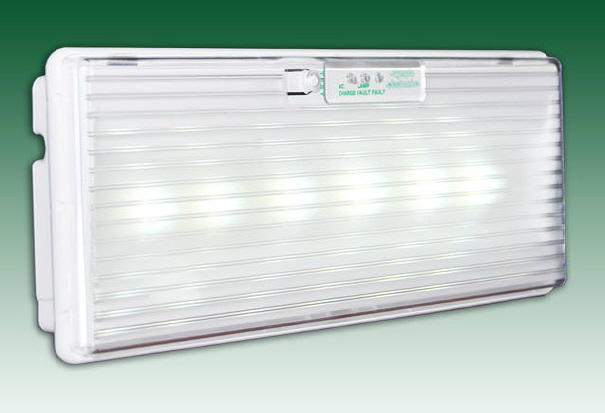

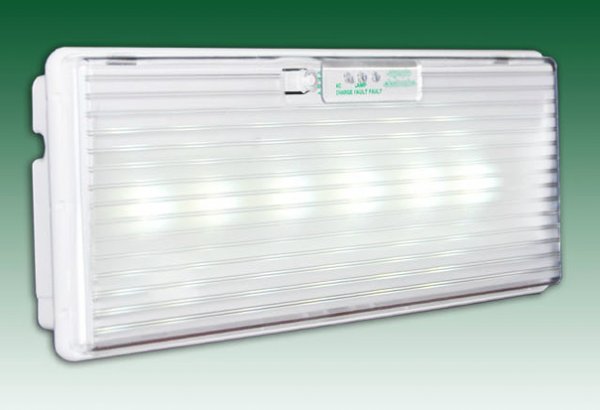

LED emergency luminaire LEL-316-6L, slim line
Emergency luminaire, equipped with 6 power LEDs and built in rechargeable battery to operate the luminaire for 3 hours in case of emergency. The luminaire is self-testing, maintained, equivalent to CFL 11 Watt
The slim line housing is made of flame retardant ABS, for indoor usage, IP40-class.
Optional self adhesive legends for emergency exits can be supplied.
| Technical Data |
| Brand name |
METOLIGHT |
| Model No. |
LEL-316-6L |
| Light Source |
6 Power LEDs |
| Light Power |
200 / 400 lm |
| Input voltage |
220-240 V AC / 50/60 Hz |
| Input Power |
8 VA |
| Battery Data |
4,8 V, 4 Ah |
| Battery Type |
Ni-Mh |
| Maintained |
180 min |
| Non maintained |
- |
| Selftest |
yes |
| Recognitions distance |
22 m |
| Complies with |
EN 60598-1, 60598-2-22 |

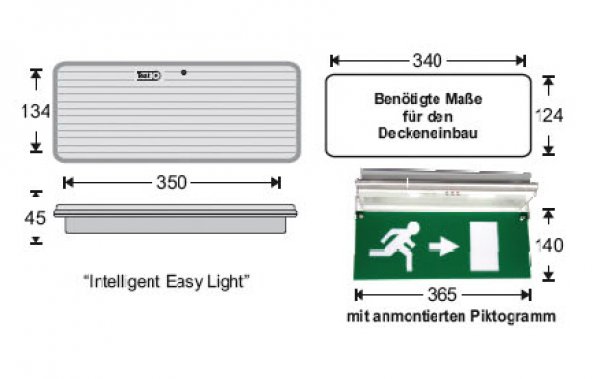

| Base unit dimensions (lwd) |
350 x 134 x 45 mm |
| Housing |
Polycarbonate, ABS |
| Flame retardant |
yes |
| Mounting |
Ceiling / Wall |
| Operating temperature |
0° - 50°C |
| Enclosure rating |
IP40 |
| Protection Class |
II |
