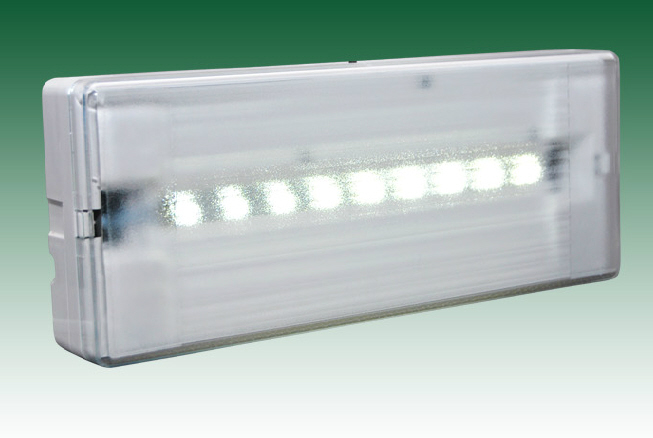

LED emergency luminaire LEL-1006-9L, slim line
Emergency luminaire, equipped with 9 super bright power LEDs and built in rechargeable battery to operate the luminaire for 3 hours in case of emergency. Operation maintained and optional non-maintained.
The slim line housing is made of flame retardant ABS, for indoor usage, IP20-class.
Optional self adhesive legends for emergency exits can be supplied.
As special version "CBS" this luminaire can be supplied without internal battery to operate with central battery stations.
| Technical Data |
| Brand name |
METOLIGHT |
| Model No. |
LEL-1006-/ 9L |
| Light Source |
9 LEDs |
| Light Power |
25 / 60 lm |
| Input voltage |
220-240 V AC / 50/60 Hz |
| Input Power |
3 VA |
| Battery Data |
2,4 V, 3 Ah |
| Battery Type |
Ni-Mh |
| Maintained |
180 min |
| Non maintained |
optional |
| Selftest |
- |
| Recognitions distance |
13 m |
| Complies with |
EN 60598-1, 60598-2-22 |
| Base unit dimensions (lwd) |
260 x 100 x 51 mm |
| Housing |
Polycarbonate, ABS |
| Flame retardant |
yes |
| Mounting |
Ceiling / Wall |
| Operating temperature |
0° - 50°C |
| Enclosure rating |
IP20 |
| Protection Class |
II |
