METOLIGHT LED-tube Nano, 120 cm, 18 W, 2200 lm, 330° beam
The new economic standard of LED-Tubes - 135 lm/W, CRI Ra >80, unbreakable Nano-Filament tube, 330° light beam
Replaces CFL tubes 120 cm - 36 Watt, Code 840
Newly developed high-power LED tube designed for use in lamps with low mounting height (eg office, underground parking, lighting equipment ) with a particularly wide lighted tube surface of about 330 °.
Thus, the NANO-LED-Tubes almost completely can compare to fluorescent tubes. Wall and ceiling are lighted, resulting in a high proportion of indirect lighting - in many application areas like in underground garages and shops , this is specifically requested
The use of SMD 2835 the latest technology with over 135 lm/W LED efficiency , aluminum core printed circuit boards, insulated in non conductive nano-filament-tube, single side connected this LED tube is the perfect retrofit replacement of conventional fluorescent tubes.
It can be used under 24 h condition in all light fixtures with G13 base and magnetic ballast (not suitable for electronic ballast!)

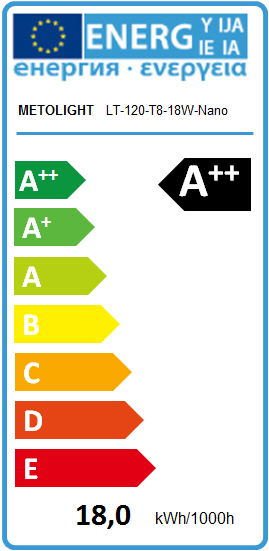

With over 135 lm / W LED efficiency this LED tube reaches the energy efficiency class A ++ (EU 2012) D (EU 2019) and is more than twice as bright as conventional fluorescent tubes. It can replace a common CFL without rewiring the luminaire. Just replace the supplied LED starter and insert the LED Nano-Tube
For light fixtures with electronic ballast yiu need to dismount the elecvtronic ballast and rewire the fixture (only by electrician!). The electrician must re-validate the CE conformity of the luminaire.
Warranty:
For this led tube we provide a 2 year warranty (see warranty terms in the shop download area )
Asmetec Quality:
Each tube is checked in Kirchheimbolanden for proper operation prior to shipment with us. You can request for free each batch a test report from our photometry. We create data for light calculation also in our own laboratory light - IES.
please ask for our latest prices for bulk orders email to > info (at) asmetec.de
| Beschreibung | Daten / Data | Description |
| Markenname | METOLIGHT | Brand name |
| Modell | LEDtube Nano-120 | Model |
| Betriebsspannung | 180 - 240 V AC / 50/60 Hz | Input Voltage |
| Gesamtleistung | ~ 18 Watt | Input Power |
| Leistungsfaktor | Pf > 0,90 | Power factor |
| Dimmbar? | nein / no | Dimmable? |
| Lichtquelle | Sanan SMD2835 | Light Source |
| Energieklasse | D | Energy Class |
| auf einer Skala von A bis G (wenig effizient) / on scale of A to G (less efficient) | ||
| Photobiolog. Klasse | 1 | Photobiolog. Class |
| Beleuchtete Fläche | 330° | Illuminated Surface |
| Lichtwinkel LED | 160° | Beam Angle LED |
| Lichteffizienz | < 135 lm/W | Light Efficacy |
| Warmweiss | 2700 - 3000K - 2100 lm - Ra > 85 | Warm White |
| Naturweiß | 3800 - 4500K - 2200 lm - Ra > 85 | Nature White |
| Kaltweiß | 5800 - 6500K - 2300 lm - Ra > 85 | Cold White |
| LED-Lebensdauer | < 30.000 h | LED-Life |
| Schaltzyklen (ein/aus) | > 100.000 | Switch Cycles (on/off) |
| Sockel | G13 | Base |
| Lampenkörper | PMMA - Nano | Bulb Body |
| Abmessung | 26 mm Durchmesser x 1198 mm lang (diameter x length) | Sizes |
| Gewicht | ~ 290 g | Weight |
| Normen | CE-Konformität / CE-conformity nach / acc to: EN 62776:2015, EN 62493:2015, EN 62471:2008, EN 55015, EN 60598-1:2008, EN 61000-3-2, EN 61547:2009, EN 62321:2001EMV 2014/30/EU, RoHS 2011/65/EU | Standards |
| Toleranz techn. Daten | +/- 10% | Tolerance techn. Data |
| Hinweise | Notes |
| Verwendungszweck | Application |
| LED-Röhre als Retrofit für Leuchtstoffröhren für allg. Beleuchtungsanwendung im Innenbereich | LED-tube retrofit for common CFL-tubes, lighting application indoor |
| Besonderheiten | Specials |
| LED-Röhre mit breitem Lichtstrahl, besonders geeignet für Montagehöhen unter 4 m | LED-tube with wide beam angle, particularly for mounting heights below 4 m |
| Installation | Installation |
| In Leuchten mit KVG/VVG und Fasssung G13 anstelle bisheriger Leuchtstoffröhren, Starter gegen LED-Starter austauschen, Lampenwechsel nur bei stromfrei geschalteten Leuchten vornehmen! | In luminaires with magnetic ballast and G13 socket to replace common CFL. Change existing starter by LED starter. Change tubes only when power is off |
| Hinweise | Notes |
| Wie bei allen LED-Leuchtmitteln ist auf ausreichende Luftzirkulation zu achten, damit die LED-Lampe nicht überhitzt. Die Gesamtenergieeffizienz und Lichtverteilung dieses LED-Leuchtmittels wird von der Bauart der Lichtanlage bestimmt, in der es verwendet wird. Messdaten unterliegen üblichen Toleranzen. Daten gem. Asmetec-Labor bzw. nach Werksangaben sowie. EU 874/2012, 2010//30/EU, 2011/65/EU | As with all LED-Lights take care for sufficient air ventilation to prevent LED overheating. The total efficiency and light distribution of this LED depends on the structure of the luminaire where it is used in. Technical data subject common tolerances. Measure data acc. Asmetec Test lab or original manufacturer data and acc. EU 874/2012, 2010//30/EU, 2011/65/EU |
| Entsorgung | Waste Treatment |
| LED-Leuchtmittel enthalten Wertstoffe. Bitte geben Sie die Lampen nach Gebrauch beim Wertstoffhof ab oder senden Sie sie an Asmetec zum Recycling zurück. | LED-lamps contain valuable raw materials. Please dispose them after use at the Local Court of Value Materials or return them for free disposal to Asmetec. |
| Prüfberichte | Test Reports |
| Individuelle Prüfberichte zu colorimetrischen, photometrischen und elektrischen, elektromagnetischen Daten erstellen wir auf Wunsch im eigenen Labor. | Individual test reports for colorimetric, photometric, electrical and electromagnetical data upon request made in own lab. |
