LED panel light 6012-60W-WW, 60 Watt, 6000 lm, warm white, 60 x 120 cm
LED panel light 6012-60W-WW, 60 Watt, 6000 lm, warm white, 60 x 120 cm

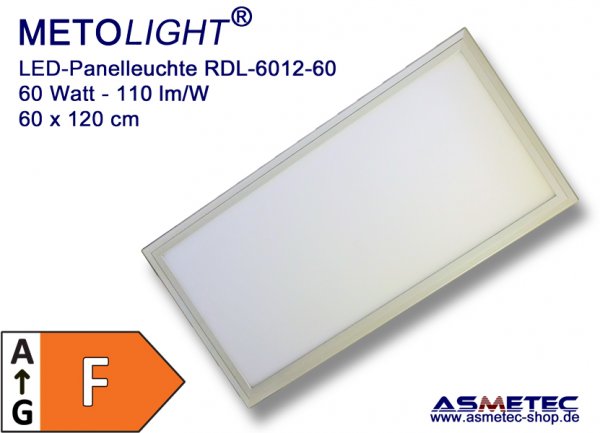

METOLIGHT LED panel light 6012-60W-WW, 60 Watt, 6000 lm, warm white
LED flat light 60 x 120 cm for installation in grid ceilings 600 mm
Product description:
LED panel flat light with high-performance SMD LEDs 120 lm / W - CRI Ra> 85, only 11 mm thick for installation in grid ceilings (for example, Odenwald ceilings) with ceiling grid 600 mm. The LEDs are installed in the side of the aluminum frame. An acrylic reflection plate with thousands of laser bores directs the side-irradiated LED light by 90 ° onto a matt diffusing plate, which distributes the light at an angle of approx. 120 ° without shadow and glare-free (UGR <18, x 4H, y 8H).This LED panel light is particularly flat with a height of only 11 mm.
It can optionally be inserted into grid ceilings or, by means of optional spring clips, e.g. In plasterboard panels. An optional mounting frame also allows mounting on walls or ceilings.
The robust frame made of white powder-coated (RAL 9010) aluminum corresponds to class IP52 and serves as a luminaire carrier and at the same time as a heat sink for the integrated LED circuit boards.
This ceiling light is therefore ideal for lighting in offices, meeting rooms, corridors, but also for lighting in shops, laboratories, doctors' offices, etc.
The scope of supply includes a constant current power driver with an input voltage range of 120 - 240 VAC, output voltage 45- VDC - 1,35 A.
The special feature of the CC supply is the higher efficiency as well as the integrated protection against overheating. As an option, we also supply dimmable power supplies (PWW, 0-12V, DALI.
Technical specifications:
Supply voltage: 45 VDC - 1,35 A
Power consumption: 60 Watts
Light color: 3000 K - warm white
CRI Ra> 85
Luminous flux:> 6000 lm
Sizes: 595 x 1195 x 12 mm
Weight: approx. 6,3 kg
Energy class: F - 2019
Available versions:
Optionally at surcharge this light is also available in light colors warm white (3000K), nature white (4000K), cold white (6000K) and RGB. The RGB version also requires an appropriate RGB control.
We also offer this lamp in the following special versions:
- CRI Ra> 90
- waterproof IP65 (for use in damp rooms)
- with integrated UV filter 470 nm or 520 nm for use in yellow rooms.
Scope of application:
General lighting in the dry interior, e.g. in offices, hotels, restaurants, bars, shops, laboratories, doctors' offices and many more
Wall construction, ceiling installation.
Installation:
The LED luminaire is inserted into existing grid ceilings 600 mm or by means of optional spring clamps in plasterboard or wood panel cut-outs. An optional mounting frame allows the ceiling and wall mounting of the luminaire. By means of chains or ropes, this luminaire can also be pendant mounted.
Warranty:
We offer a 5-years limited warranty on this luminaire (see warranty conditions in download area)
Synonyms:
The grid ceiling lamps are also known as: LED panel, LED flat light, ceiling panel, ceiling light, ceiling light, light panel, pan light.
Technical Data
Beschreibung | Daten / Data | Description |
Markenname | METOLIGHT | Brand name |
Modell | RDL-6012-60W | Model |
EAN-Nummer | EAN 4251192828538 | EAN-Number |
Lichtsystem | gebündeltes Licht/directional light - (DLS) / direkt an Netzspannung / operating on mains (MLS) | Light System |
Betriebsspannung | 220 - 240 V AC / 50/60 Hz | Input Voltage |
Gesamtleistung | 60 Watt* | Input Power |
Verbrauch | 60 kWh/1000h* | Consumption |
Leistungsfaktor | Pf > 0,90 | Power factor |
Dimmbar? | nein / no | Dimmable? |
Lichtquelle | LED-SMD 4014 | Light Source |
LED Marke / Typ | LED brand/model | |
Farblich abstimmbare Lichtquelle | nein - no | Colour tunable Lightsource |
Energieklasse - EU 2019/2015 | F | Energy Class EU 2019/2015 |
auf einer Skala von A bis G (wenig effizient) / on scale of A to G (less efficient) | ||
Photobiolog. Klasse | 0 | Photobiolog. Class |
Lichtwinkel | 100 - 120°* | Beam Angle |
Lichteffizienz | 110 lm/W* | Light Efficacy |
Warmweiss WW | 2800 - 3300K - 6000 lm - dominant 585 nm +/- 20 - x:0,44 / y:0,40 / u:0,25 / v:0,35* | Warm White WW |
Neutralweiß NW | 3800 - 4300K - 6400 lm - dominant 570 nm +/- 20 - x:0,38 / y:0,37 / u:0,22 / v:0,33* | Nature White NW |
Tagweiß DW | 4800 - 5500K - 6500 lm - dominant 490 nm +/- 20 - x:0,33 / y:0,35 / u:0,21 / v:0,32* | Pure White DW |
Kaltweiß CW | 5700 - 6500K - 6600 lm - dominant 500 nm +/- 20 - x:0,32 / y:0,34 / u:0,20 / v:0,32* | Cold White CW |
Hinweis Nutzlichtstrom | Der Nutzlichtstrom bezieht sich auf Messung im breiten Kegel von 110° - The useful luminous flux refers to measurement in wide cone 110 ° | Note Luminous Flux |
Farbkonsistenz | <= 6McAdams | Colour Consitency |
Lichterhalt 6000h | LMF >= 0,90* | Lumen Maintanance 6000h |
R4 | WW: 81 / NW: 83 / DW: 83 / CW: 84* | R4 |
R9 | WW: 9 / NW: 14 / DW: 6 / CW: 14* | R9 |
R15 | WW: 74 / NW: 77 / DW: 77 / CW: 77* | R15 |
CRI | CRI Ra > 80* | CRI |
LED-Lebensdauer | 30.000 h (L70B50)* | LED-Life |
Schaltzyklen (ein/aus) | > 100.000* | Switch Cycles (on/off) |
Stroboskopeffekt | SVM < 0,4* | Stroboscopic effect |
Flimmern | Pst LM < 1* | Flicker |
Blendschutz | ja - yes | Anti-glare shield |
LED-Versorgung | 40-48 VDC - 1,35 A | LED-Supply |
Verwendetes Netzteil | Marke / Typ brand / model | Built in driver |
Klassen | IP20, IK08, Iso-I | Classes |
Abmessungen | 595 x 1195 x 11 mm (L x B x H) - ( L x W x H) | Sizes |
Gewicht | 6,3 kg | Weight |
Betriebsbereich | -15°C - + 35°C – 10-90% rH | Work Conditions |
Hinweise | Nicht an elektronischen Vorschaltgeräten oder Dimmern betreiben. Irrtum und Schreibfehler vorbehalten. Technische Daten zur Produktverbesserungen können ohne Voranmeldung geändert werden. - Do not connect to electronic ballast or dimmers. Subject to errors and typing errors. Technical data for product improvements can be changed without prior notice | Notes |
* | Messdaten unterliegen den typischen Schwankungen von Serienfertigung - Measure data are subject to the typical fluctuations in series production | * |
Normen | CE-Konformität / CE-conformity nach / acc to: EN55015:2013, EN60598-1:2009, EN60598-2-2:2012, EN60968:1990, EN60969, EN61000-3-2/2006, EN61000-3-3:2013, EN 61547:2013, EN62031:2013, EN62471:2008, EN62493:2010, EN62560:2012, ErP 2009/125/EU, NRS 2014/358/EU, EMV 2014/30/EU, RoHS 2011/65/EU, 2017/1359 | Standards |
Herstellerinformationen | Asmetec GmbH - Carl-Benz-Str. 4 - 67292 Kirchheimbolanden - Germany - www.asmetec.de - info@asmetec.de - WEEE DE74399040 | Manufacturer Information |
Hinweise | Notes |
Verwendungszweck | Application |
LED-Paneleuchte zur Beleuchtung in trockenen Innenräumen | LED-panel luminaire for indoor lighting |
Besonderheiten | Specials |
Extra flache Bauweise, Anschluß an Konstanstrom-Netzteil, blendarm UGR < 18 | Extra flat, power connection CC-LED-driver, anti glare, UGR <18 |
Installation | Installation |
In trockenen Innenräumen zur Einlage in Rasterdecken oder mittels optionalen Montageclips | in dry indoor rooms laid into grid ceilings or by optional spring clamps |
Hinweise | Notes |
Wie bei allen LED-Leuchtmitteln ist auf ausreichende Luftzirkulation zu achten, damit die LED-Lampe nicht überhitzt. Die Gesamtenergieeffizienz und Lichtverteilung dieses LED-Leuchtmittels wird von der Bauart der Lichtanlage bestimmt, in der es verwendet wird. Messdaten unterliegen üblichen Toleranzen. Daten gem. Asmetec-Labor bzw. nach Werksangaben sowie. EU 2019-2015, 2010//30/EU, 2011/65/EU | As with all LED-Lights take care for sufficient air ventilation to prevent LED overheating. The total efficiency and light distribution of this LED depends on the structure of the luminaire where it is used in. Technical data subject common tolerances. Measure data acc. Asmetec Test lab or original manufacturer data and acc. EU 20109-2015, 2010//30/EU, 2011/65/EU |
Entsorgung | Waste Treatment |
LED-Leuchtmittel enthalten Wertstoffe. Bitte geben Sie die Lampen nach Gebrauch beim Wertstoffhof ab oder senden Sie sie an Asmetec zum Recycling zurück. | LED-lamps contain valuable raw materials. Please dispose them after use at the Local Court of Value Materials or return them for free disposal to Asmetec. |
Hinweis zu technischen Daten und Abbildungen | Notes for technical data and images |
Technische Daten unterliegen den üblichen Schwankungen. Sie können ohne Vorankündigung zur Produktverbesserung geändert werden. Abbildungen dienen nur zur näherungsweisen Darstellung. Die Leuchten können geringfügig abweichen. | Technical data undergow the common deviations. They may be changed without prior notice to optimise the product. Images are only similar. The real product may differ slightly from the images shown. |
Prüfberichte | Test Reports |
Individuelle Prüfberichte zu colorimetrischen, photometrischen und elektrischen, elektromagnetischen Daten erstellen wir auf Wunsch im eigenen Labor. | Individual test reports for colorimetric, photometric, electrical and electromagnetical data upon request made in own lab. |
