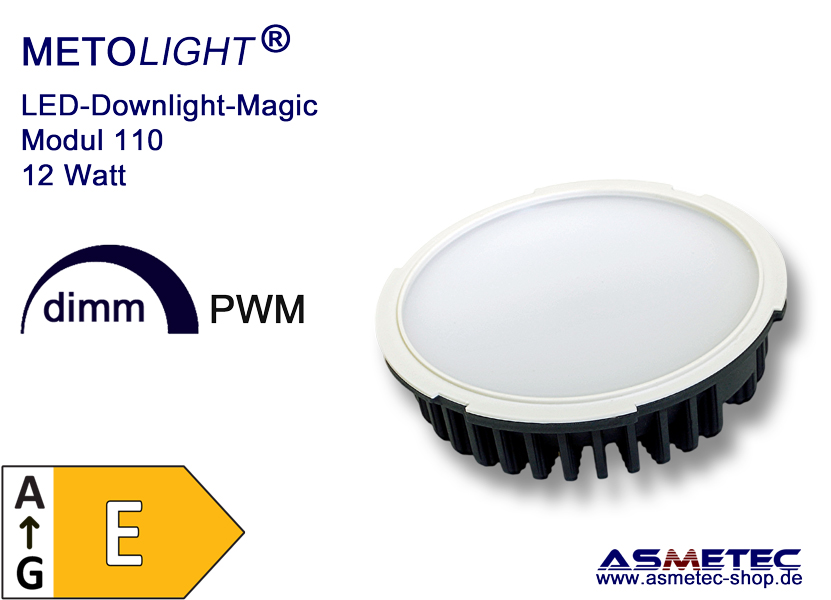

LED-Downlight Module 110 - 12W-WW, 3000K, 1100 lm

METOLIGHT LED-Downlight - Magic Module 110 - 12 Watt-WW, warm white, 1100 lm

LED module suitable for rings 145 mm and 165 mm

with PWM-dimmable constant current power supply unit

Product description:
METOLIGHT Downlight Magic LED modules with diameter 110 mm, power 12 W, light colour 3000K, warm white, 1150 lm, dimmable, IP54
This LED module can be used in luminaire rings 145 mm and 165 mm without tools. The IP protection class of the Magic modules is IP54, so that these LED downlights can also be used in humid rooms.
The modular design and the waterproof plug connection between the downlight module and LED driver enable quick and easy replacement in the event of a defect or conversion. With approx. 1100 lm this LED recessed ceiling light is almost as bright as a 100 watt incandescent lamp.
The LED modules are equipped with Samsung SMD 5630 with CRI >80, and efficiency >140 lm/W. To increase the durability, however, the LEDs are supplied with less current, so that the luminaire efficiency is 100-120 lm/W, corresponding to energy class A+ (EU 2012) E (EU 2019).

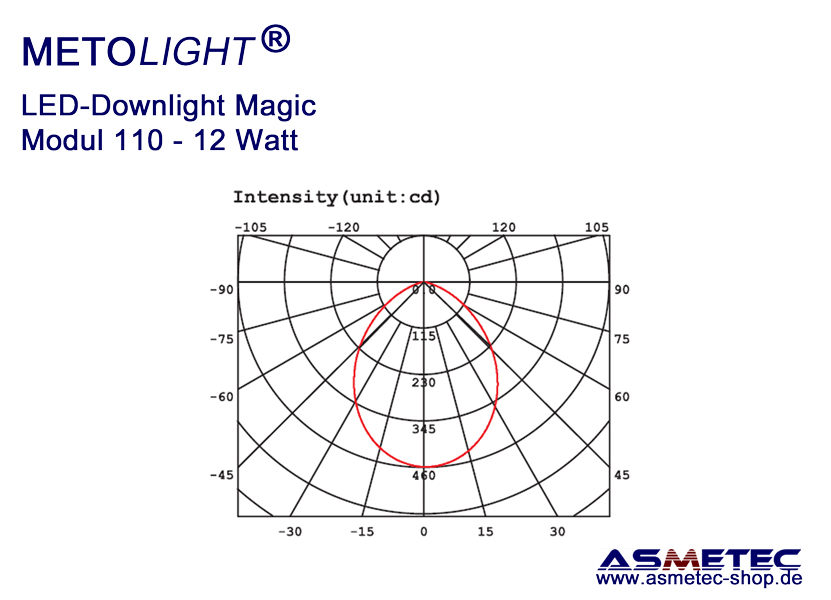

Note: The light rings are not included in the scope of delivery. They can be ordered separately in white, silver or black. The 145 mm luminaire ring can cover ceiling cut outs from 120 to 135 mm, and 165 mm ceiling cut outs from 130 to 155 mm with the luminaire ring. The light angle is approx. 140°
A PWM-dimmable constant current power supply with an input voltage range of 180 - 240 VAC, output voltage 24-46 VDC - 300 mA is included. The special feature of the CC supply is the higher efficiency and the integrated protection against overheating. Optionally, we also supply digitally dimmable power supplies (0-10V, DALI) for this luminaire at an extra charge.

Technical Data:
Input voltage module: 24-46 VDC - 300 mA
Input voltage LED driver: 180-240 VAC, 50/60 Hz
Power consumption: 12 watts (+/- 1)
Light colour: 3000 K - warm white
CRI Ra >80
Luminous flux: > 1100 lm

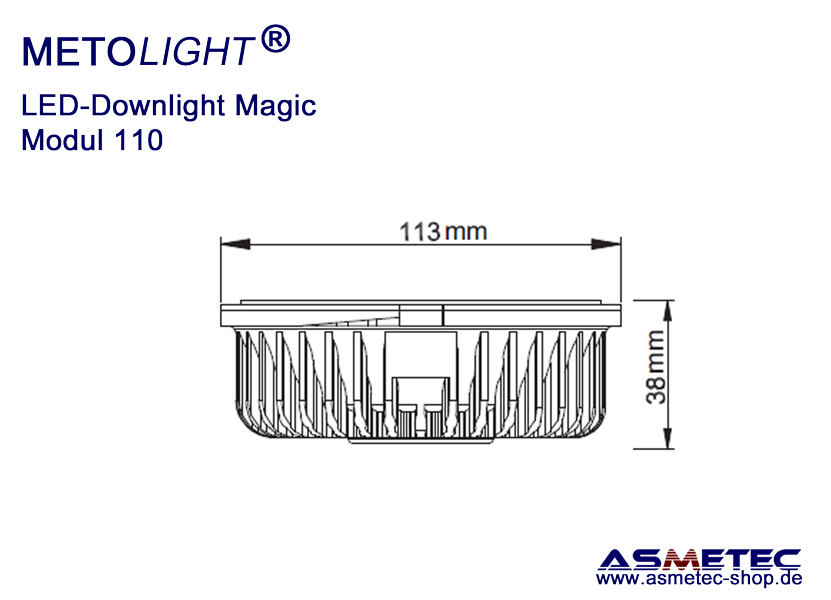

Dimensions: 113 mm diameter, 38 mm height
Suitable light rings: 145 mm / 165 mm

Available versions:
Light colours 3000K warm white, 4000K neutral white, 6000K cold white.
Wattages: 12 Watt / 15 Watt

Application:
General lighting in dry interior areas, e.g. in offices, hotels, restaurants, bars, shops, laboratories, medical practices, inhouese lighting, bathroom lighting and many other applications
Installation:
The LED luminaire is used in cavity walls or hollow ceilings using the luminaire rings to be ordered additionally. Spring terminals hold the luminaire securely in the appropriate opening.
The supplied LED drivers must be connected to the 230 V mains cable provided by a qualified electrician. One LED driver must be used per luminaire; under no circumstances may several modules be connected to only one LED driver.
This downlight can also be switched automatically via motion detector/sensor switch .

Warranty:
We offer a 3-year limited warranty on this lamp (see warranty conditions in the download area)

Synonyms:
The LED downlights are also known as: recessed ceiling lamp, LED lamp
