METOLIGHT LED compact tube 2G11-12-NWM-TRF, 12 Watt, nature white
LED compact tube with base 2G11-4pin, compatible to magnetic and electronic ballast
Asmetec TRF - True-Retro-Fit - plug & play - no need for rewiring the fixture
PL tube can be connected to 230 VAC, magnetic ballast or most of known electronicv ballasts without re-wiring the fixture.
Equipped with extra bright Epistar SMD LEDs type 2835 and built in LED-driver for direct connection to 230 V AC mains but also compatibel to most of the know magnetic and electronic ballasts. So a re-wiring of the fixture is not needed, unless the ballast is defect or overaged. In that case, simply take out the ballast and use the PL-tube connected directly to 230 VAC.
Application: in luminaires with compact tubes and base 2G11-socket
Light weighted, yet robust PMMA housing with matted shell for glare free lighting
Dimensions: 321 mm long (without pins), 43,5 mm wide, 30 mm deep, about 190 g.
Light angle 160 °, <1200 lm (nature white)
Available from stock in light colors warm white (3000K approx), neutral white (approx 4000K) and cool white (6000K)
Average LED lifetime about 30,000 hours, low heat development, even in continuous operation.
Because these compact LED tube do not radiate UV light nor infrared light it ideal for lighting in shops, because colors do not fade, products do not become brittle.
Installation:

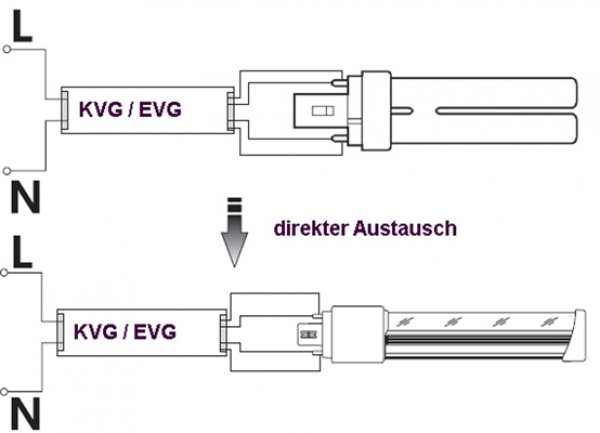

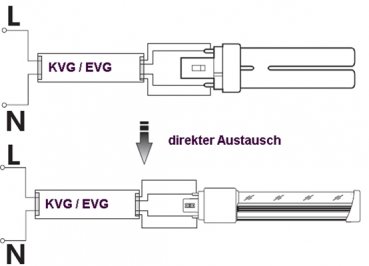

Direct connection to the 230 Volt mains or magnetic ballast or electronic ballast.
Power off luminaire before changing the PL-tube. Dimming is not possible.
Please note our technical data sheet
Warranty:
In this PL tube, we grant 2 years warranty (see warranty conditions)
| Beschreibung | Daten / Data | Description |
| Markenname | METOLIGHT | Brand name |
| Modell | LED-PL-2G11-12-TRF | Model |
| Anschlussspannung | 180 - 240 V AC | Mains Voltage |
| Betriebsspannung | 230 V AC | Input Voltage |
| Gesamtleistung | ~ 11,8 Watt | Input Power |
| Leistungsfaktor | Pf > 0,90 | Power factor |
| Dimmbar? | nein / no | Dimmable? |
| Lichtquelle | Epistar SMD 2835 | Light Source |
| Energieklasse | E | Energy Class |
| auf einer Skala von A bis G (wenig effizient) / on scale of A to G (less efficient) | ||
| Photobiolog. Klasse | 1 | Photobiolog. Class |
| Lichtwinkel | 160° | Beam Angle |
| Lichteffizienz | > 120 lm/W | Light Efficacy |
| Warmweiss | 2700 - 3000K - 1100 lm - Ra > 80 | Warm White |
| Neutralweiss | 3800 - 4200K - 1200 lm - Ra > 80 | Neutral White |
| Kaltweiss | 5800 - 6500K - 1300 lm - Ra > 80 | Cold White |
| Entspricht PL-Röhre | ~ 24 Watt | Compares to PL-Tube |
| LED-Lebensdauer | ~ 30.000 h | LED-Life |
| Schaltzyklen (ein/aus) | > 100.000 | Switch Cycles (on/off) |
| Sockel | 2G11 | Base |
| Lampenkörper | Aluminium / PMMA | Bulb Body |
| Abmessung | 321 x 43,5 x 30 mm | Sizes |
| Gewicht | 190 gr | Weight |
| Zuläss. Betriebsbedingungen | -20 ~ +40°C / 10-90% rH | Evironm. Conditions |
| EU-Richtlinien | PSG 2001/95/EG, ErP 2009/125/EU, NRS/LVD 2014/358/EU, EMV/EMC 2014/30/EU, RoHS 2011/65/EU | EU-Rules |
| CE-Konform nach | EN55015:2013, EN60598-1:2009, EN60598-2-2:2012, EN60968:1990, EN60969, EN61000-3-2/2006, EN61000-3-3:2013, EN 61547:2013, EN62031:2013, EN62471:2008, EN62493:2010, EN62560:2012 | CE-conform acc. to |
| Toleranz techn. Daten | +/- 10% | Tolerance techn. Data |
| Hinweise | Bitte beachten Sie unser technisches Datenblatt / please note our technical data sheet | Notes |
| Hinweise | Notes |
| Verwendungszweck | Application |
| LED-Kompaktröhre als Retrofit für Leuchtstoff-Kompaktlampen für allg. Beleuchtungsanwendung im Innenbereich | LED-compact tube retrofit for common PL-tubes, lighting application indoor |
| Besonderheiten | Specials |
| LED-Kompaktröhre mit breitem Lichtstrahl und integriertem Netzteil zum direkten Anschluss an das 230 Volt Netz, KVG oder EVG | LED-PL-tube with wide beam angle and internal driver for direct connection to 230 Volt mains, magnetic or electronic ballast |
| Installation | Installation |
| In Leuchten mit entsprechender Fassung. | In luminaires with suitable socket. |
| Hinweise | Notes |
| Wie bei allen LED-Leuchtmitteln ist auf ausreichende Luftzirkulation zu achten, damit die LED-Lampe nicht überhitzt. Die Gesamtenergieeffizienz und Lichtverteilung dieses LED-Leuchtmittels wird von der Bauart der Lichtanlage bestimmt, in der es verwendet wird. Messdaten unterliegen üblichen Toleranzen. Daten gem. Asmetec-Labor bzw. nach Werksangaben sowie. EU 874/2012, 2010//30/EU, 2011/65/EU | As with all LED-Lights take care for sufficient air ventilation to prevent LED overheating. The total efficiency and light distribution of this LED depends on the structure of the luminaire where it is used in. Technical data subject common tolerances. Measure data acc. Asmetec Test lab or original manufacturer data and acc. EU 874/2012, 2010//30/EU, 2011/65/EU |
| Entsorgung | Waste Treatment |
| LED-Leuchtmittel enthalten Wertstoffe. Bitte geben Sie die Lampen nach Gebrauch beim Wertstoffhof ab oder senden Sie sie an Asmetec zum Recycling zurück. | LED-lamps contain valuable raw materials. Please dispose them after use at the Local Court of Value Materials or return them for free disposal to Asmetec. |
| Prüfberichte | Test Reports |
| Individuelle Prüfberichte zu colorimetrischen, photometrischen und elektrischen, elektromagnetischen Daten erstellen wir auf Wunsch im eigenen Labor. | Individual test reports for colorimetric, photometric, electrical and electromagnetical data upon request made in own lab. |
