ESD Toe Grounder DZB-DK, velcro fastener

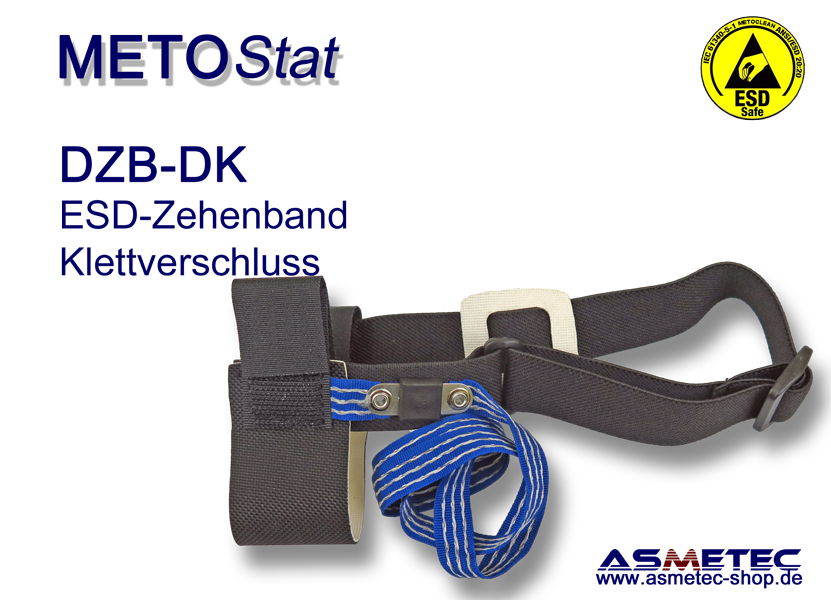

METOSTAT Toe Grounder DZB-DK

flexible toe grounder with velcro fastener

for static dissipation while wearing regular shoes

The heel grounder is designed for women's shoes, used for discharging static charges of a person wearing regular, non-dissipative street shoes. Particularly in modern shoes with insulating rubber sole person to can become statically charged when walking, so that they feel an uncomfortable electric shock when touching grounded metals like tables, doors, machines etc.
It shall be worn on both shoes.

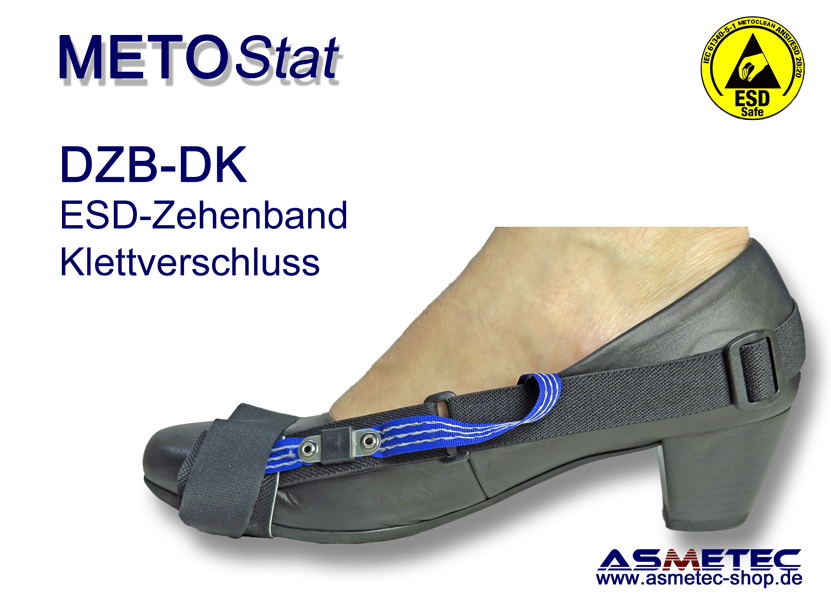

The toe grounder is pulled over the toe part of the shoes. An adjustable welcro fastener is used to secure attachment to shoes over toe and heel. The ground strap is inserted into the shoes, thus ensuring personal grounding.
The toe grounder meets the requirements of EN 61340-5-1.

Data:
Fabric: PE mix with silver threads
welcro fastener
No protection resistor
Weight: 30 g
Elasticity: 10,000 cycles with 170%
Color: grey / black
Resistance to the grounding point Rg: (unworn): <200 Ohm (worn on foot): 1 - 3 megohms
