ESD shelf mat ESM 1450-061
ESD shelf mat ESM 1450-061, 10 m long, 61 cm wide
ESD shelf mat ESM 1450-061

ESD shelf mat ESM 1450-061, 10 m long, 61 cm wide

Product No.:
Asmetec 100422
about 3 - 4 Weeks about 3 - 4 Weeks  (abroad may vary)
ask for quotation

Add to wish list
Ask about product
Description

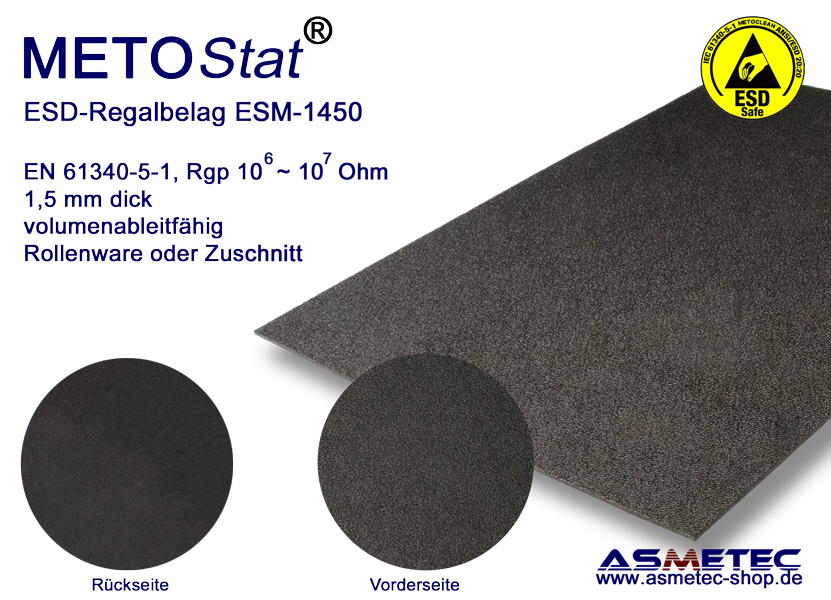

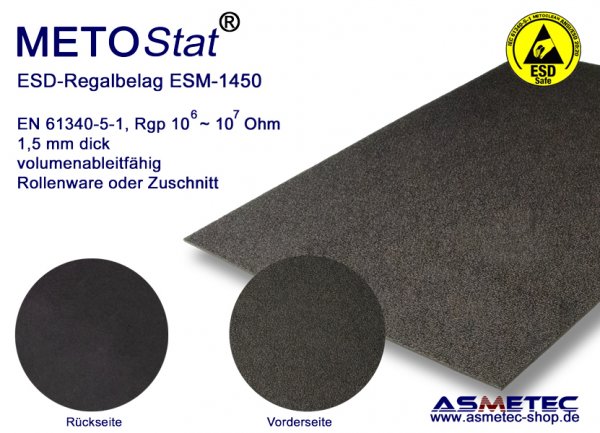

ESD shelf mat ESM-1450-061, black

Duo-layer antistatic shelf covering mat, delivered as roll of 10m length


This ESD shelf mat is made of a duo-layer synthetic rubber, 1.5 mm thick, volume-dissipative.
The smooth back of the mat has a surface resistance of 103 to 104 ohms, the structured top side has a surface resistance of 106 to 107 ohms.
Scope of application:
Shelf mat for covering shelves or transport trolleys, but also suitable as a table mat for workplaces in the electronics, circuit board, assembly, repair area, optics, clean room and ESD areas.


Grounding:
Stick the self-adhesive aluminum tape (article Asmetec 101334, roll 50 mm x 50 m long) in a grid format approx. 25 x 25 cm to the subsurface of the area to be covered and connect it to an earthing point.
The weight of the shelf mat creates an electrical connection between the conductive mat and the aluminum strip.
The aluminum tape can then be placed in a suitable location, e.g. earthed to protective earth (PE)

Technical specifications ESM 1450-061:
Width: 61 cm
Length: 10 m
Thickness: 1,5 mm
Color: black
Surface resistance top, Rgp: 106 to 107 Ohm
Surface resistance bottom, Rgp: 103 to 104 Ohm


Further options:
We offer this shelf mat also in width 61 cm and 122 cm

Mats cuts to size and roll off cuts upon request


Breite061Laenge1000Dicke15Rp103Rp106EN61340ESD-50

Technical Data
Technical Datatable class="table tbl_3-zeilig table-striped table-bordered table-hover"> Beschreibung Daten / Data Description Markenname METOSTAT Brand name Modell ESM-1450 Model Komposition Duo Layer Spezialkautschuk / 2 layer special rubber Composition Dicke 1,5 mm Thickness Spez. Flächengewicht 1,4 g / ccm spec. surface weight Breite 40 / 61 / 122 cm Width Länge 10 m Length Oberflächenwiderstand oben 10^6 ~ 10^7 Ohm - ASTM D257 Surface Resistance top Oberflächenwiderstand unten 10^3 10^4 Ohm - ASTM D491 Surface Resistance bottom Statische Ableitung < 0,01 s - EIA 541 Static Decay Entspricht EN 61340-5-1 Complies Shorhärte oben Shore A 80 +/- 5% - ASTM D2240 Shore hardness top Shorhärte unten Shore A 780+/- 5% - ASTM D2240 Shore hardness bottom Wärmefest beständig gegen Lötspritzer, < 120°C, reststat to solder splash Heat Resistance Widerstandsfähig gegen vielen Säuren, Ölen, Fetten, Lösemitteln - acids, oil, grease, solvents Resistant to Toleranz techn. Daten +/- 10% Tolerance techn. Data Hinweis Lieferbar als Rollenware, Rollenabschnittm, Zuschnitt in verschiedenen Farben und Breiten - Available as roll ware, roll cut off, cut to size in various colours and widths Notes
