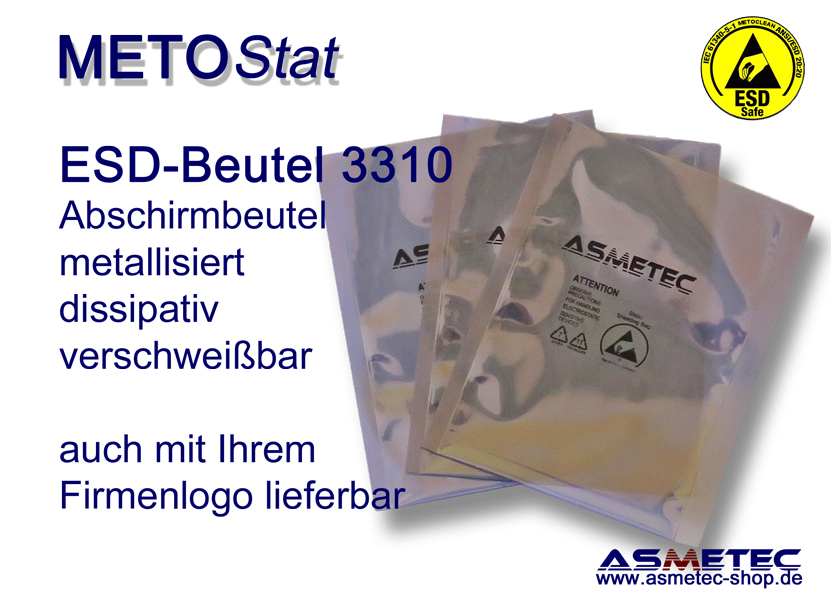

ESD Shielding bag 3310, 305 x 406 mm, 100 bags per package

METOSTAT ESD bag 3310, 305 x 406 mm, 100 bags

ESD shielding bag, polyester, metallized, sealable

Metallized ESD packing bag made of polyester / polyethylene.

The inner layer is made of conductive polyethylene, the outer layer of aluminum-coated dissipative polyester, total thickness 77 microns. The bags can be sealed by welding press.
This very stable, tear-proof shielding bags are used in the electronics and assembly industry for the packaging of printed circuit boards, electrical components and other parts.
We supply these ESD packing bags in different sizes in sale units of 100 bags.
By default, the bags are printed with our name, ESD-signs and instructions.
On request, we can also print the bags with your company logo and other customizations print (minimum quantity 10.000 bag).
Customised sizes according your request can be manufactured short timed.

The ESD bag in accordance with the RoHS Directive, are free of heavy metals such as cadmium, lead, mercury, chromium IV, etc.
The ESD bag comply with the requirements of EN 61340-5-1

Note:
same shielding bags are available as version 3320 with a built in zipper, recloseable


Technical specifications:
Inner sizes: 305 x 406 mm
Thickness about 77 microns
Tensile strength: 42 MPa
Metal layer 100 Angstgroem
Light transmittance: about 40%
Surface resistance R_s 1 x 10⁹ ~ 1 x 10¹⁰ ohms

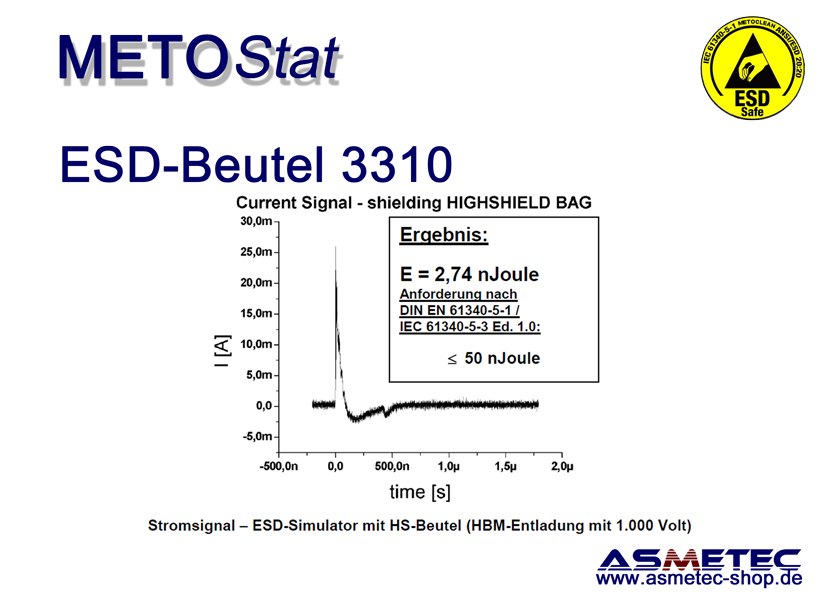

Protection: <10 nJ
Sales unit: 100 bags
