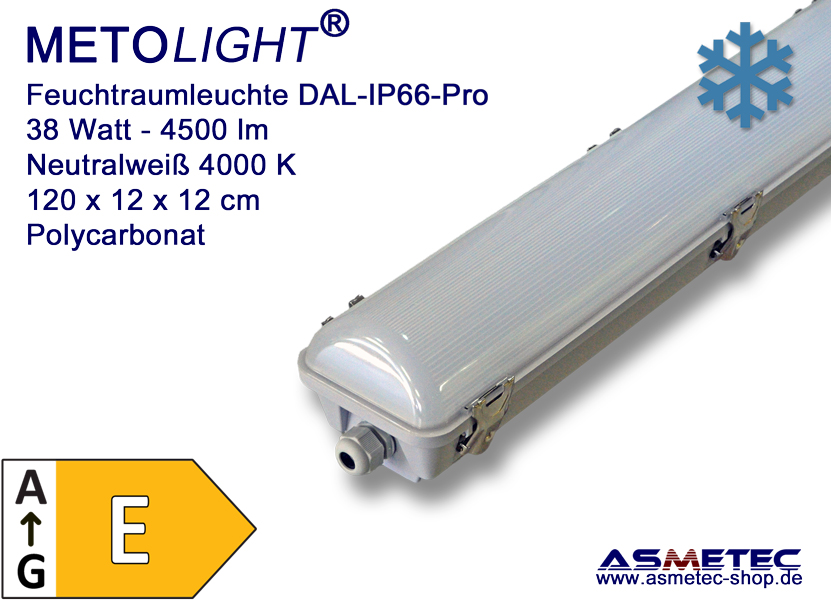

Tri-Proof Light DAL-IP66-120-Pro, 38 Watt 4500 lm
METOLIGHT Tri-Proof LED fixture DAL-IP66-120-Pro, 38 Watt
Compact LED luminaire with matt diffuser
The METOLIGHT® Tri-Proof LED fixtures series DAL-IP66-Pro are designed for use in damp rooms, basements, garages, autowash systems, but also in refrigerator- and freezer rooms. The housing is made of impact-resistant polycarbonate and corresponds to the classes IP66 / IK08. The semi-transparent prism diffuser made of polycarbonate distributes the light to approx. 160 °.
The aluminum core circuit board is equipped with high-performance SMD LEDs with an efficiency of 120 lm / W at CRI Ra> 80, corresponding to the energy class A + (EU 2012) E (EU 2019).
The DAL-IP66-060-Pro luminaire with a length of 116 cm corresponds to the brightness of a conventional Tri-Proof fixture equipped with 2 x 36 Watt fluorescent tubes, but saves more than 50% of energy (considering the ballast) at about 10 times the shelf life. The integrated power supply of brand Philips is designed for input voltages between 220 - 240 V AC 50/60 Hz for long-lasting, low-maintenance operation up to approx. 50,000 hours (L70B50).

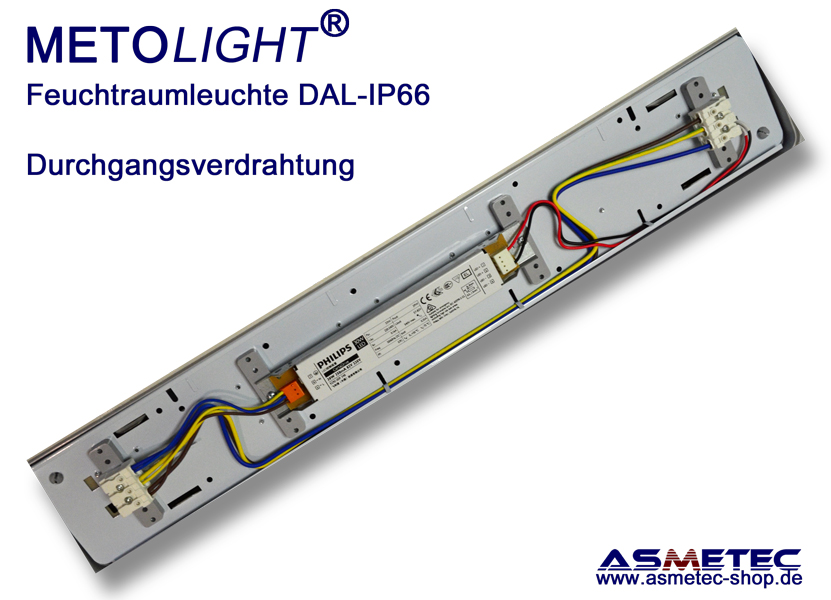

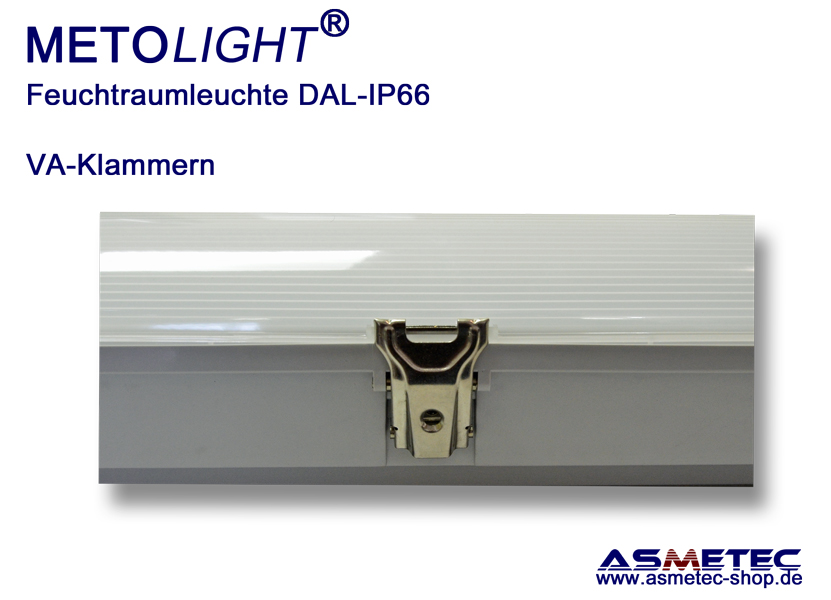

The mounting clips for the diffuser and the mounting brackets for the luminaire are made of stainless steel. The inner wiring is made with 3 x 1.5 mm² as through wiring with 3-pin plug-in terminals for fast assembly. Thus, many luminaires can be connected to the series in a short time.
Optionally, this luminaire can also be supplied with an emergency module for 3 hours emergency lighting as well as with DALI dimmable power supply.
This LED light does not emit UV light. Plastics therefore do not brittle, insects are less attracted by the light.
The DAL-IP66-Pro range is available in lengths of 060 cm - 23 Watt, 120 cm - 38 Watt and 150 cm - 58 Watt, standard in light color 4000K, CRI Ra> 83. The efficiency of the LEDs is 120 lm / W .
Other light colors, as well as clear PMMA cover are available on request.
IES data files for light calculation in Dialux or Relux are available upon request.
Technical Data
| Beschreibung | Daten / Data | Description |
| Markenname | METOLIGHT | Brand name |
| Modell | DAL-IP66-120-Pro | Model |
| Betriebsspannung | 220 - 240 V AC / 50/60 Hz | Input Voltage |
| Gesamtleistung | 38 Watt | Input Power |
| Leistungsfaktor | Pf > 0,90 | Power factor |
| Dimmbar? | nein / no | Dimmable? |
| Lichtquelle | 120 x LED-SMD 2835 | Light Source |

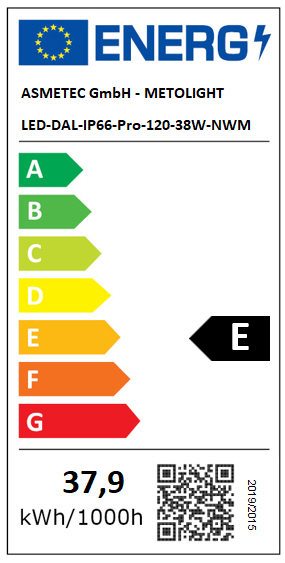

| Energieklasse | E | Energy Class |
| auf einer Skala von A bis G (wenig effizient) / on scale of A to G (less efficient) | ||
| Photobiolog. Klasse | 1 | Photobiolog. Class |
| Lichtwinkel | 120 - 160° | Beam Angle |
| Lichteffizienz | 120 lm/W | Light Efficacy |
| Warmweiss | 2800 - 3300K - 4300 lm | Warm White |
| Neutralweiß | 3800 - 4300K - 4500 lm | Nature White |
| Kaltweiß | 5500 - 6500K - 4800 lm | Cold White |
| CRI | CRI Ra > 80 | CRI |
| LED-Lebensdauer | 50.000 h (L70B50) | LED-Life |
| Schaltzyklen (ein/aus) | > 100.000 | Switch Cycles (on/off) |
| LED-Versorgung | 82 VDC - 300 mA | LED-Supply |
| Klassen | IP66, IK08, Iso-I | Classes |
| Abmessungen | 1160 x 120 x 108 mm (H x B x T ( H x W x D) | Sizes |
| Gewicht | 2,35 kg | Weight |
| Betriebsbereich | -15°C - + 35°C – 10-90% rH | Work Conditions |
| Hinweise | Nicht an elektronischen Vorschaltgeräten oder Dimmern betreiben. - Do not connect to electronic ballast or dimmers. | Notes |
| Normen | CE-Konformität / CE-conformity nach / acc to: EN55015:2013, EN60598-1:2009, EN60598-2-2:2012, EN60968:1990, EN60969, EN61000-3-2/2006, EN61000-3-3:2013, EN 61547:2013, EN62031:2013, EN62471:2008, EN62493:2010, EN62560:2012, ErP 2009/125/EU, NRS 2014/358/EU, EMV 2014/30/EU, RoHS 2011/65/EU | Standards |
| Hinweise | Notes |
| Verwendungszweck | Application |
| LED-Wannenleuchte für allg. industrielle Beleuchtungsanwendung im Innen- und Außenbereich | LED-Tri-Proof Light for common lighting application indoor and outdoor |
| Besonderheiten | Specials |
| LED-Wannenleuchte, IP66, IK08, bruchfestes PC-Gehäuse, integriertes Konstantstromnetzteil, kurzschlußfest | LED-luminaire in robust PC housing IP66, IK08, integrated constant current driver, short break protected |
| Installation | Installation |
| Decken-, Wandmontage, Feuchtraum-geeignet, auch im geschützten Aussenbeich | Ceiling- wall mounting, moisture area, also protected outdoor area |
| Hinweise | Notes |
| Wie bei allen LED-Leuchtmitteln ist auf ausreichende Luftzirkulation zu achten, damit die LED-Lampe nicht überhitzt. Die Gesamtenergieeffizienz und Lichtverteilung dieses LED-Leuchtmittels wird von der Bauart der Lichtanlage bestimmt, in der es verwendet wird. Messdaten unterliegen üblichen Toleranzen. Daten gem. Asmetec-Labor bzw. nach Werksangaben sowie. EU 874/2012, 2010//30/EU, 2011/65/EU | As with all LED-Lights take care for sufficient air ventilation to prevent LED overheating. The total efficiency and light distribution of this LED depends on the structure of the luminaire where it is used in. Technical data subject common tolerances. Measure data acc. Asmetec Test lab or original manufacturer data and acc. EU 874/2012, 2010//30/EU, 2011/65/EU |
| Entsorgung | Waste Treatment |
| LED-Leuchtmittel enthalten Wertstoffe. Bitte geben Sie die Lampen nach Gebrauch beim Wertstoffhof ab oder senden Sie sie an Asmetec zum Recycling zurück. | LED-lamps contain valuable raw materials. Please dispose them after use at the Local Court of Value Materials or return them for free disposal to Asmetec. |
| Hinweis zu den technischen Daten | Technica Data Notes |
| Technische Daten unterliegen den üblichen Schwankungen. Sie können ohne Vorankündigung zur Produktverbesserung geändert werden. Produktabbildungen dienen nur zur näherungsweisen Darstellung. Die Produkte können im Aussehen leicht abweichen. | Technical data subject to the usual deviations. They may be modified for improvement without prior notice. Images are only for the approximate representation. Products may differ slightly. |
| Prüfberichte | Test Reports |
| Individuelle Prüfberichte zu colorimetrischen, photometrischen und elektrischen, elektromagnetischen Daten erstellen wir auf Wunsch im eigenen Labor. | Individual test reports for colorimetric, photometric, electrical and electromagnetical data upon request made in own lab. |
