Linear batten Light BAT-CCT-150, 150 cm, 60 Watt, adjustable light colour
METOLIGHT LED linear light LIN-BAT-CCT-150 - 150 cm - 60 Watt
LED linear luminaire with adjustable light color
Newly developed LED linear luminaire equipped with Epistar SMD 2535 with a luminous flux of 125 lm/W and adjustable light color warm white / day white / cool white.The light color is easily selected via a slide switch. The luminaire efficiency corresponds to energy class D. Compared to a 150 cm fluorescent lamp, this linear lamp is more than twice as bright.
The aluminium and PMMA housing complies with protection class IP42 / IK08.
This linear luminaire is ideal for workplace lighting or for lighting in corridors, offices, shops, basements and also in splash-proof areas of kitchens and baths/toilets. It provides flicker-free light with high colour quality (CRI Ra>80).
Optionally, this luminaire can also be equipped with an integrated motion sensor so that the luminaire switches itself on and off automatically.
The matt PMMA cover is break-proof and distributes the light at an angle of approx. 120°. The integrated constant voltage power supply has a wide connection range of 180 to 240 VAC.
Installation is very simple using the metal clips supplied, which are fastened to the wall or ceiling with screws and dowels. The electrical installation must be carried out by a qualified electrician in compliance with the general safety regulations for handling electricity. Do not connect to dimmers!
Technical data:
Power consumption: 60 watts
Luminous flux approx. 7200 lm
Light colours: 3000K / 4500K / 6500K adjustable via slide switch
Housing: Aluminium / PMMA, IP42
Dimensions:
Length: 1490 mm
Width 80 mm
Height: 36 mm
Weight: 1,10 kg
Scope of delivery: with the LED linear light we supply fixing material such as retaining clips, screws, dowels
Options:
- This light is also available in these versions: fixed light color 3000K / 4000K / 5000K / 6000K (minimum order quantity per 5 pieces)
- with motion sensor
- 60 cm (20W) or 120cm (40W)
Synonyms: This luminaire is also referred to as : linear light, LED light, batten light,
Technical Data
| Beschreibung | Daten / Data | Description |
| Markenname | METOLIGHT | Brand name |
| Modell | LED-LIN-BAT-CCT-150 | Model |
| EAN | EAN 4251192836830 | EAN |
| Betriebsspannung | 180 - 240 V AC / 50/60 Hz | Input Voltage |
| Gesamtleistung | 60 Watt | Input Power |
| Leistungsfaktor | Pf > 0,93 | Power factor |
| Dimmbar? | nein / no | Dimmable? |
| Lichtquelle | 432 x LED-SMD 2835 | Light Source |
| Lichtstrom | 7200 lm +/-10% | Light Power |

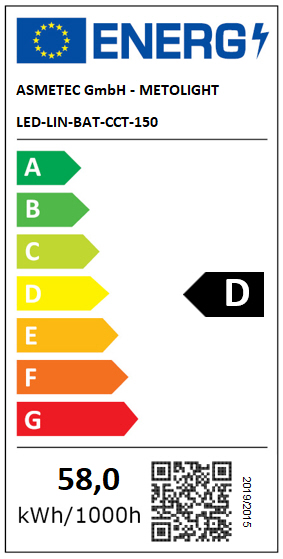

| Energieklasse | D | Energy Class |
| auf einer Skala von A bis G (wenig effizient) / on scale of A to G (less efficient) | ||
| Photobiolog. Klasse | 1 | Photobiolog. Class |
| Lichtwinkel | 120° | Beam Angle |
| Lichteffizienz | 125 lm/W | Light Efficacy |
| Lichtfarbe | 3000K / 4500K / 6500K einstellbar / adjustable | Light Colour |
| CRI | CRI Ra > 80 | CRI |
| LED-Lebensdauer | 30.000 h | LED-Life |
| Schaltzyklen (ein/aus) | > 100.000 | Switch Cycles (on/off) |
| LED-Versorgung | Konstantstrom / constant current | LED-Supply |
| Klassen | IP42, IK8, Iso-I | Classes |
| Abmessungen | 1449 x 80 x 36 mm (H x B x H) | Sizes |
| Gewicht | 1,10 kg | Weight |
| Betriebsbereich | -20°C - + 40°C – 10-80% rH | Work Conditions |
| Hinweise | Nicht an elektronischen Vorschaltgeräten oder Dimmern betreiben. - Do not connect to electronic ballast or dimmers. | Notes |
| Normen | CE-Konformität / CE-conformity nach / acc to: EN55015:2013, EN60598-1:2009, EN60598-2-2:2012, EN60968:1990, EN60969, EN61000-3-2/2006, EN61000-3-3:2013, EN 61547:2013, EN62031:2013, EN62471:2008, EN62493:2010, EN62560:2012, ErP 2009/125/EU, NRS 2014/358/EU, EMV 2014/30/EU, RoHS 2011/65/EU | Standards |
| Hinweise | Notes |
| Verwendungszweck | Application |
| LED-Linearleuchte zur Beleuchtung in trockenen Innenräumen | LED-linear luminaire for indoor lighting |
| Besonderheiten | Specials |
| Einstellbare Lichtfarbe, optional mit Sensorschalter | Switcheable light colour, optionally motion sensor |
| Installation | Installation |
| In trockenen Innenräumen mittels Montageclips und beiliegendem Anschlußkabel | With mounting clips and cables provided with each luminaire, only for dry indoor rooms |
| Hinweise | Notes |
| Wie bei allen LED-Leuchtmitteln ist auf ausreichende Luftzirkulation zu achten, damit die LED-Lampe nicht überhitzt. Die Gesamtenergieeffizienz und Lichtverteilung dieses LED-Leuchtmittels wird von der Bauart der Lichtanlage bestimmt, in der es verwendet wird. Messdaten unterliegen üblichen Toleranzen. Daten gem. Asmetec-Labor bzw. nach Werksangaben sowie. EU 874/2012, 2010//30/EU, 2011/65/EU | As with all LED-Lights take care for sufficient air ventilation to prevent LED overheating. The total efficiency and light distribution of this LED depends on the structure of the luminaire where it is used in. Technical data subject common tolerances. Measure data acc. Asmetec Test lab or original manufacturer data and acc. EU 874/2012, 2010//30/EU, 2011/65/EU |
| Entsorgung | Waste Treatment |
| LED-Leuchtmittel enthalten Wertstoffe. Bitte geben Sie die Lampen nach Gebrauch beim Wertstoffhof ab oder senden Sie sie an Asmetec zum Recycling zurück. | LED-lamps contain valuable raw materials. Please dispose them after use at the Local Court of Value Materials or return them for free disposal to Asmetec. |
| Prüfberichte | Test Reports |
| Individuelle Prüfberichte zu colorimetrischen, photometrischen und elektrischen, elektromagnetischen Daten erstellen wir auf Wunsch im eigenen Labor. | Individual test reports for colorimetric, photometric, electrical and electromagnetical data upon request made in own lab. |
